Page 144
STAT
IM
2000/2000S Service Guide
96-108639 Rev 3.0
7. Electrical and Electronic Components
c. For all boards Rev. 7.x onwards —
t Unplug the thermocouple connectors (6). There are three for non S (‘boiler’, ‘chamber’
and ‘validation’) and two for S class (‘boiler’ and ‘chamber’).
t Unplug the float connector (7) on units where the water quality and float reservoirs
are fitted.

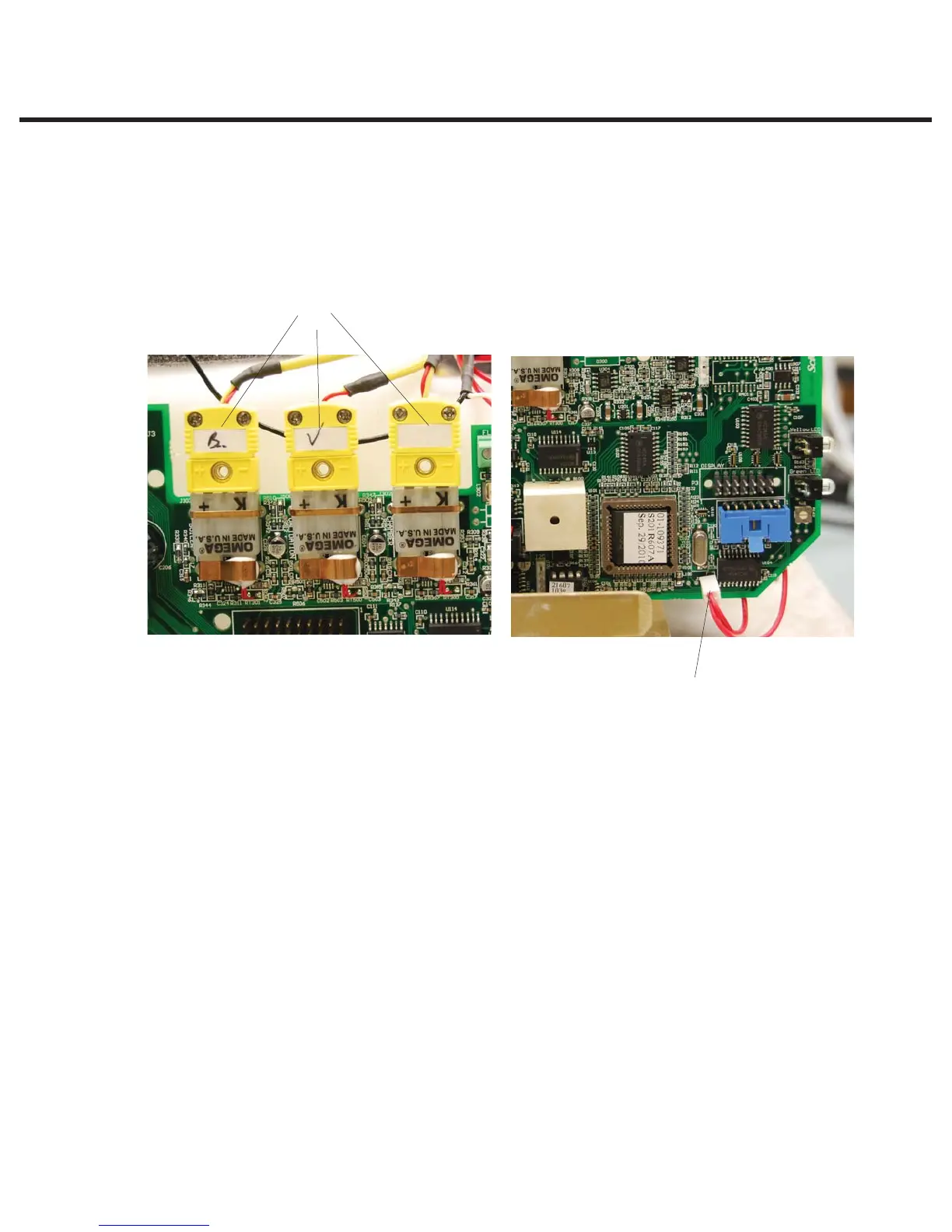

Figure 5 Figure 6
7
6
6. Thermocouple connectors
7. Float connector
STATIM 2000/2000S/2000 G4 Service Guide
