2000/2000S Service Guide
96-108639 Rev 3.0
2. Tools, Maintenance Schedules, Procedures and Testing

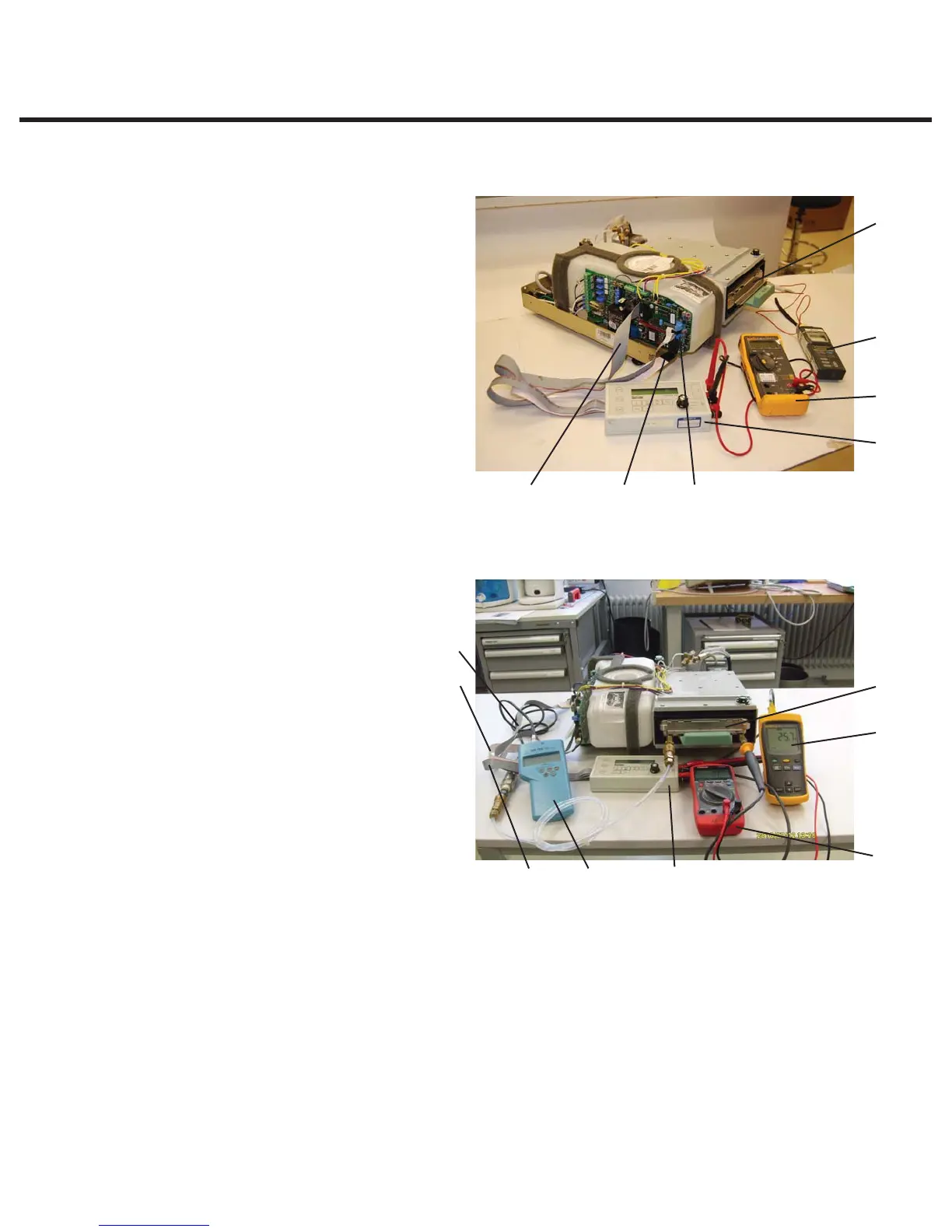

Sample equipment set up for calibration of a non-S unit
1. Calibration cassette with detachable
thermocouple
2. Digital voltmeter
3. Digital thermometer
4. (no pressure meter required)
5. Control box
6. 2x7 ribbon cable, LCD connector
(connect to Controller Board header
P3)
7. 1x7 cable, keypad connector
(connect to Controller Board header
P4)
8. 2x10 molded socket, test connector
(connect to Controller Board header
P1)
Sample equipment set up for calibration of S unit
1. Calibration cassette.
2. Digital voltmeter
3. Digital reference thermometer
with thermocouple. (Fluke 51
with 80PK-26 probe shown)
4. Digital reference pressure meter
(S only) (Druck DPI 750 R shown)
5. Control box
6. LCD connector cable (connect
to Controller Board header P3)
7. Keypad connector cable (connect
to Controller Board header P4)
8. Test connector cable (connect to
Controller Board leader P1)
NOTE: The following section describes in greater detail the equipment depicted in Figures 1
and 2.
Figure 2
Figure 1
1
1
3
2
6
8
7
45
3
2
5
876
