2. Tools, Maintenance Schedules, Procedures and Testing
STATIM 2000/2000S/2000 G4 Service Guide

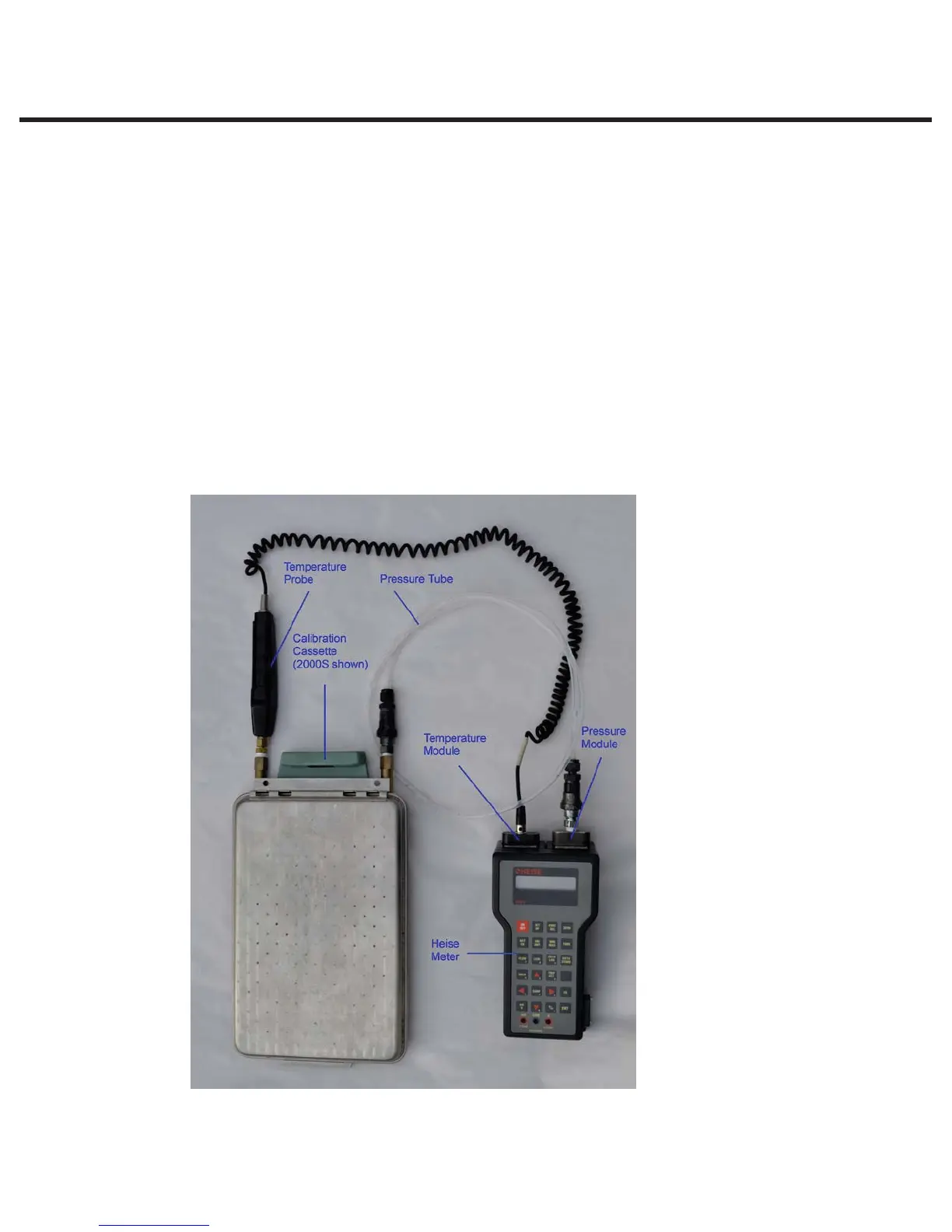

Figure 6
Combined Temperature and Pressure Meter
t Heise PTE-1 Handheld LCD digital calibrator complete with temperature and pressure
modules, and PT100 probe as follows:
Meter (without data logging capabilities) — PTEC = X X 4 4A
Pressure Module — HQS2 B A A 400 kPa A
Temperature Module — HQS RT1 PT-100
RTD Probe Pt-100 — PT5
Notes:
t These product references are very specific, and the local supplier of Heise equipment
(see www.heise.com) should be consulted prior to confirming order codes.
t The meter above is of the non data logging variety. If data logging is required, please
consult order code variations from Heise data sheet.
t The above probe is 3.2mm (1/8in) diameter.
