Page 208
STAT
IM
2000/2000S Service Guide
96-108639 Rev 3.0

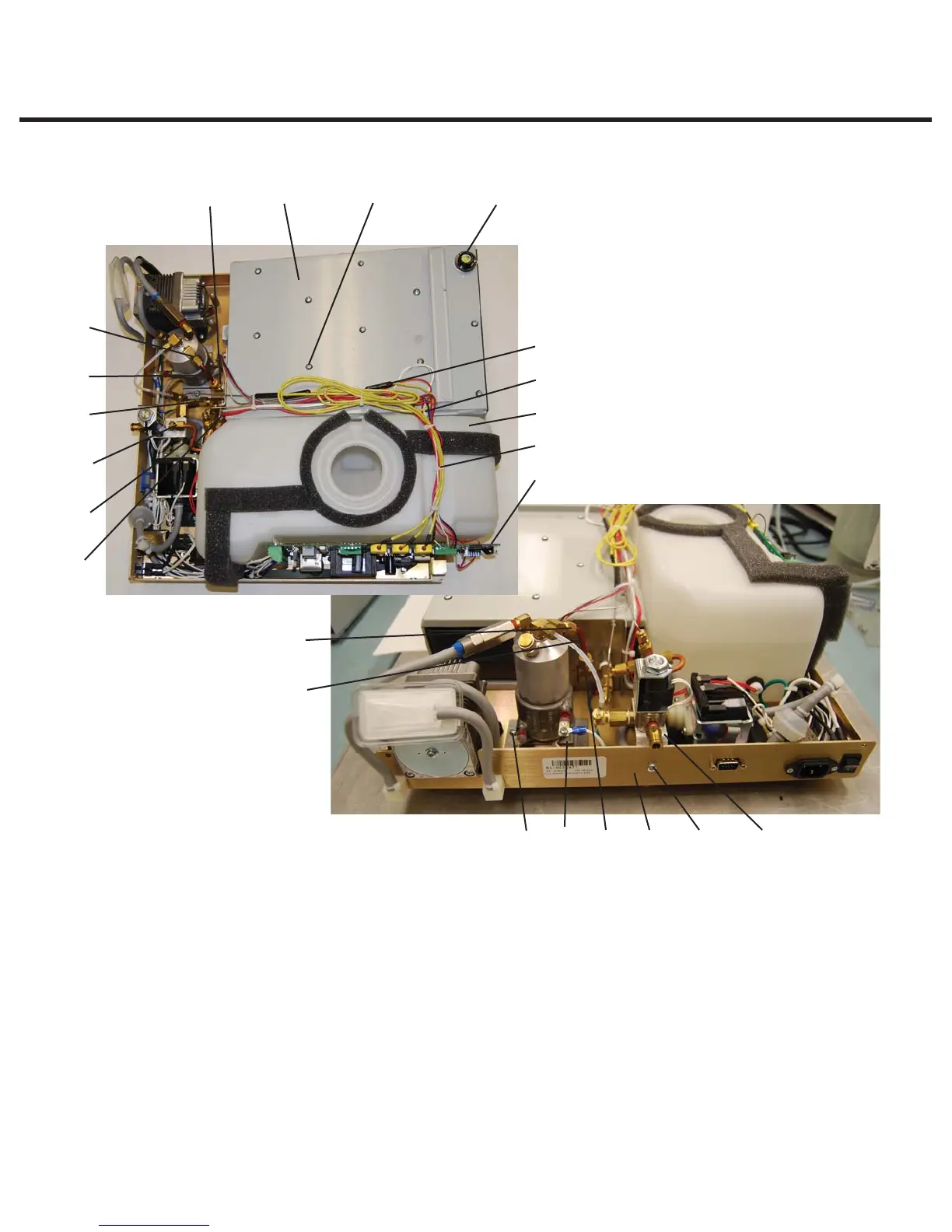

10. Armature, Isoplate, and Probe Bracket and Chamber Thermocouple
19
8
9
16
14
15
6
8
9
11 12 10 13 17 18
120 23
7
3
2
5
4
1. Armature
2. Reservoir
3. Cable ties
4. Thermocouple leads
5. Microswitch leads
6. Reservoir sensor leads
7. Controller board
8. Compression nut for steam
generator outlet tube
9. Steam generator outlet tube
10. Inlet probe fitting
11. Screws
12. Steam generator bracket
assembly
13. Chassis
14. Compression nut for exhaust
tube
15. Exhaust tube
16. Outlet probe fitting
17. Screws
18. Solenoid valve bracket
assembly
19. Probe bracket assembly
20. Isoplate screws
21. Ground strap (not shown)
22. Cap screws with spring
lockwashers (located on
bottom of chassis)
23. Bubble level
Figure 1
STATIM 2000/2000S/2000 G4 Service Guide
