STAT IM 2000/2000S Service Guide
96-108639 Rev 3.0

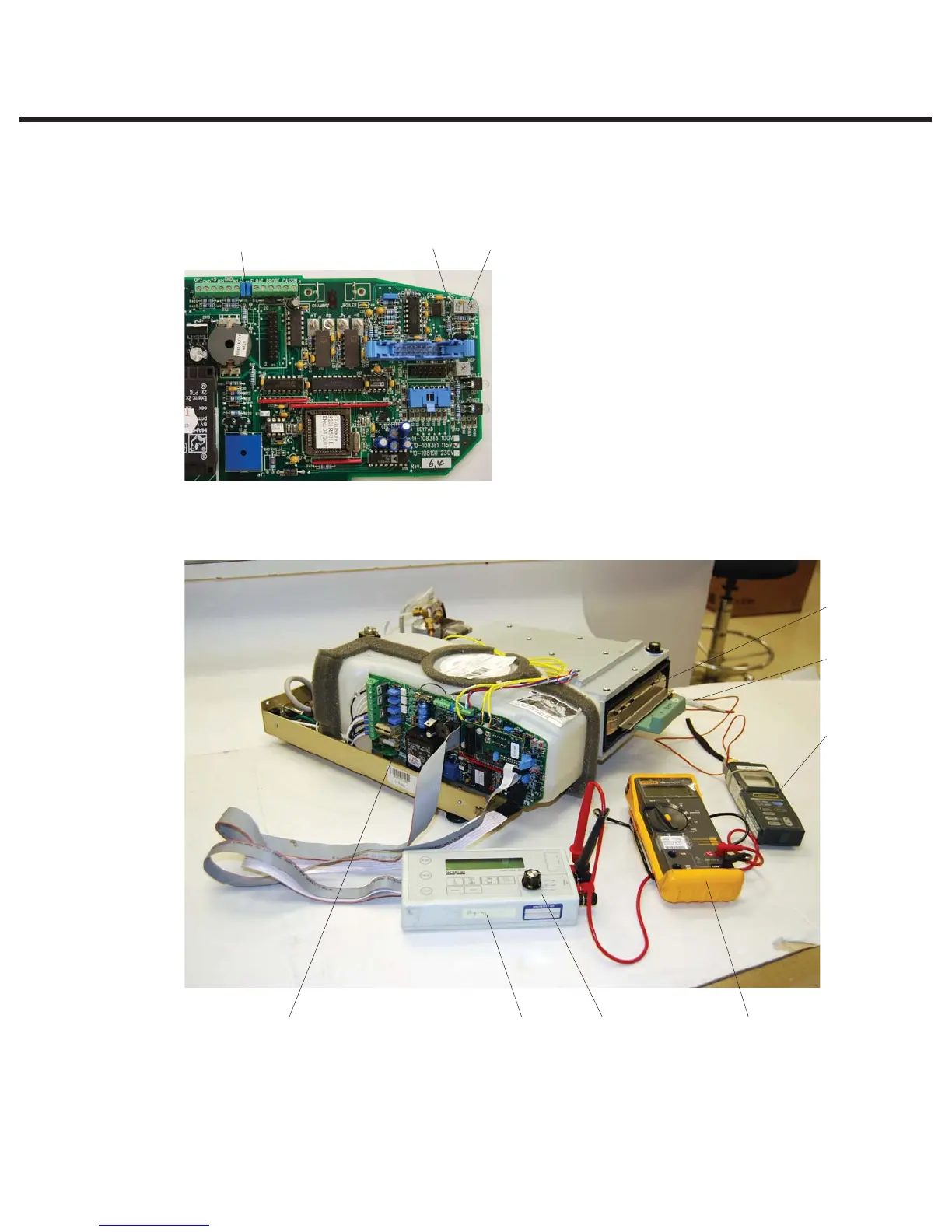

4. STAT IM 2000 Calibration
1. Control box
2. Controller board
3. SELECT knob
4. Digital voltmeter
5. VREF potentiometer
6. Calibration cassette
7. Thermocouple
8. Digital thermometer
9. TC-ADJ potentiometer
10. Calibration jumper connection
11. Calibration jumper (not shown)
Figure 2
(Note: STATIM 2000 shown)
5910
STATIM 2000/2000S/2000 G4 Service Guide
1234
6
7
8
