STAT IM 2000/2000S Service Guide
96-108639 Rev 3.0

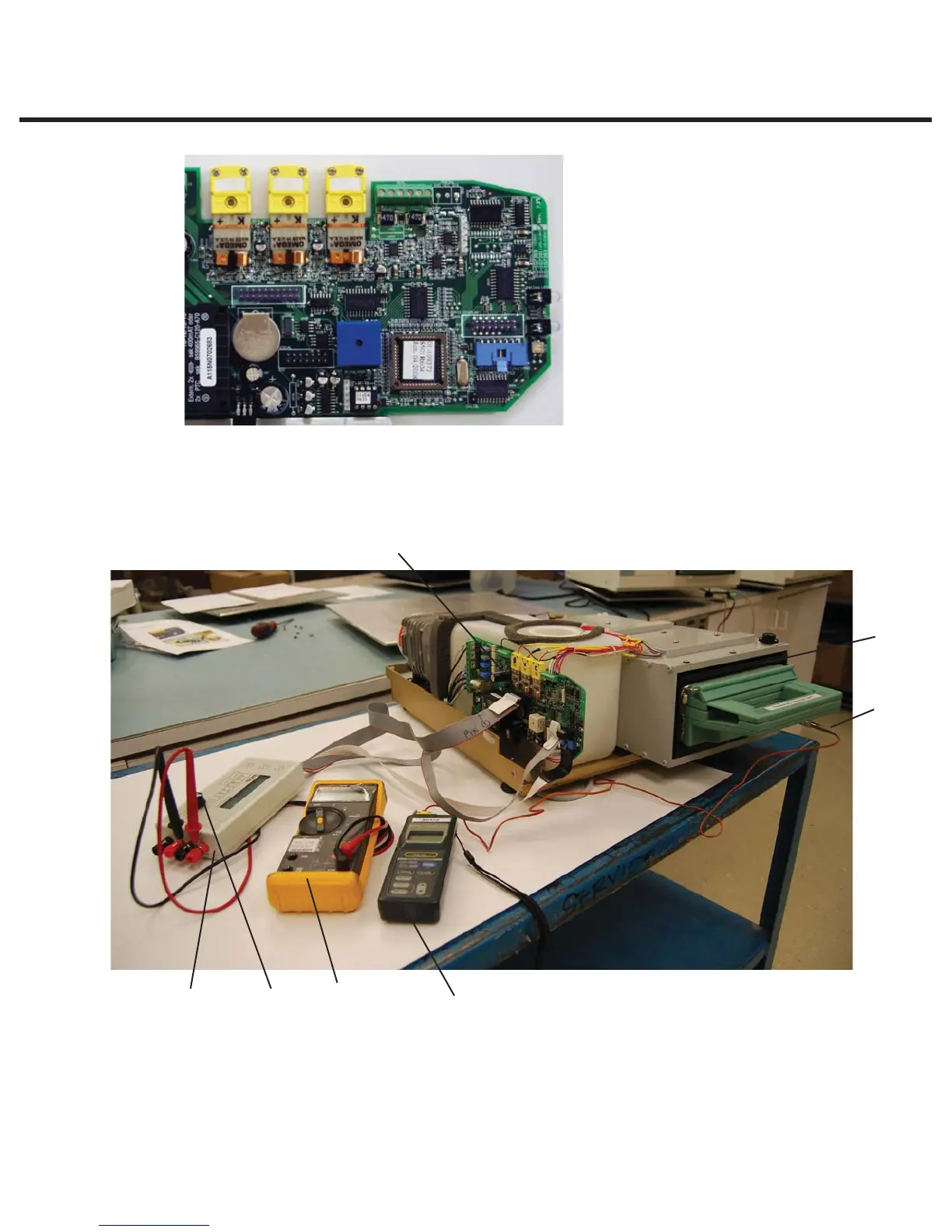

4. STAT IM 2000 Calibration
1. Control box
2. Controller board
3. SELECT knob
4. Digital voltmeter
5. Calibration cassette
6. Thermocouple
7. Digital thermometer
Figure 3
1
2
3
4
5
6
7
STATIM 2000/2000S/2000 G4 Service Guide
NOTE:
The cover MAY be removed and the control box attached if deemed appropriate, but the
unit can be calibrated with the cover on as all adjustments to the calibration offsets are undertaken
using the keypad on the unit.
(Note:
STATIM 5000 shown)
