SICK microScan3 Pro I/O User Manual

Approach
Y
ou have the following options:
b
Double-click on the Device tile.
Or:
b
Open t
he tile menu and choose Configure.
✓
The device window opens.
Complementary information
W
hen a device is configured offline for the first time, the device selection assistant
opens. This is where you select the type of device to be configured.
7.2.7 Networking
Information on the functionality and basic operation of the software and on the settings in the main window can
be f
ound in the operating instructions of the Safety Designer (part number 8018178).
7.3 Overview

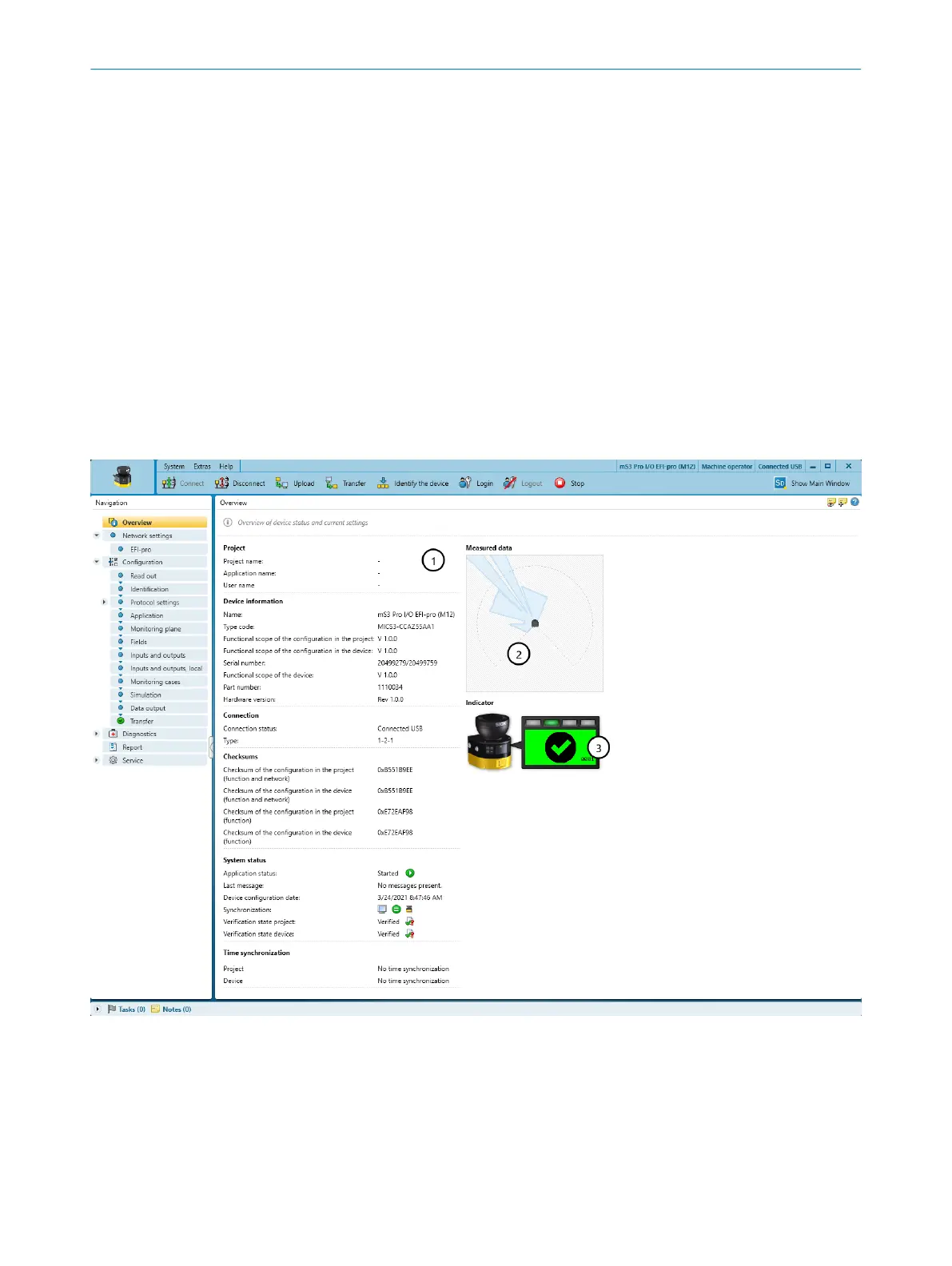

Figure 64: Overview
1
Device information
2
Current measurement data
3
Display with device status
The O
verview dialog box contains information about the safety laser scanner.
7 C
ONFIGURATION
102
O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O 8025424/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
