9 Operation
9.1 Safety
DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of
non-observance.
b
Maintenance work, alignment work, fault diagnoses, and any changes to the
integration of the protective device in the machine must only be carried out by
qualified personnel.
b
The effectiveness of the protective device must be checked following such work.
NOTE
T
his document does not provide instructions for operating the machine in which the
safety laser scanner is integrated.
9.2 Regular thorough check
The test is intended to ensure that the hazardous area is monitored by the protective
de
vice and any attempted access to the hazardous area is prevented.
b
Carry out the checks specified in the test plan of the manufacturer of the machine
and the operating entity.
9.3 Status indicators
Overview
1
2
3
4

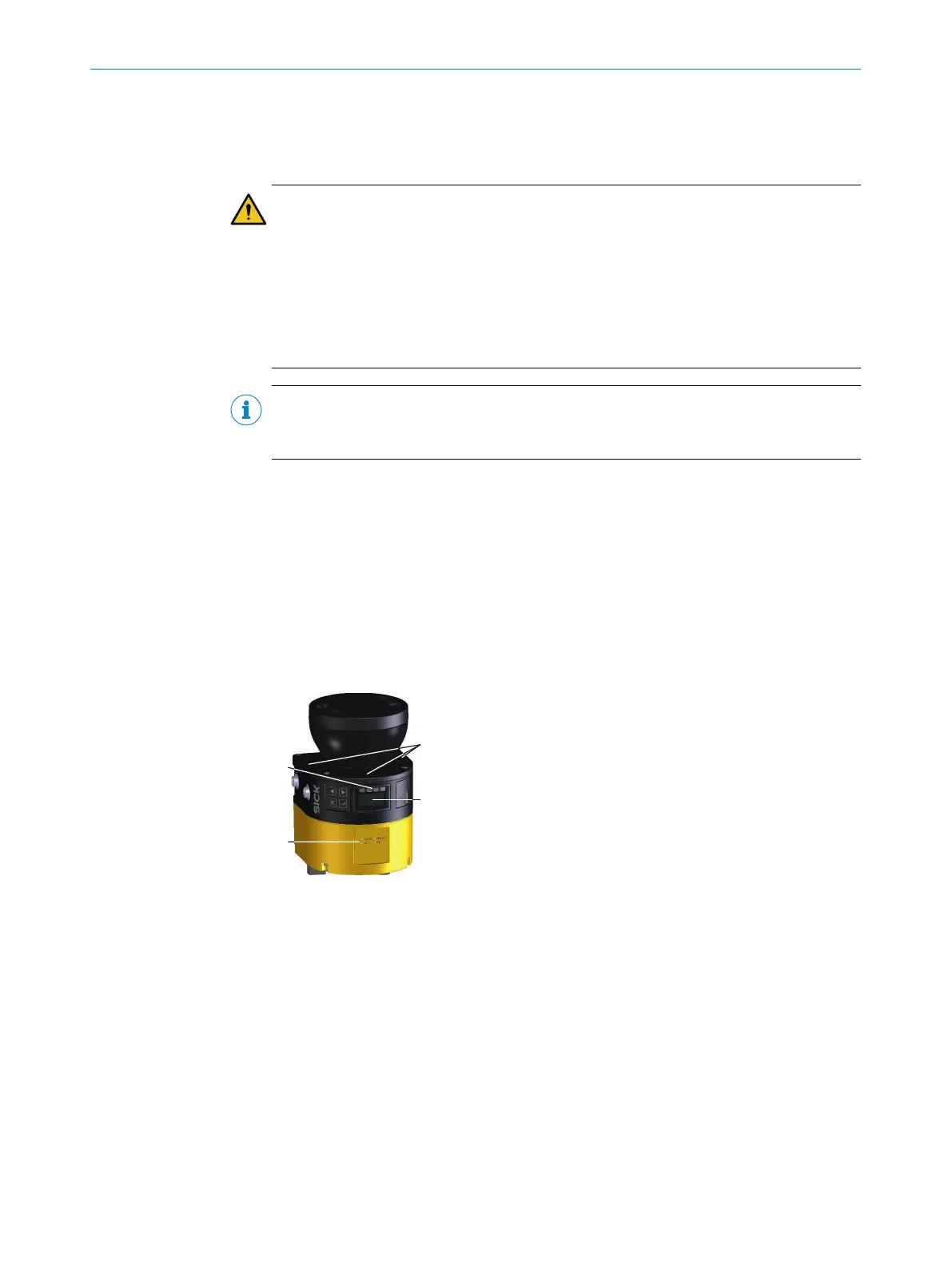

Figure 85: LEDs
1
Status LEDs
2
Additional LEDs for ON state and OFF state
3
Display
4
Network LEDs
Further topics
•
"D
etailed diagnostics using the display", page 166
•
"Fault indication on the display", page 168
9.3.1 Status LEDs
4 status LEDs are located directly above the display.
9 OPERATION
152
O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O 8025424/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
