SICK microScan3 Pro I/O User Manual

Supplement Z
R
f
or reflection-based measurement errors
All devices: If there is a retroreflector in the vicinity of the protective device (distance
of the retroreflector from protective field ≤ 6 m), you must take the supplement Z
R
=
350 mm into account.
If you use collision protection fields and a reference target is close to the protective field
(distance ≤ 6 m), you must always take supplement Z
R
into account.
Supplement Z
F
f
or lack of ground clearance
This supplement is necessary, because, generally, a person is detected above the foot
and so the braking process cannot take account of the length of the foot in front of the
point of detection. A person’s foot could be injured if a vehicle has no ground clearance.
F
Z
L
S
F
B

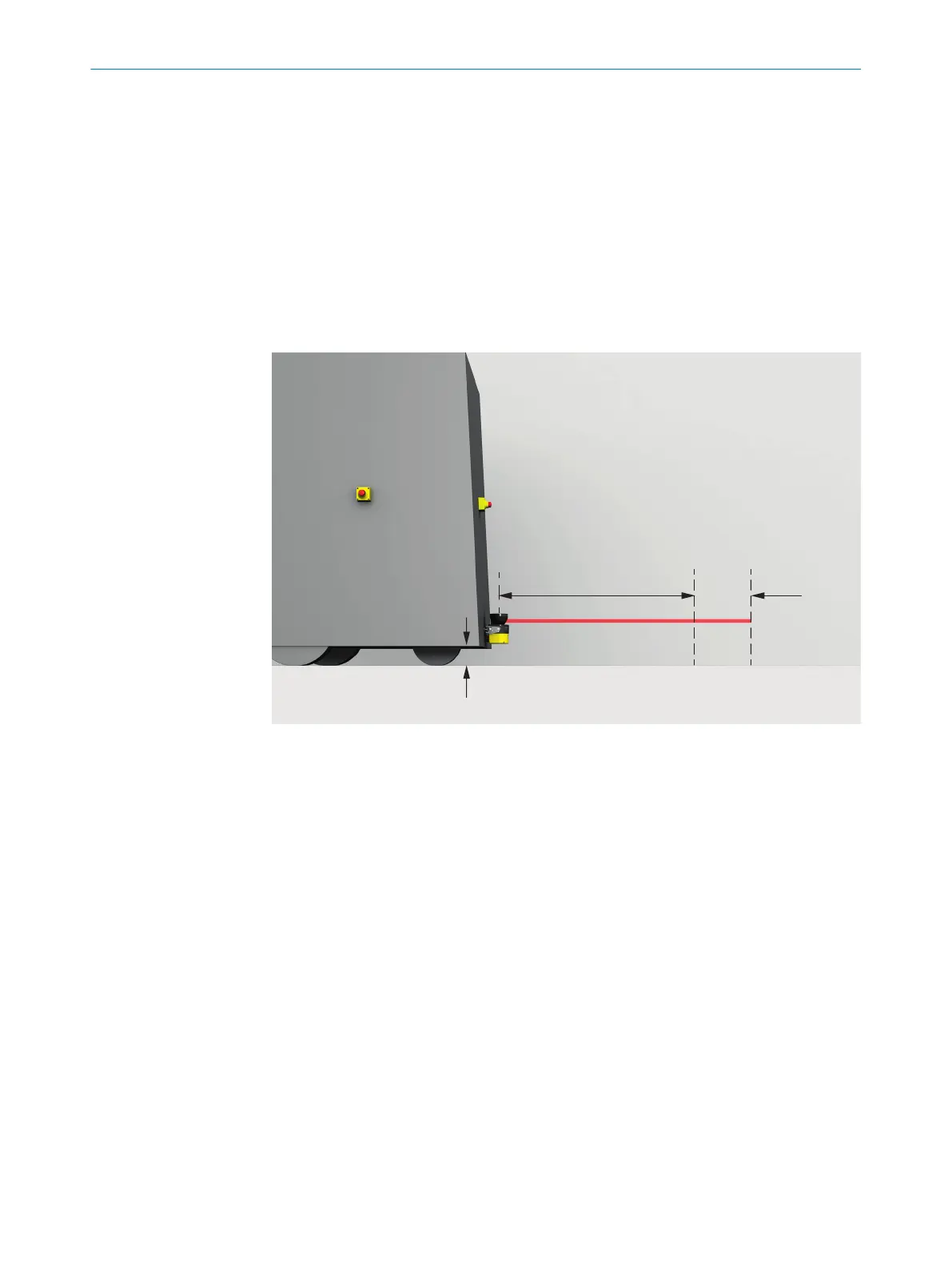

Figure 34: flat-rate supplement ZF for lack of ground clearance
B
F
ground clearance
S
L
protective field length without a supplement for lack of ground clearance
Z
F
supplement for lack of ground clearance
The flat-rate supplement for a ground clearance below 120 mm is 150 mm. T
his
supplement may be reduced further in individual cases. Read the supplement actually
required for your vehicle’s ground clearance from the following graph.
PROJECT PLANNING 4
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
49
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
