SICK microScan3 Pro I/O User Manual

Prerequisites
•
Exis
ting connection between Safety Designer and device
•
Configuration in the project and configuration in the device are synchronized
Approach
1.
Import configuration from the device.
2. Take an image.
Complementary information
Reflectors are displayed in turquoise if they are detected at a distance of more than
approx. 0.5 m.
11.4.2 Event history
Overview

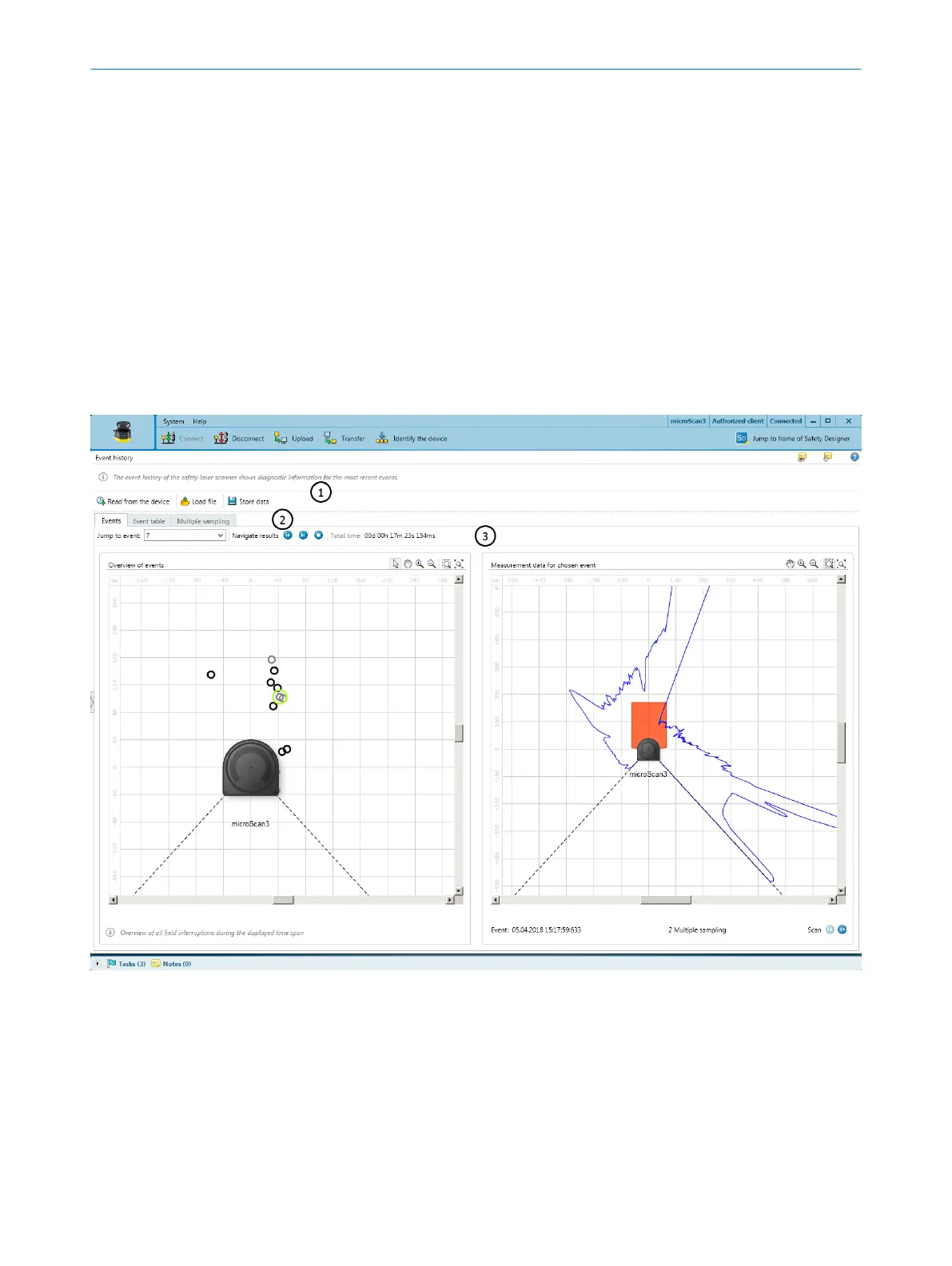

Figure 93: Event history
1
Data source
2
Available views
3
Navigation
The safety laser scanner stores data on important events. The event history displays
inf
ormation about the most recently stored events.
TROUBLESHOOTING 11
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
173
Subject to change without notice
