t
S
Scan cycle time
•
Se
tting “30 ms”: t
S
= 30 ms
•
Setting “40 ms”: t
S
= 40 ms
•
Setting “50 ms”: t
S
= 50 ms
The test pulses of the other OSSD pairs are each offset by t
S
.
OSSD 1.A
V
t
OSSD 1.B
V
t
≤ 300
µs
≤ 300
µs
S
4 × t

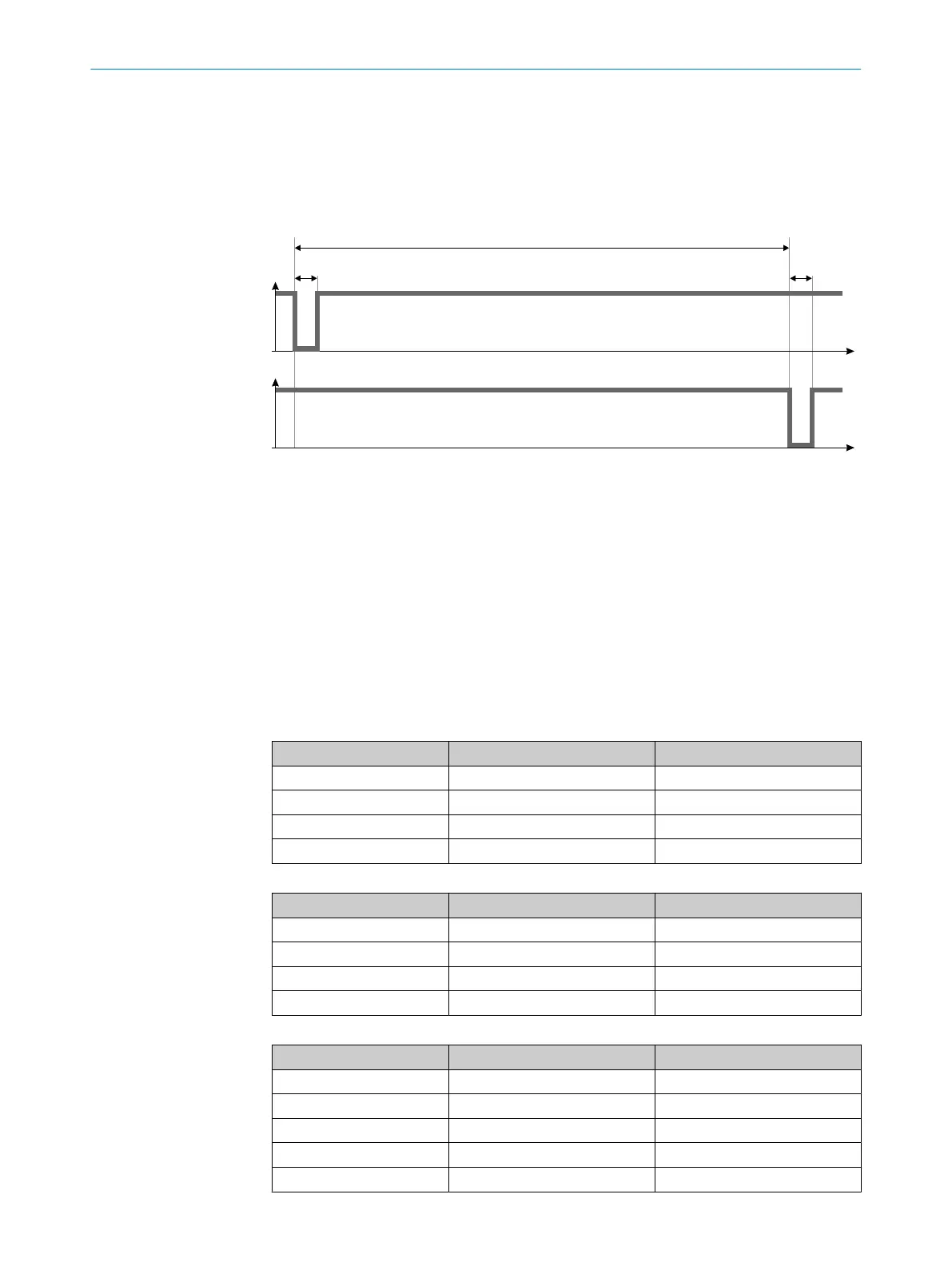

Figure 96: Duration and time offset for the switch-off tests in an OSSD pair
t
S
Scan cycle time
•
Se
tting “30 ms”: t
S
= 30 ms
•
Setting “40 ms”: t
S
= 40 ms
•
Setting “50 ms”: t
S
= 50 ms
13.6 Sensing range
Protective field range
T
he effective protective field range depends on the variant, on the set scan cycle time
and on the set object resolution.
Table 39: Protective field range (devices with a max. protective field range of 4.0 m)
Resolution Scan cycle time 40 ms Scan cycle time 30 ms
≥ 70 mm 4.00 m 4.00 m
50 mm 3.50 m 3.00 m
40 mm 3.00 m 2.30 m
30 mm 2.30 m 1.70 m
Table 40: Protective field range (devices with a max. protective field range of 5.5 m)
Resolution Scan cycle time 40 ms Scan cycle time 30 ms
≥ 70 mm 5.50 m 4.00 m
50 mm 3.50 m 3.00 m
40 mm 3.00 m 2.30 m
30 mm 2.30 m 1.70 m
Table 41: Protective field range (devices with a max. protective field range of 9.0 m)
Resolution 50 ms scan cycle time 40 ms scan cycle time
≥ 150 mm 9.00 m 9.00 m
70 mm 9.00 m 7.00 m
60 mm 8.00 m 6.00 m
50 mm 7.00 m 5.00 m
40 mm 5.00 m 4.00 m
