11.4.1 Data recorder
Overview

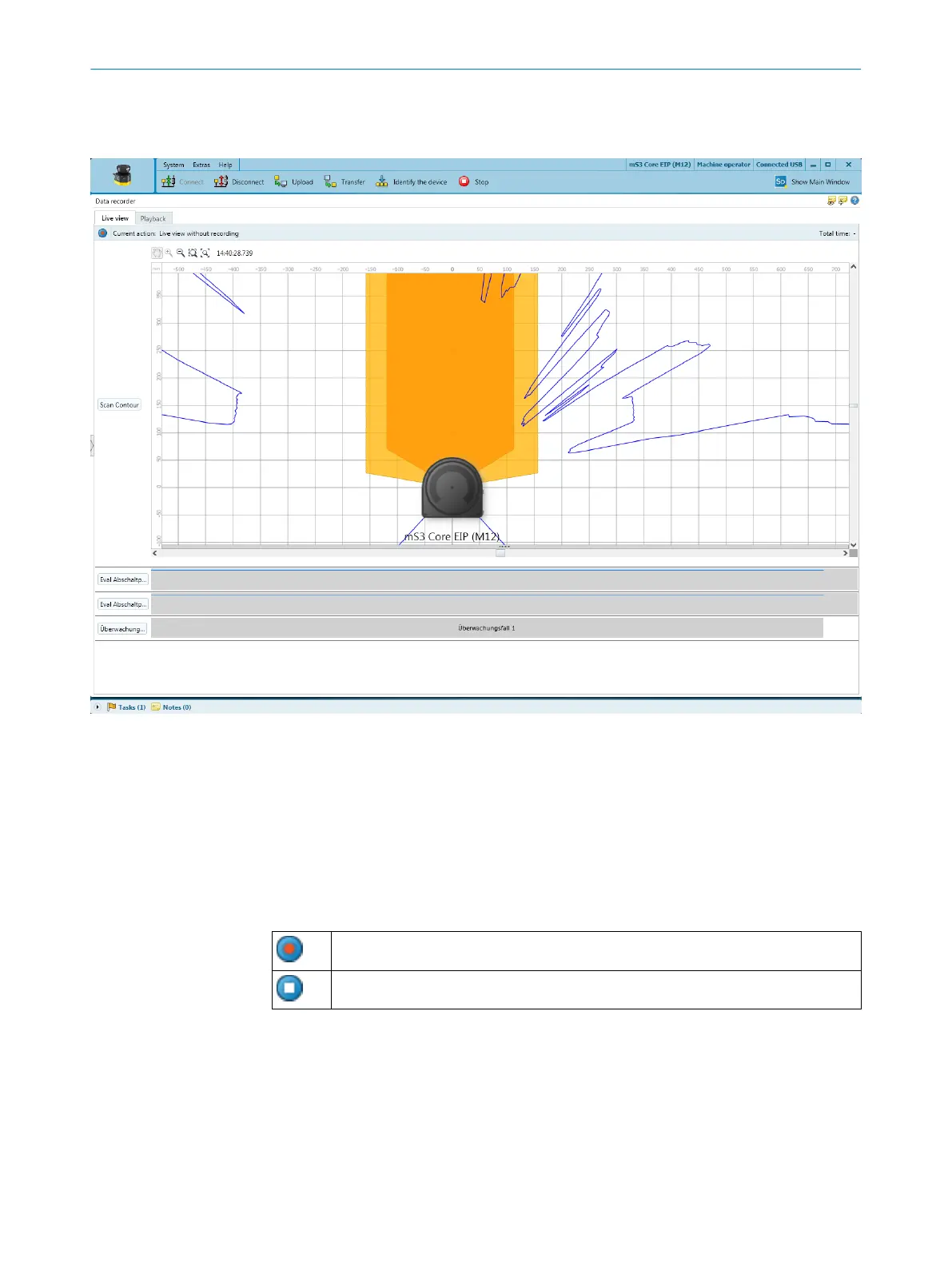

Figure 92: Data recorder
Y
ou can use the data recorder to record the device’s signals. Depending on the inter‐
face and the load on the interface, the measurement data may not be transmitted and
shown for every scan cycle.
The data is saved in a data recorder diagnostics file.
You can play the data recorder diagnostic file in the data recorder.
You can adjust the settings in the Safety Designer main window.
Table 26: Data recorder
Start recording
Stop recording
Typical applications
•
Chec
k spatial geometry
•
Check where a person can stay or when a person is detected
•
Check input information about the current monitoring case
•
Check why safety outputs have switched
11 T
ROUBLESHOOTING
172
O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O 8025424/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
