18.4 Mounting methods for protection from interference from systems in close proxim‐
it
y
Mutual interference of several safety laser scanners is unlikely thanks to the safeHDDM
sc
anning technology. You can choose a suitable mounting method to guarantee partic‐
ularly high availability or to avoid interference with laser scanners that do not have
safeHDDM functionality. In many cases, you can use the following examples as a guide.
NOTE
Y
ou must comply with the standard ISO 13855 when choosing the mounting method.

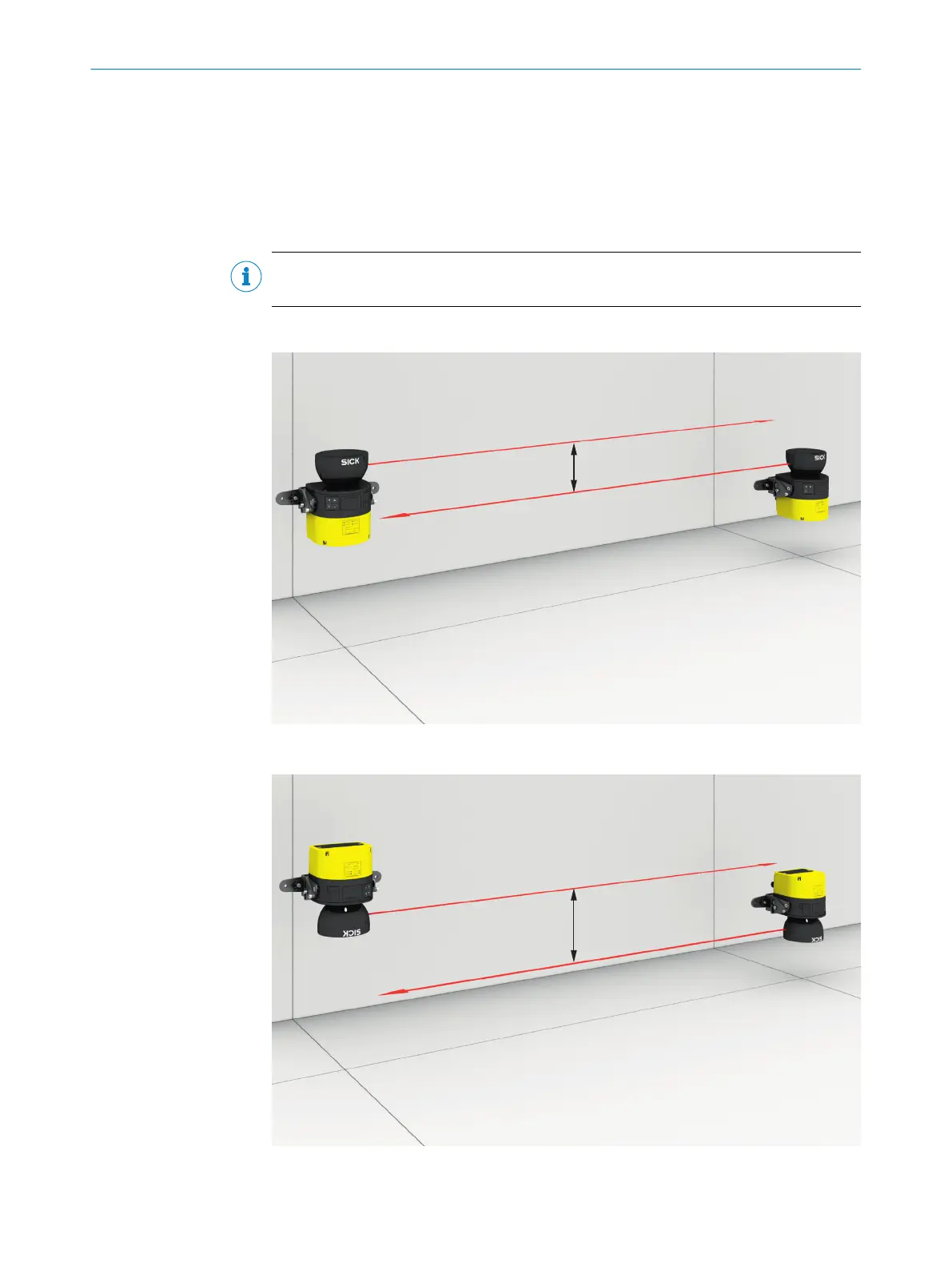

Mount several safety laser scanners offset and parallel to one another
≥ 100 mm
Figure 102: Mounting 2 safety laser scanners with the optics cover facing upward
≥ 100 mm
Figure 103: Mounting 2 safety laser scanners with the optics cover facing downward
ANNEX 18
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
217
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
