SICK microScan3 Pro I/O User Manual

•
Ma
x. lost packages [count]:: Specifies how many data packets may be lost, i.e. how
many times the update may fail before the device enters the error state.
•
Network delay [%]:: Additional tolerance to avoid errors that could occur due to
delays in data transmission.
The transmission time in the network is calculated on the basis of the last three
parameters and displayed in the Response time via network [ms]: field.
7.8 Application
Overview

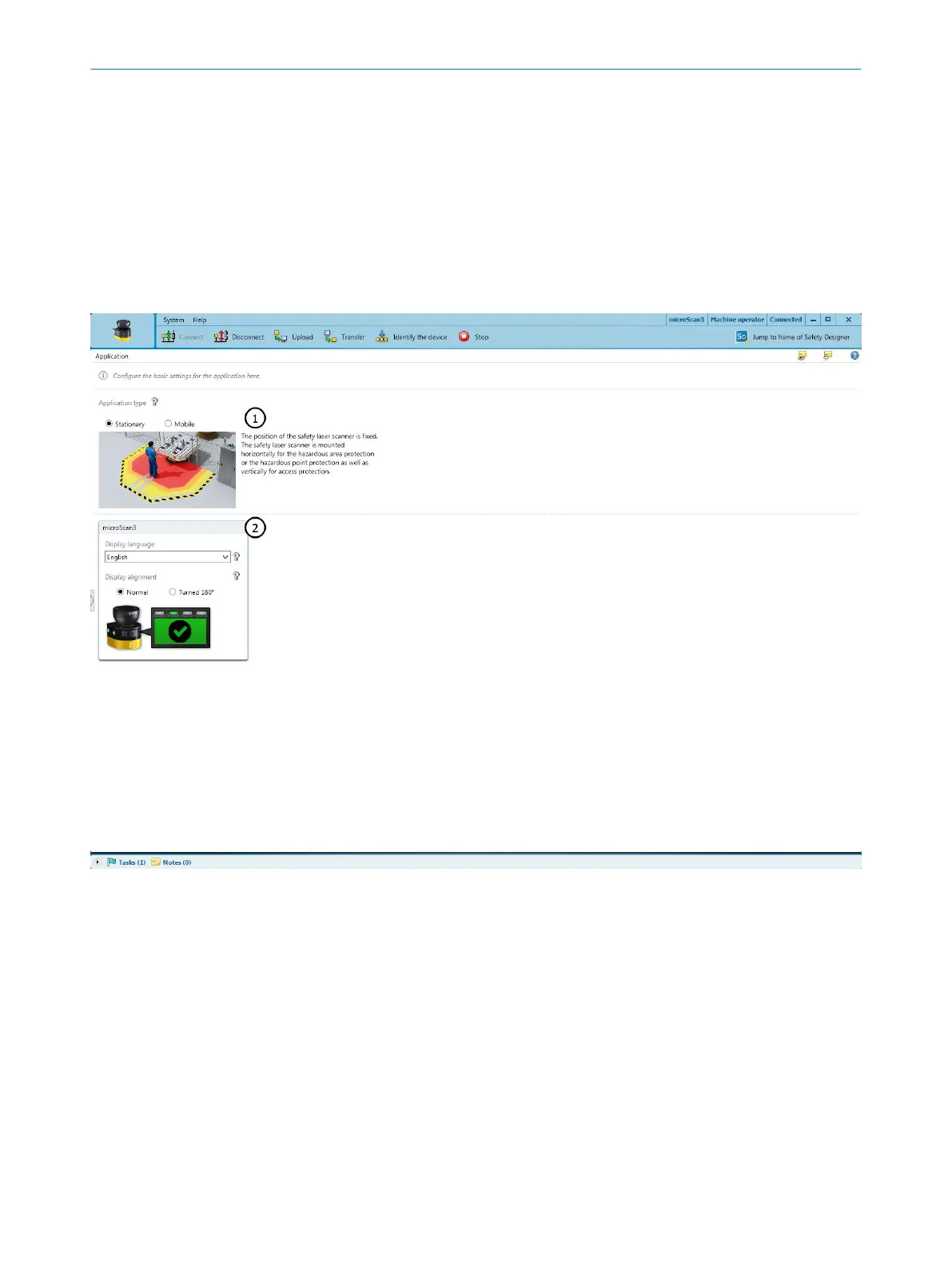

Figure 68: Application
1
Basic settings for the application
2
Settings for the display
Application type
T
he type of application depends on the application of the safety laser scanner:
b
Select application type.
✓
Mobile
Mobile hazardous area protection is suitable for AGVs (automated guided vehi‐
cles), cranes, and forklifts to protect people when vehicles are moving or docking.
The safety laser scanner monitors the area in the direction of travel and stops the
vehicle as soon as an object is located in the protective field.
✓
S
tationary
7 C
ONFIGURATION
110
O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O 8025424/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
