13.8 Dimensional drawings
112
Ø 99,5
≤ 200
8512 44
182,7
128,9
40,147,1
75,8
163
≥ 25
≥ 25
36,122
64,8
111,1
M5 × 7,5
2
1
3

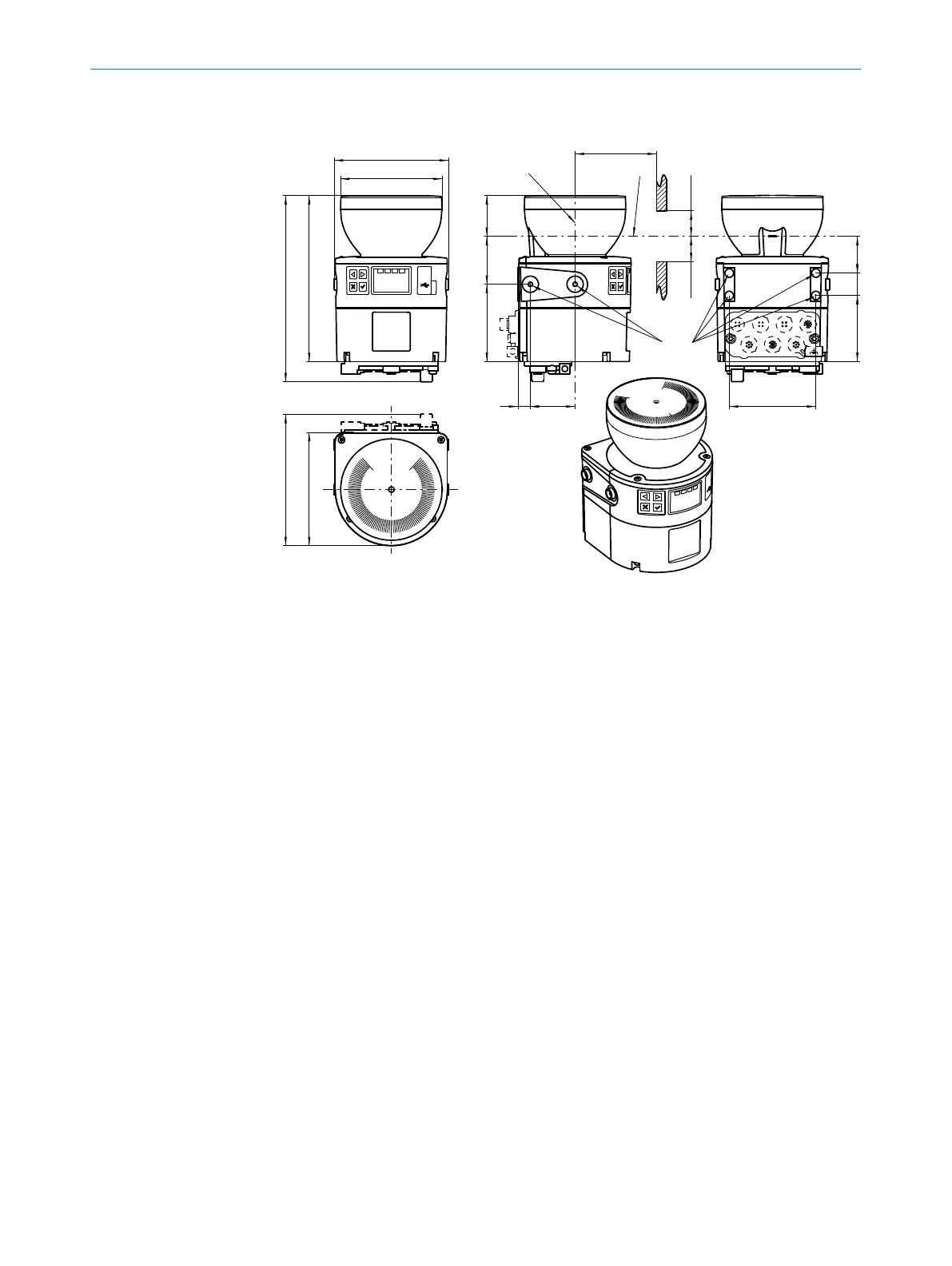

Figure 101: Dimensional drawing
All dimensions in mm.
1
Mirror rotational axis
2
Scan plane
3
Required viewing slit
