11.4.3 Message history
Overview

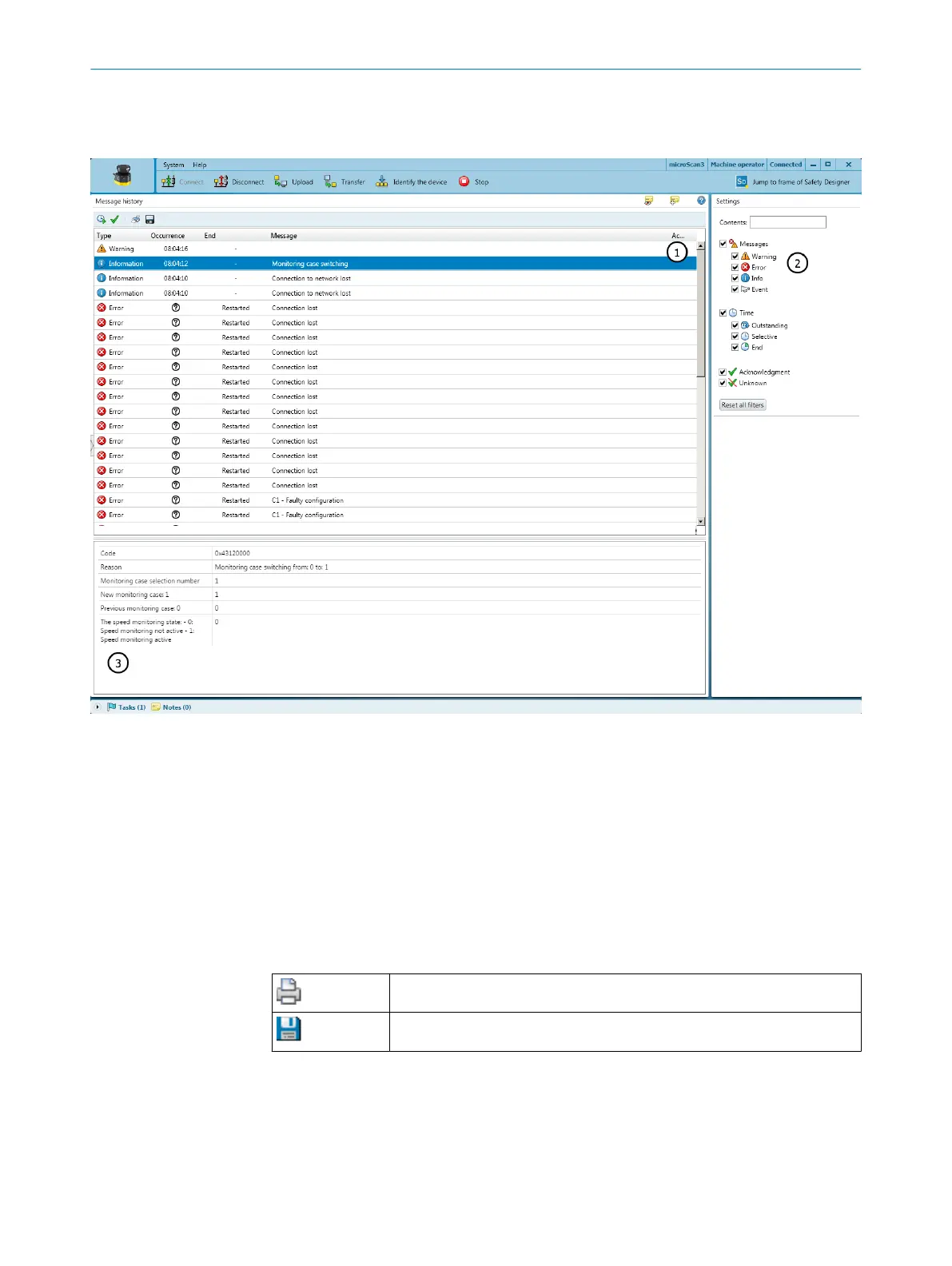

Figure 94: Message history
1
Message history
2
Display filter
3
Details about the selected message
Events such as faults, warnings and information are stored in the message history.
B
y right-clicking on the table header, you can select the columns displayed in the
message history.
Safety Designer shows details about the events in the bottom part of the window, ways
to solve them are also shown.
Table 27: Print message history or save as a PDF
Print message history
Save message history as a PDF
11.4.4 Status inputs and outputs
Safety Designer displays information on the supported assemblies.
T
he arrows to the device symbolize the output assemblies (from the view of the control).
The arrows away from the device symbolize the input assemblies (from the view of the
control).
TROUBLESHOOTING 11
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
175
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
