SICK microScan3 Pro I/O User Manual

7.14 Monitoring cases
Overview

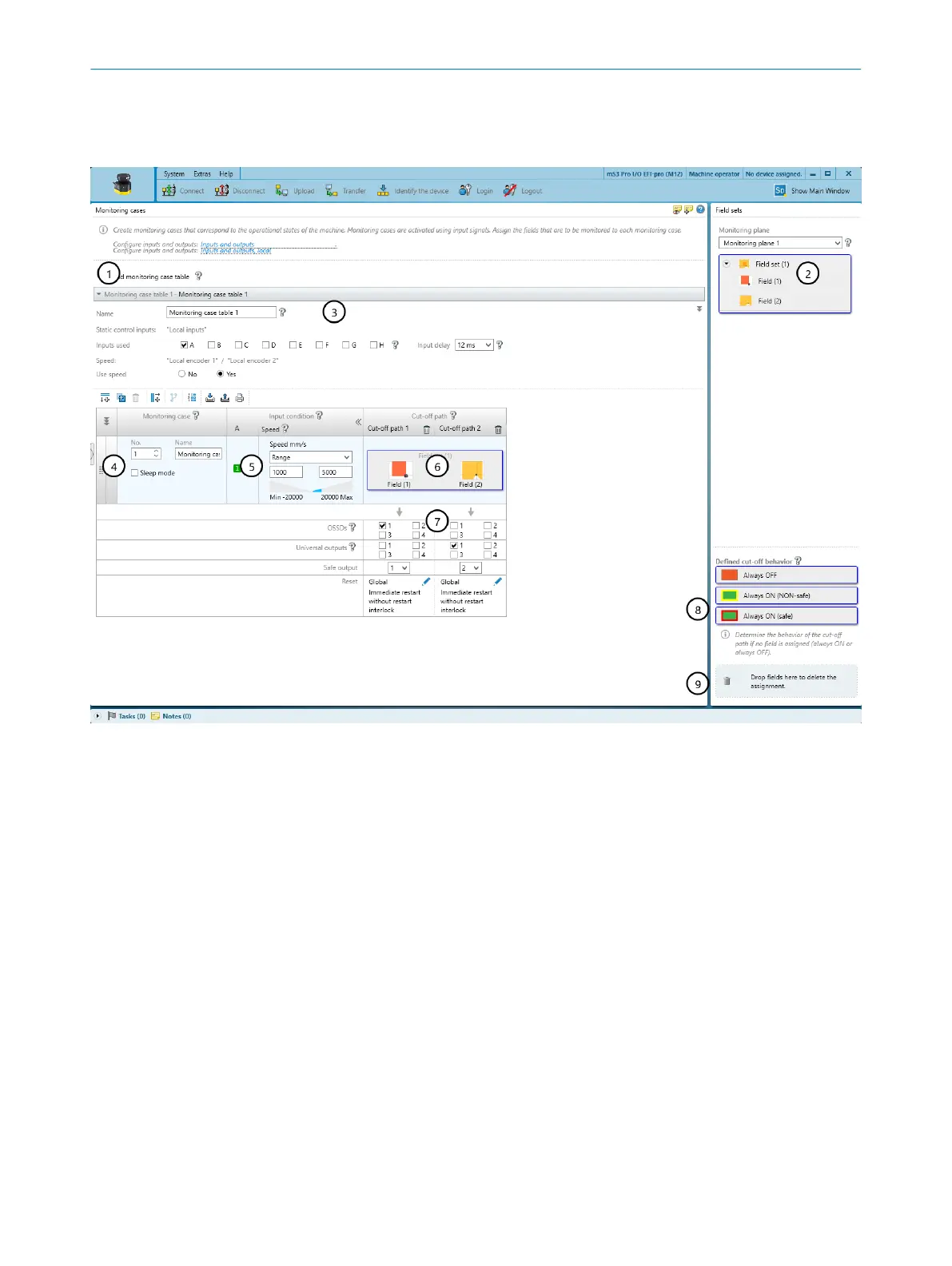

Figure 78: Monitoring cases
1
Add monitoring case table
2
Configured field sets
3
Settings for the whole monitoring case table
4
Settings for the individual monitoring case
5
Input conditions for a monitoring case
6
Field set in the monitoring case and in the cut-off path
7
Cut-off paths
8
Areas for defined cut-off behavior
9
Remove field set from a monitoring case
In the monitoring case editor, you can also define the monitoring cases with input
condit
ions and assign the field sets.
Further topics
•
"Monit
oring case", page 20
7.14.1 Settings for monitoring case tables
Name
In t
he Name field, enter a name for the monitoring case table that is as descriptive as
possible.
CONFIGURATION 7
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
135
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
