SICK microScan3 Pro I/O User Manual

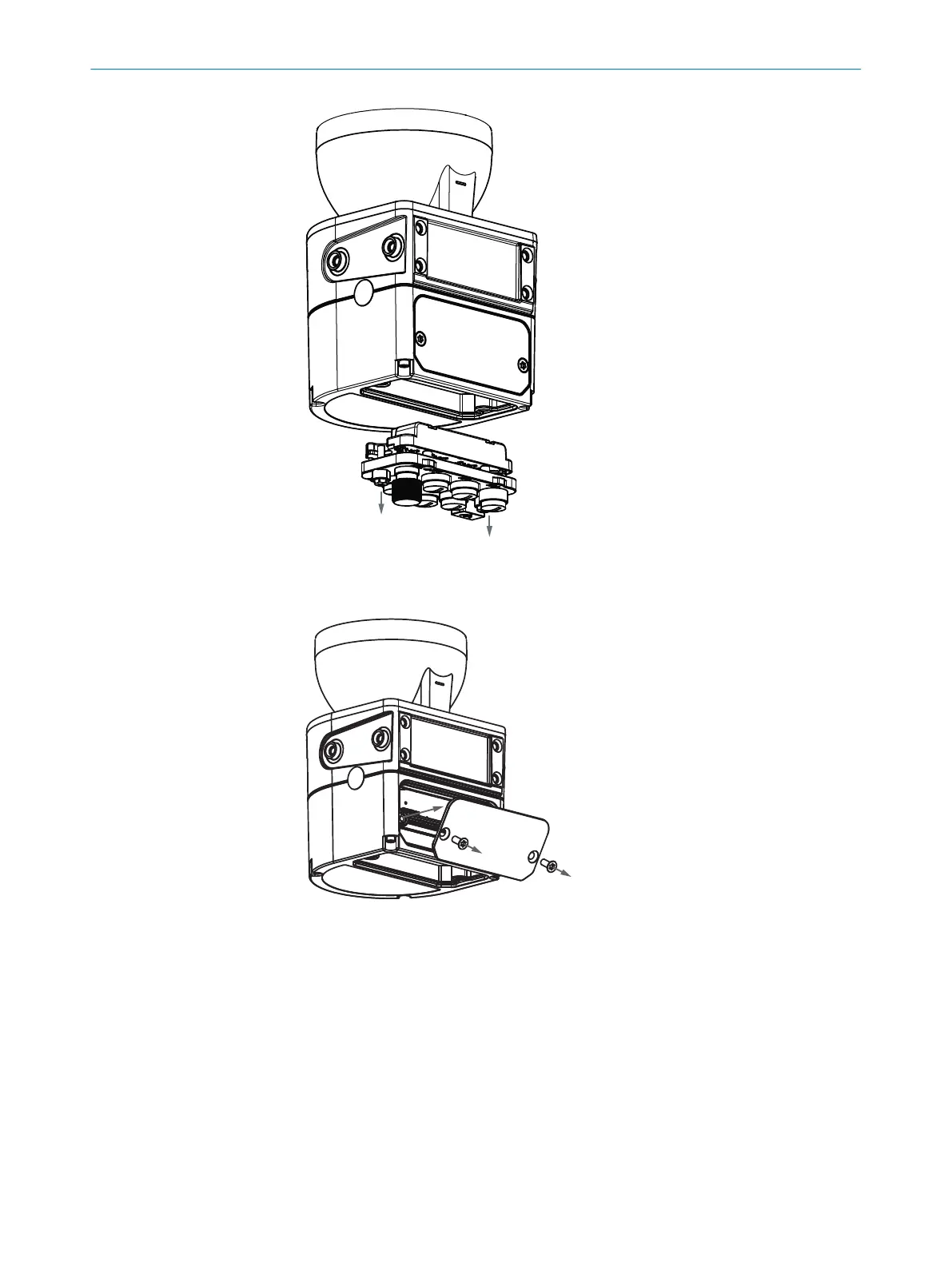

Figure 50: Remove the system plug from below.
3. Loosen the cover plate screws.
4.
Remove the cover plate from the safety laser scanner.
Figure 51: Remove the cover plate from the rear.
5. Carefully slide the new system plug into the safety laser scanner at the desired
posit
ion (bottom or rear).
6. Screw in the system plug using the captive screws. Tightening torque: 2.25 Nm …
2.75 Nm.
5 MOUN
TING
88
O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O 8025424/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
