SICK microScan3 Pro I/O User Manual

Table 2: Field types and their function
Protective
f
ield
Reference
contour field
Contour
detection
field
Collision pro‐
tection field
1)
Warning field
Safe switch off
(ac
cording to ISO
13849-1)
Yes (PL d) Yes (PL d) Yes (PL d) Yes (PL d) No
Max. scanning
range of the
safety laser scan‐
ner
Variant-
dependent:
4.0 m
5.5 m
9.0 m
Variant-
dependent
:
4.0 m
5.5 m
9.0 m
Variant-
dependent
:
4.0 m
5.5 m
9.0 m
19.0 m Variant-
dependent
:
40 m
64 m
Purpose Detection
and pr
otec‐
tion of people
Tamper pro‐
tection
e.g. door
monitoring
Detection of
an oncoming
industrial
truck in a nar‐
row aisle. Use
is only permit‐
ted in accord‐
ance with the
description in
this docu‐
ment, see
"Collision pro‐
tection in nar‐
row aisles",
page 58.
Functional
use (no
safety-rele‐
vant use)
1)
Available only for devices with the Pro performance package and a maximum protective field range of
9 m.
Protective field
T
he protective field protects the hazardous area of a machine or vehicle. As soon as the
electro-sensitive protective device detects an object in the protective field, it switches
the associated safety outputs to the OFF state. This signal can be passed to controllers
resulting in the dangerous state coming to an end, e.g. to stop the machine or the
vehicle.

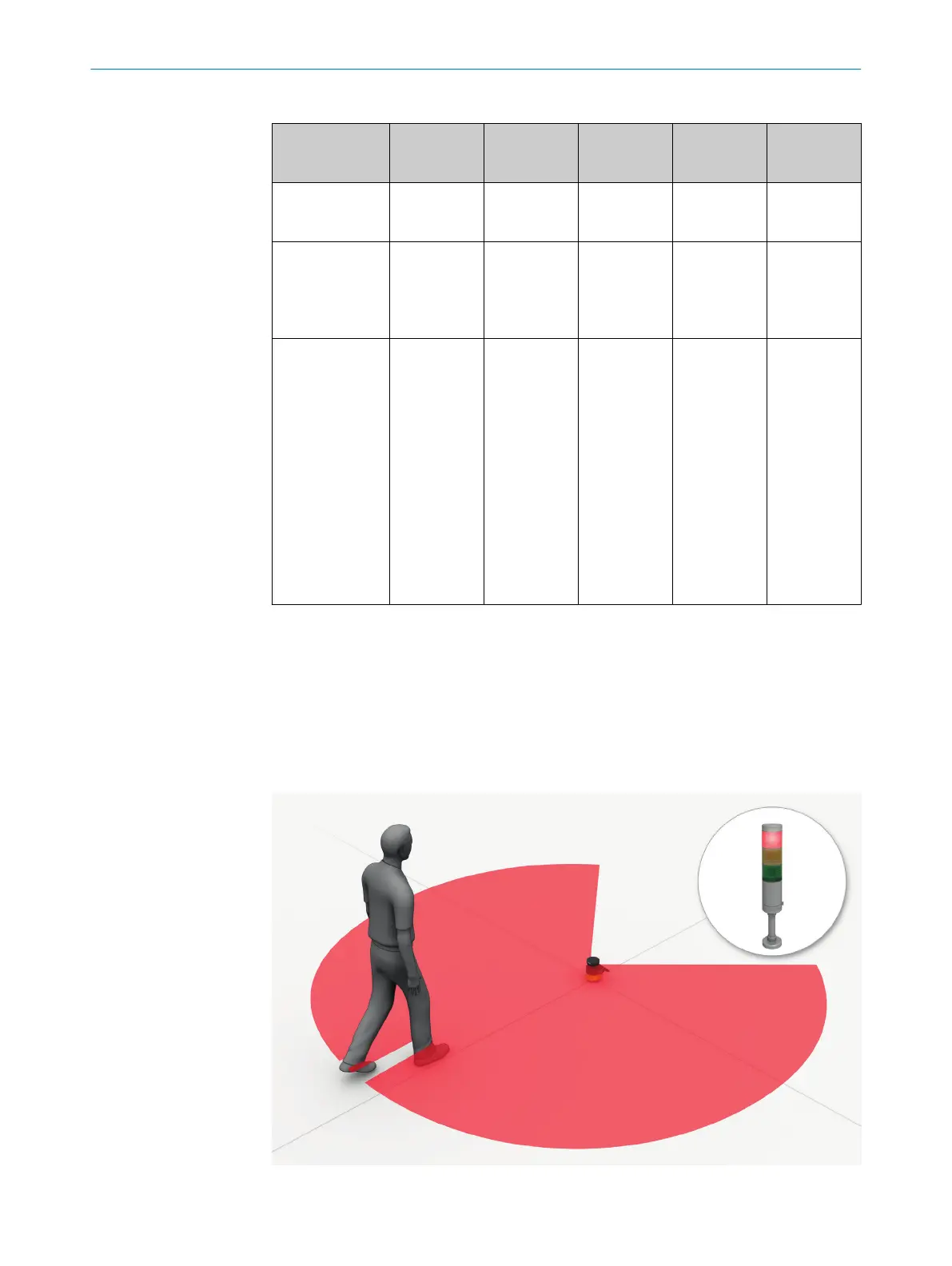

Figure 5: Protective field, shown in red in this document
PRODUCT DESCRIPTION 3
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
17
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
