SICK microScan3 Pro I/O User Manual

190 mm
150 mm
S
L

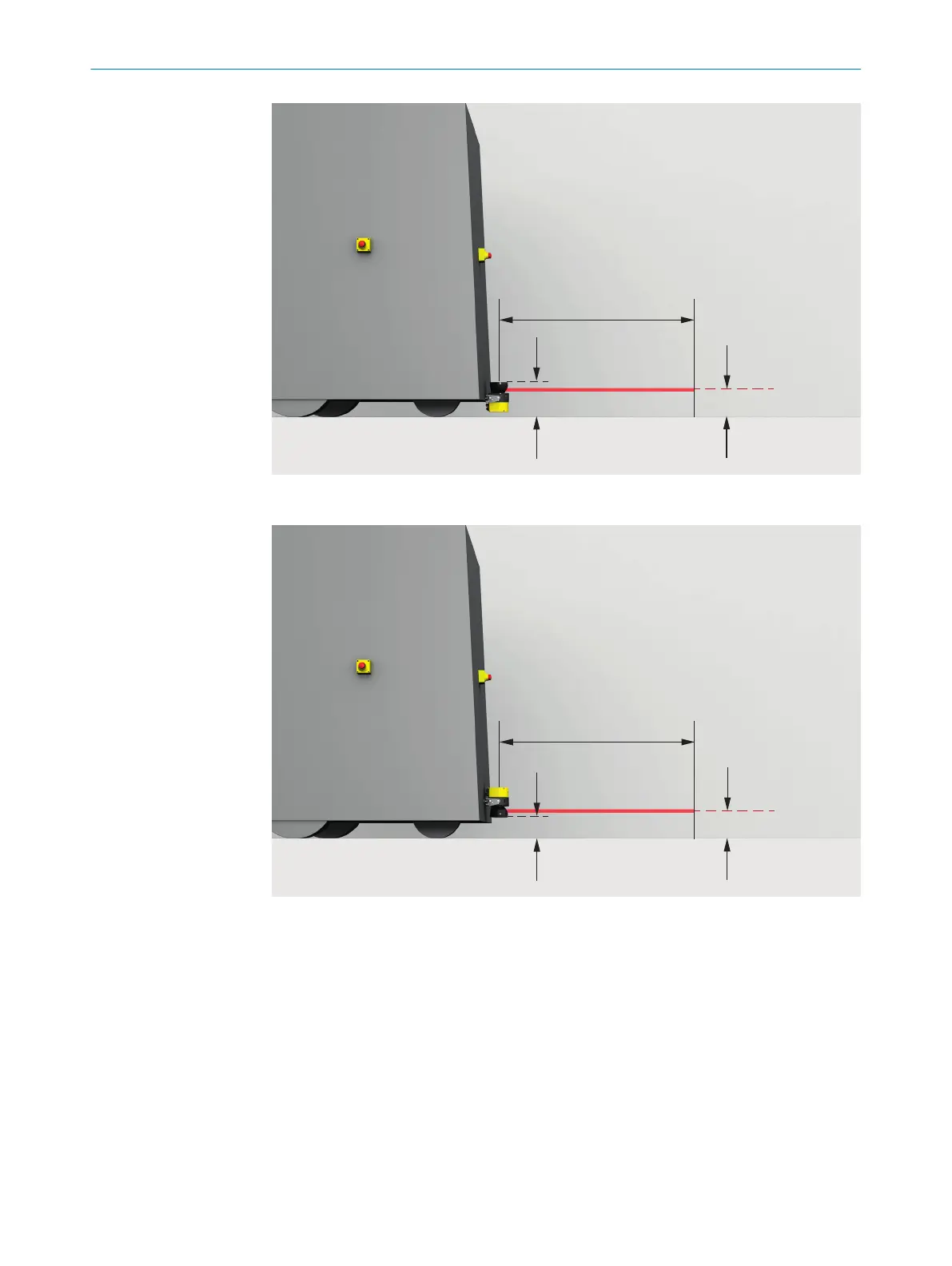

Figure 37: Recommended fitting height
110 mm
150 mm
S
L
Figure 38: Recommended fitting height for inverted mounting
4.3.10 Mobile protection in narrow aisles
Prerequisites
F
or use on industrial trucks in narrow aisles, the requirements according to the follow‐
ing documents must be met:
•
DIN 15185-2: Industrial trucks – Safety requirements - Part 2: Use in narrow
aisles
•
DGUV Regulation 68 (formerly: BGV D27): Work Safety Regulations for Industrial
Trucks (German Social Accident Insurance, DGUV)
•
VDMA Guideline: Floors for the use of narrow-aisle industrial trucks (VDMA, Sep‐
tember 2010)
•
Personal protection when using industrial trucks in narrow aisles (Berufsgenossen‐
schaft Handel und Warenlogistik (BGHW))
PROJECT PLANNING 4
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
53
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
