User name
T
he optional user name helps later users to find a contact for the application.
b
Enter a user name.
Application image
An ima
ge helps to identify the application more quickly. The application image is saved
in the project file on the PC and transmitted to the device. The Safety Designer sup‐
ports the following file formats: BMP, GIF, JPG, PNG, TIF.
1. Click on the pencil icon.
2. Select an image file for the application.
The image is incorporated as a thumbnail.
Description
A de
scription makes it easier to understand an application’s context more quickly.
b
Enter a description with a maximum of 1000 characters.
7.7 Protocol settings
7.7.1 EFI-pro
SNN
Ent
er the safety network number (SNN) of your safety network here.
The safety network number should be identical for all devices in an EFI-pro network.
The EFI-pro network is identified using the safety network number. The safety network
number is a 48-bit identifier.

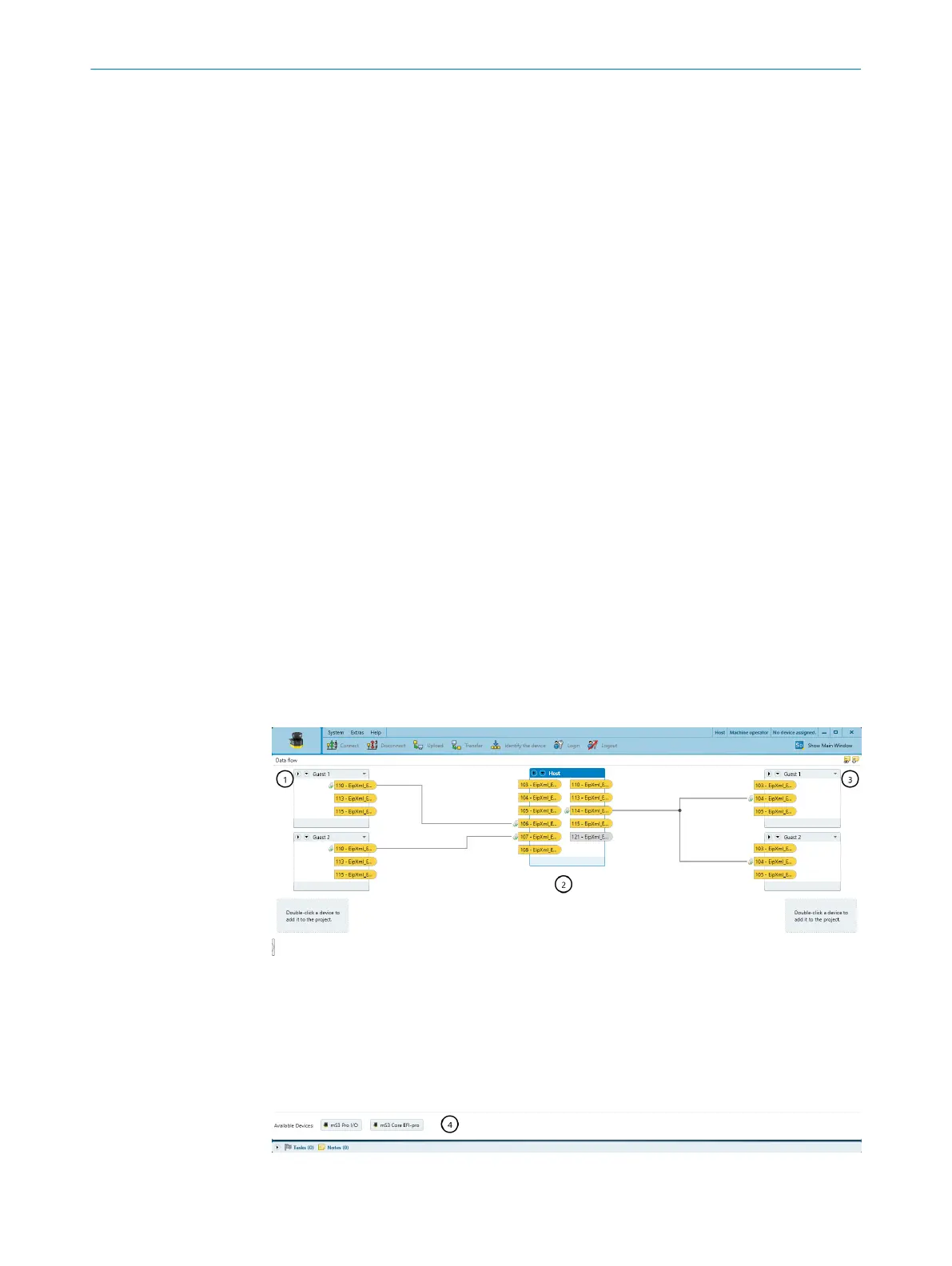

7.7.1.1 Data flow
Overview
1
Devices with output assemblies
7 C
ONFIGURATION
108
O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O 8025424/1ELL/2022-01-21 | SICK
Subject to change without notice
