7.11.8 Enable propose field

Overview

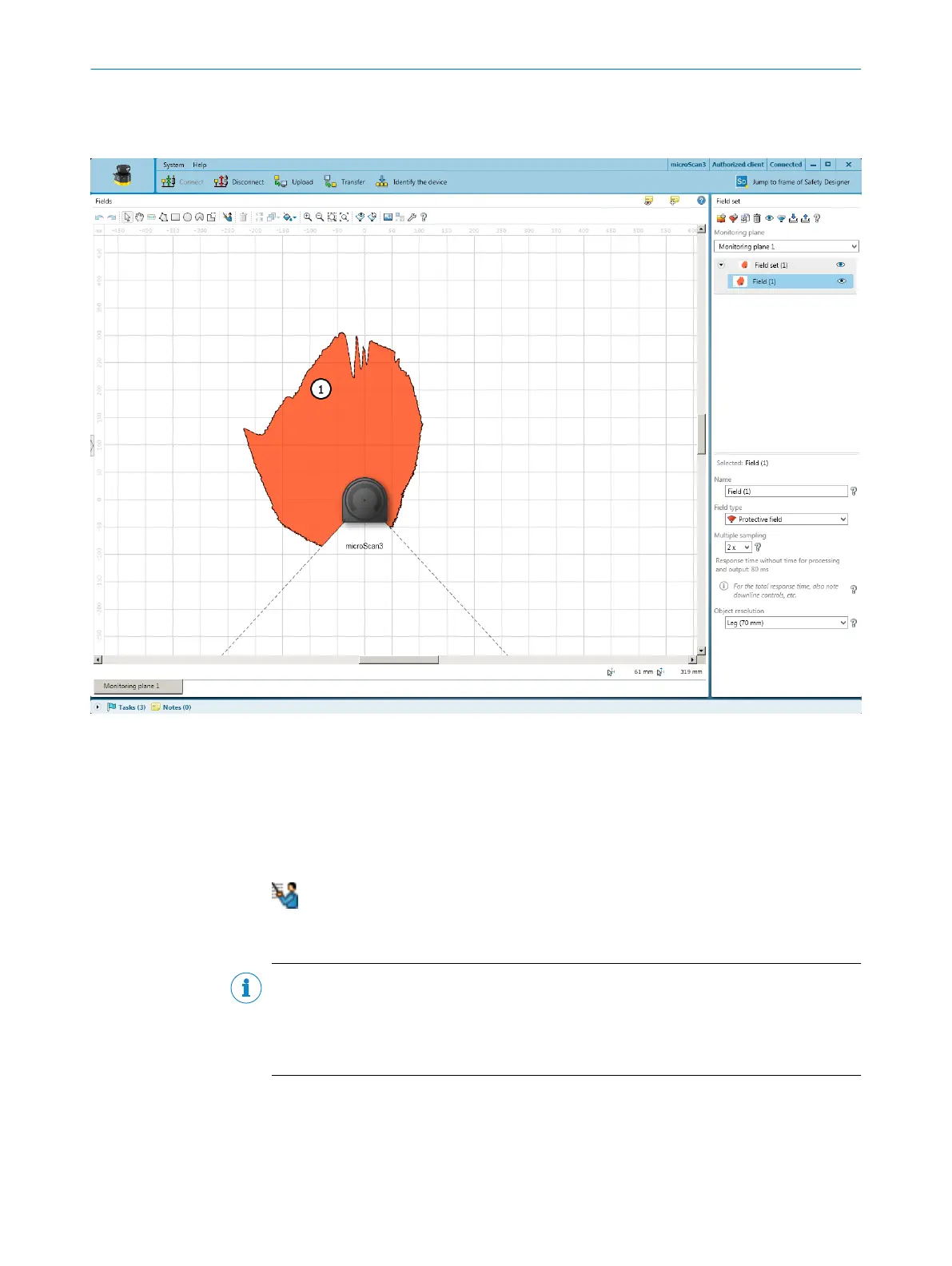

Figure 76: Enable propose field

Proposal for a protective field

You can have a protective field or warning field suggested by Safety Designer.

or this purpose, the safety laser scanner scans the visible surrounding contour several

times. Based on the data obtained, the Safety Designer suggests the contour and size

of the field.

You can use the Su

ggest field tool to create a field.

Important information

NOTE

If y

ou propose a protective field, the proposal does not replace calculation of the

minimum distance. You must calculate the minimum distance and check whether the

size of the proposed protective field is sufficient. You must also take into account the

measurement tolerances of the safety laser scanner.

Existing field geometries

•

elete existing shapes: The field is redrawn according to the surrounding contour.

•

Refine existing shapes: The existing field is adapted to the surrounding contour.

CONFIGURATION 7

8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O

127

Subject to change without notice
