7.12 Inputs and outputs

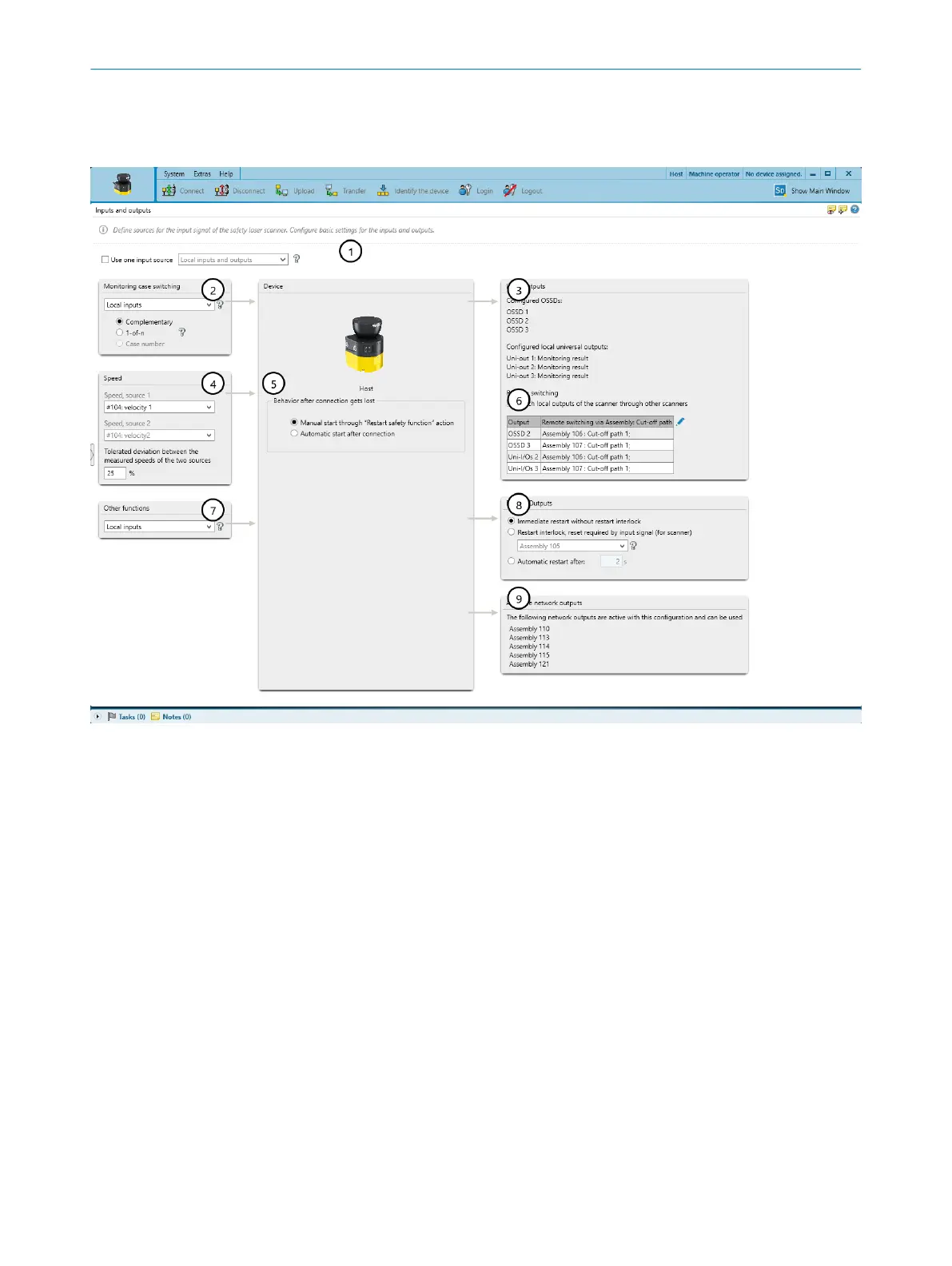

Overview
1
Use one input source
2
Input for switching between monitoring cases
3
Information about local outputs
4
Input for speed
5
Behavior during connection termination
6
Remote shutdown
7
Input for additional functions
8
Restart behavior of the network outputs
9
Network outputs
Safety Designer provides a selection of the possible signal inputs.
Use one input source
Y
ou can specify that the same source is used for all inputs.
Monitoring case switching
If y
ou want to switch between different monitoring cases, then specify which source is
used.
If the source contains static control inputs, then also define the evaluation of the
static control inputs:
•
Complementary
CONFIGURATION 7
