7.15 Simulation
Overview

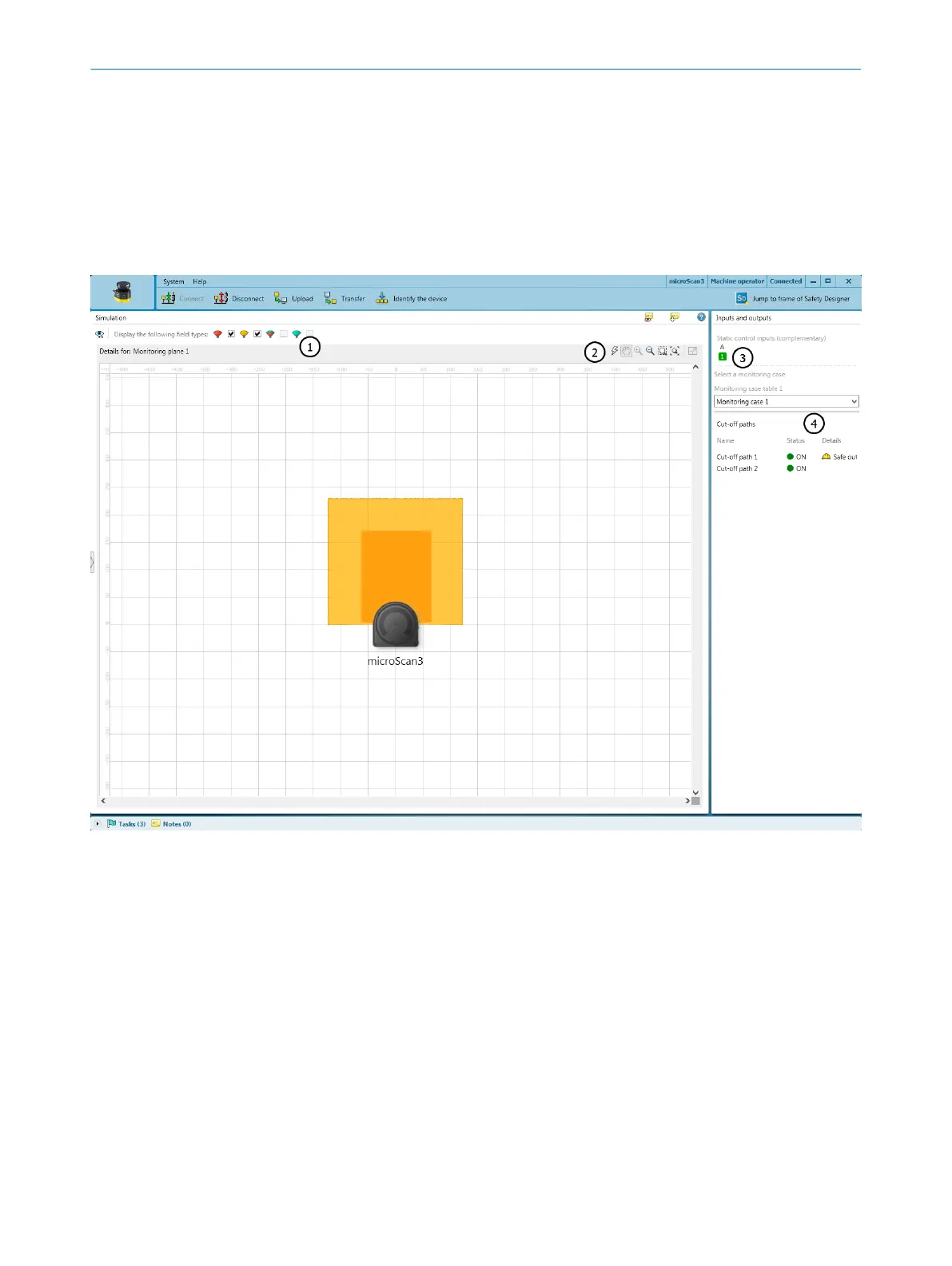

Figure 79: Simulation
1
Show or hide field types
2
Simulation tools
3
Select input conditions
4
Display the cut-off paths
You can visualize the result of the set configuration in the simulation.
Simulation components and options
•
Dis
play the status of the OSSD pairs
•
Display the status of the cut-off paths
•
Get feedback about which monitoring case is active for the selected input sample
(default: monitoring case 1 is active)
•
You can switch inputs, monitoring cases, etc. virtually using symbols and observe
the result
7 C
ONFIGURATION
140
O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O 8025424/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
