ou can mark a field in the simulation as interrupted and check which result is
triggered by an object in the relevant field
•
You can move fields to the foreground or to the background using the context
menu (right mouse button)
7.16 Data output
Overview

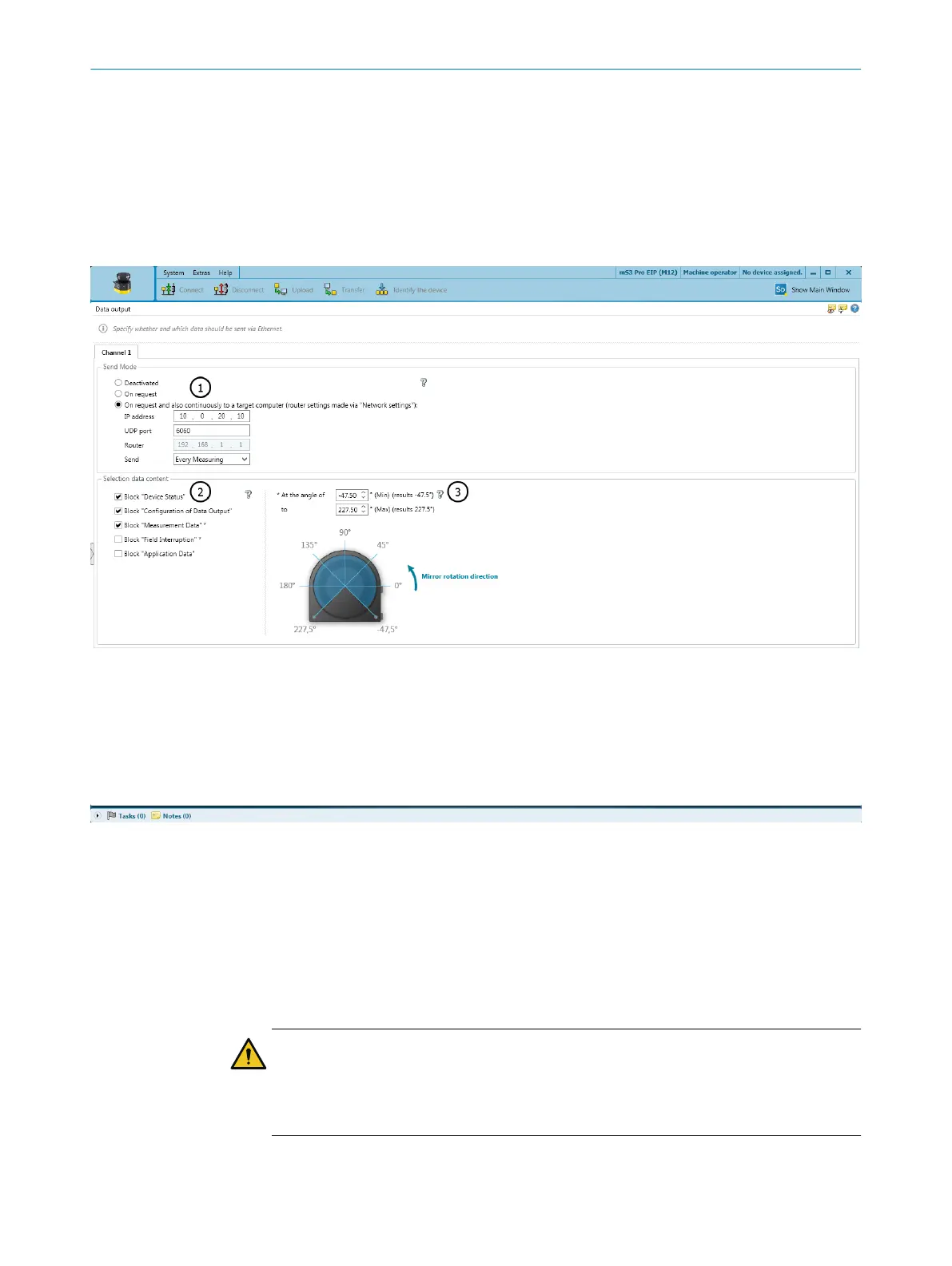

Figure 80: Data output
1
Send mode
2
Data content
3
Angular range
You can define which data from the safety laser scanner is to be output via UDP or
T
CP/IP.
Important information
DANGER
D
anger of using data output for safety function
Data output may only be used for general monitoring and control tasks.
b
Do not use data output for safety-related applications.
CONFIGURATION 7
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
141
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
