The advantage of this type of protective device is that it is possible to have a short
minimum dis
tance and the operator can work more ergonomically.

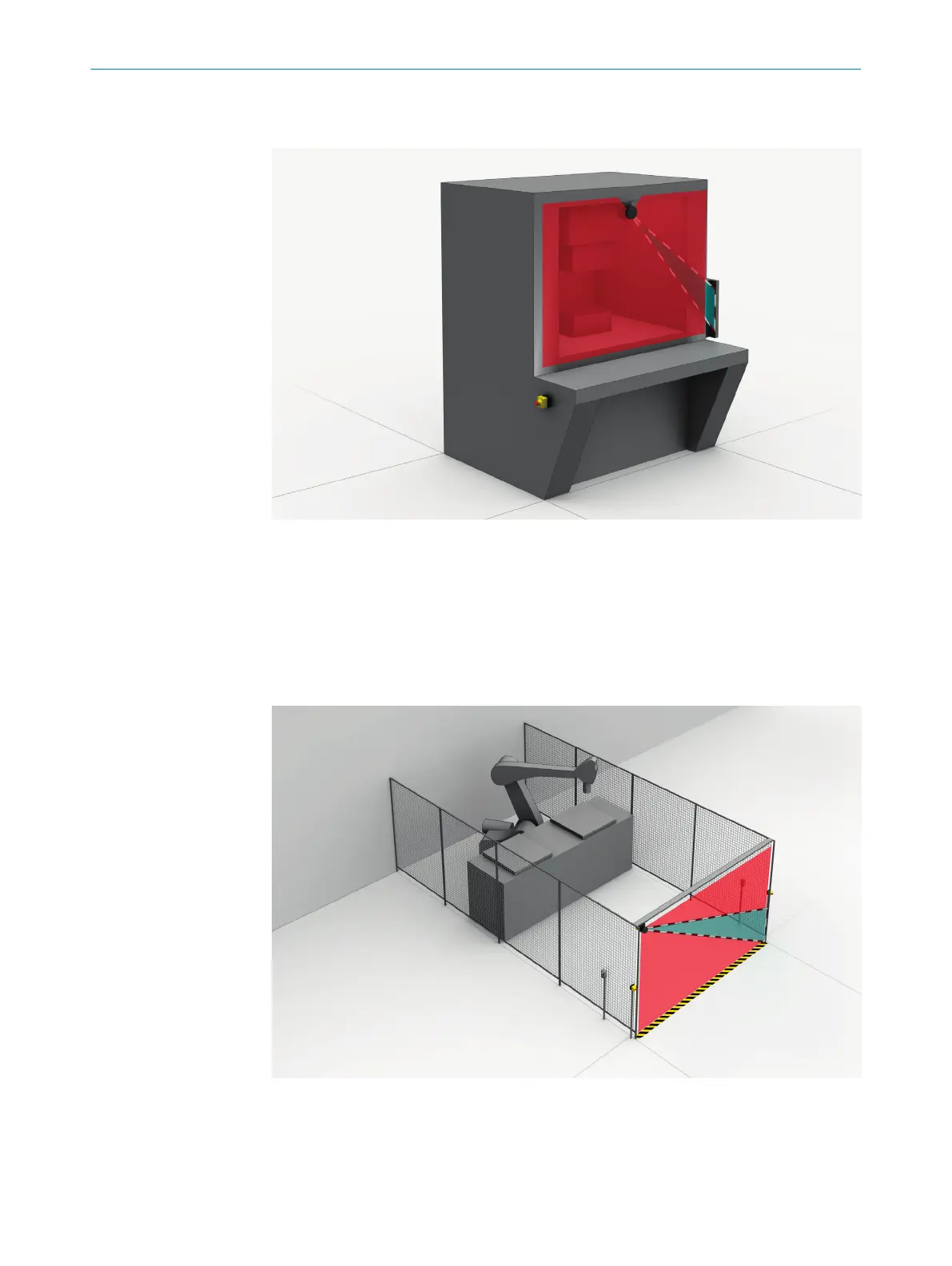

Figure 14: Hazardous point protection: Hand detection
Access protection
In ac
cess protection, people are detected if their whole body passes through the
protective field.
This type of protective device is used for the protection of access to hazardous areas.
When the hazardous area is entered, a stop signal is triggered. A person standing
behind the protective device will not be detected by the ESPE.
Figure 15: Access protection: detection of a person when accessing a hazardous area
PRODUCT DESCRIPTION 3
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
23
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
