SICK microScan3 Pro I/O - Drawing masked areas

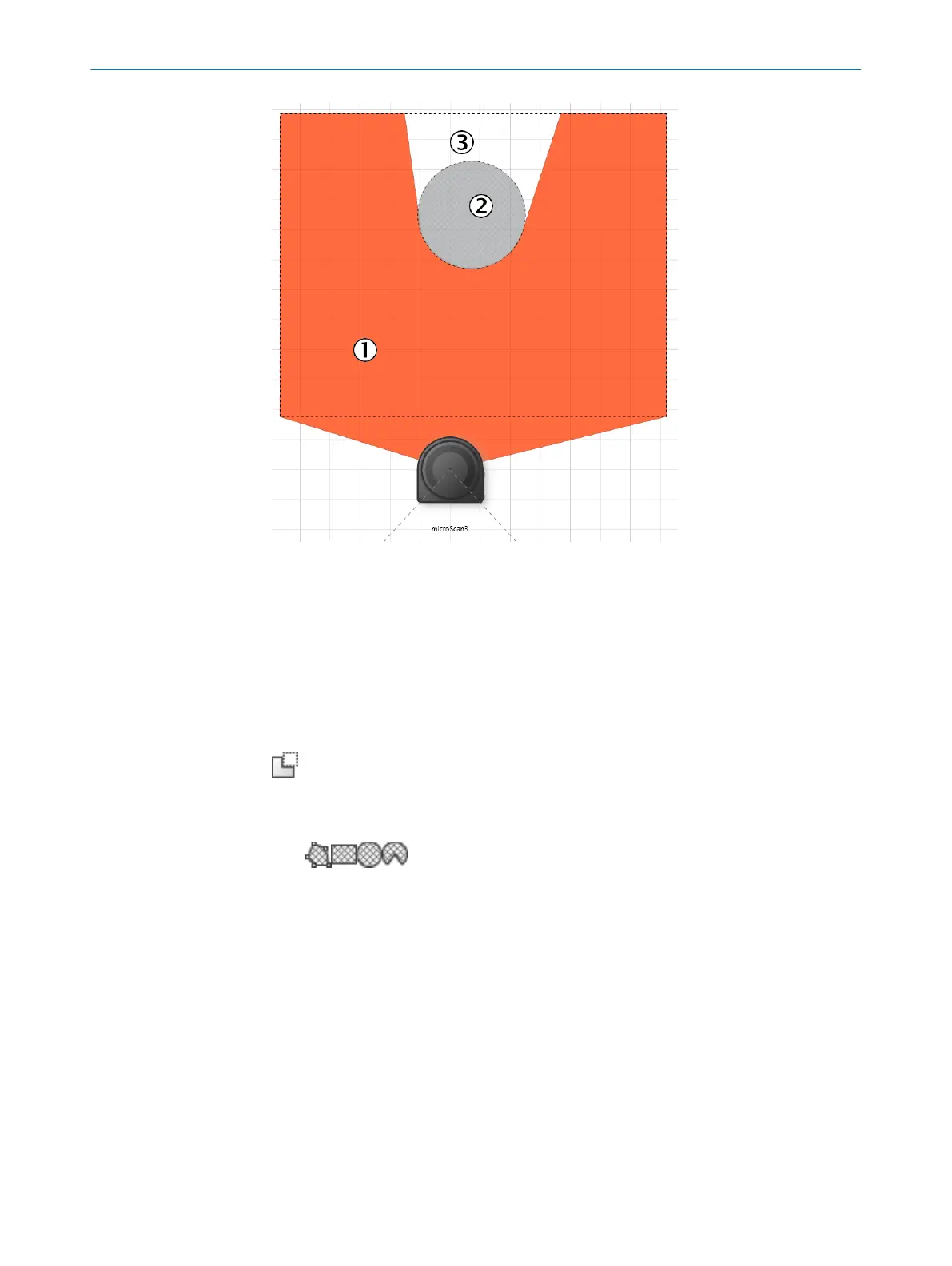

Figure 75: Area that cannot be monitored
1
Protective field
2
Marked column
3
Area that cannot be monitored
Drawing masked areas
Y
ou draw objects that limit the field of view of the safety laser scanner as masked
areas. The masked area casts a shadow, so unmonitored areas may be created. The
field editor shows the shadowing of the masked area 3.
1. Click on the Mask ar
eas tool.
✓
The tools you can use to draw fields are shown crosshatched.
2. Choose a drawing tool.
3. Draw the masked area.
✓
The masked area is crosshatched in gray.
✓
The field editor shows the shadowing of the masked area.
7 CONFIGURATION
126
