Resolution 50 ms scan cycle time 40 ms scan cycle time
30 mm 4.50 m 3.00 m
Scanning range of the reference contour field
T
he effective scanning range of the reference contour field is the same as the protec‐
tive field range.
Scanning range of the contour detection field
T
he effective scanning range of the contour detection field is the same as the protective
field range.
Range for warning fields
F
or non-safety applications (warning fields), the safety laser scanner has a larger scan‐
ning range than the maximum protective field range. The requirements for size and
remission of objects to be detected are illustrated in the following graphs as a function
of the desired scanning range.
5 10 20 50 D [m]
d [mm]
1000
500
200
100
50
20
10
2
1

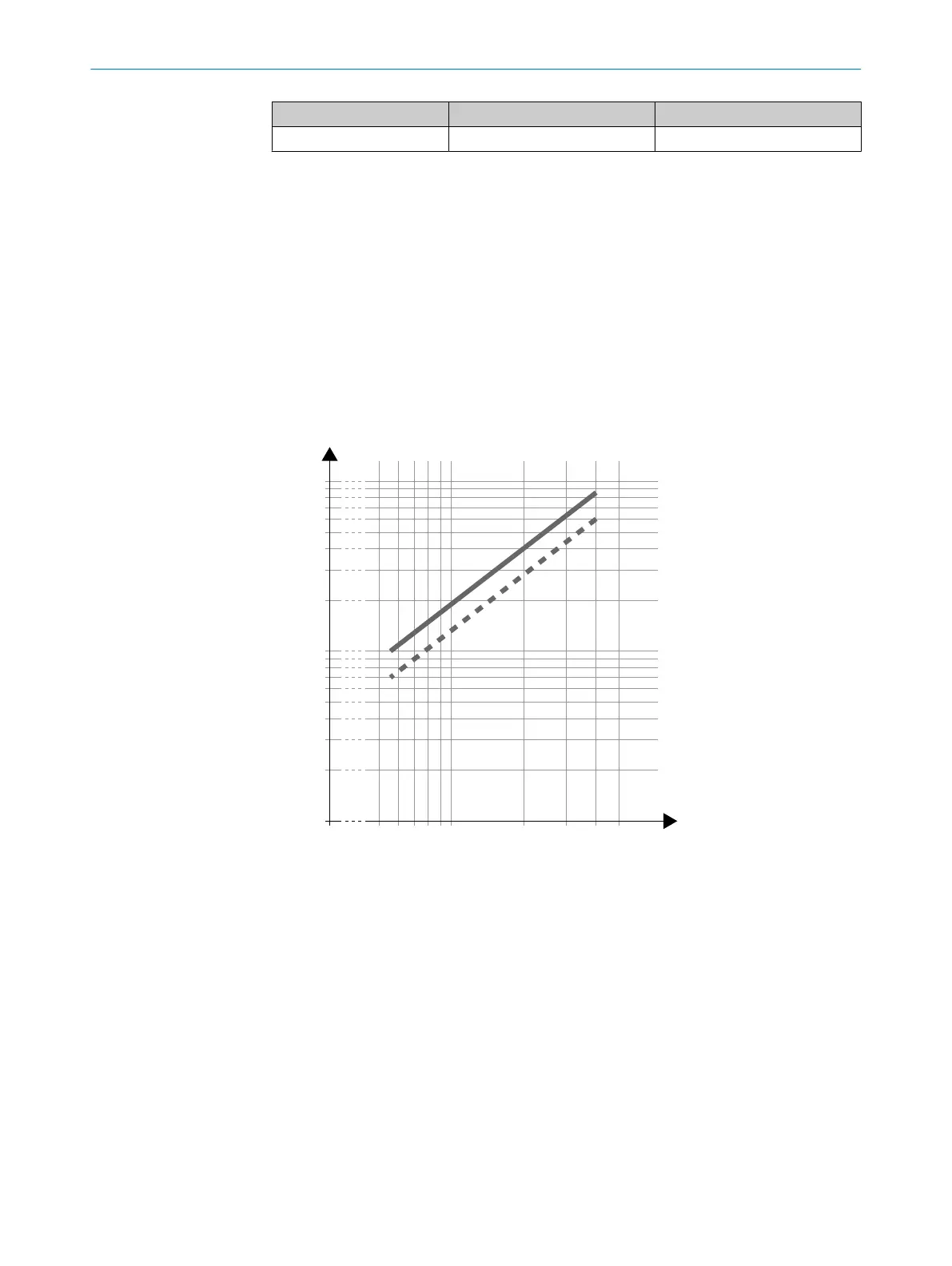

Figure 97: Scanning range and object size for warning fields (devices with a max. protective field
r
ange of 4.0 m and devices with max. protective field range of 5.5 m)
d Required minimum size of the object in mm
D Range in m
1
Scan cycle time = 30 ms
2
Scan cycle time = 40 ms
13 T
ECHNICAL DATA
190
O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O 8025424/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
