5 10 20 50 D [m]
d [mm]
1000
500
200
100
50
20
10
2
3
64

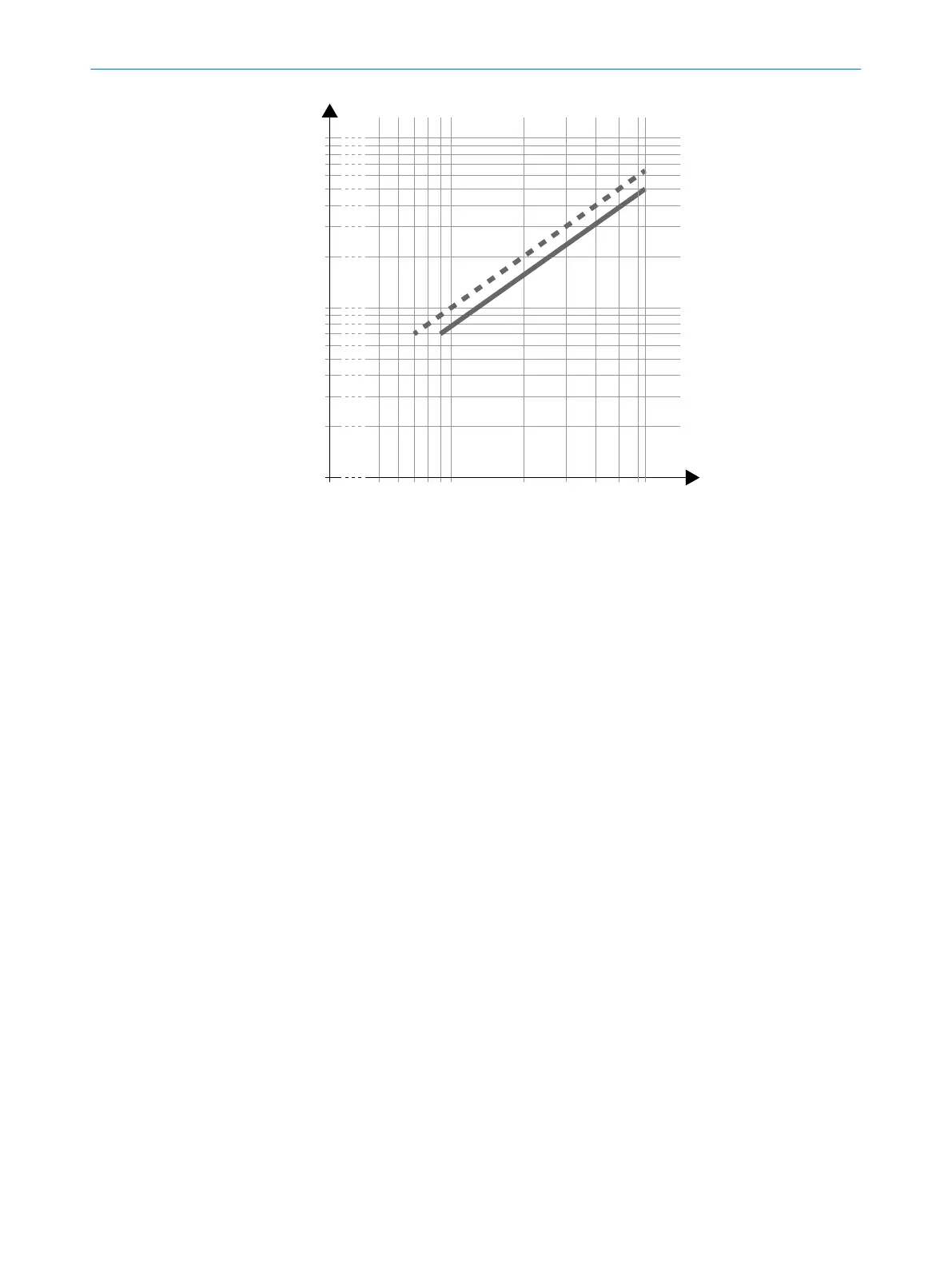

Figure 98: Scanning range and object size for warning fields (devices with a max. protective field
r
ange of 9.0 m)
d Required minimum size of the object in mm
D Scanning range in m
2
Scan cycle time = 40 ms
3
Scan cycle time = 50 ms
TECHNICAL DATA 13
