SICK microScan3 Pro I/O - How the Restart Interlock Works (1): no One in Protective Field, Machine Operates; How the Restart Interlock Works (2): Person Detected in Protective Field, Safety Out- Put in off State

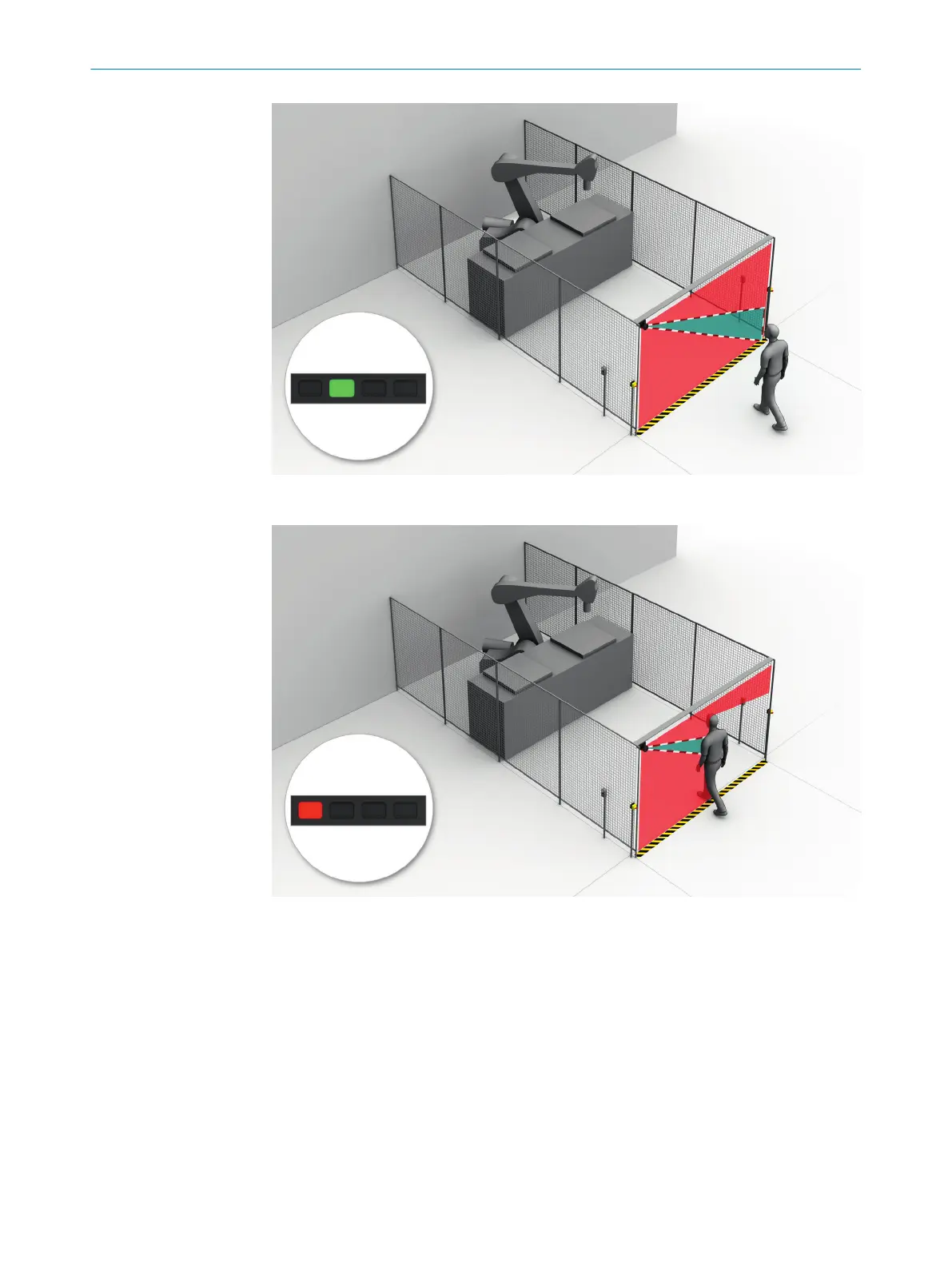

Figure 43: How the restart interlock works (1): no one in protective field, machine operates
Figure 44: How the restart interlock works (2): person detected in protective field, safety output
in OFF state
