The following mounting method has the advantage that both safety laser scanners can

be mount

ed at a similar height. Nonetheless, there is enough space between the scan

planes.

≥ 100 mm

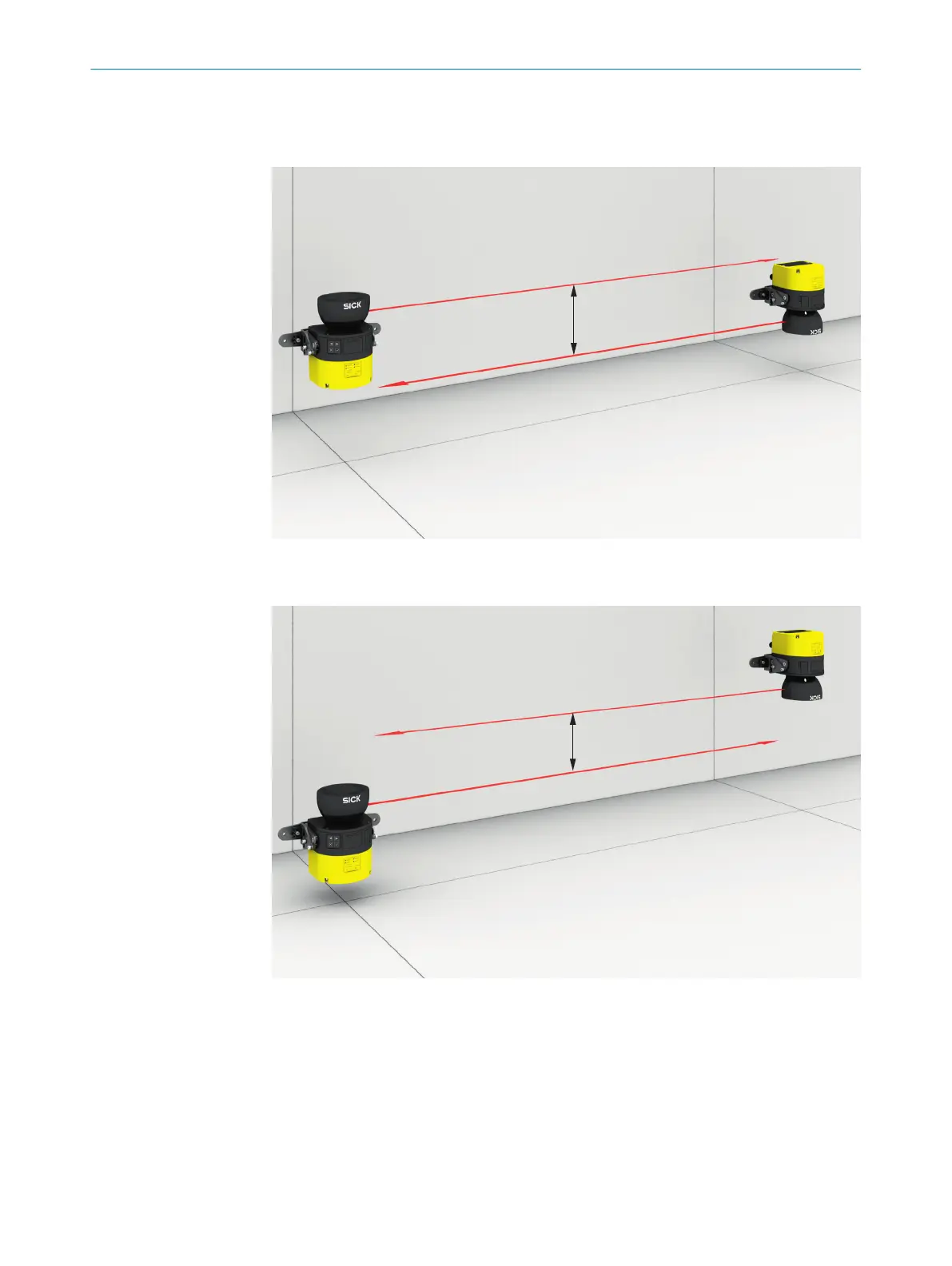

Figure 104: Mounting the upper safety laser scanner with the optics cover facing upward and

mounting the lower safety laser scanner with the optics cover facing downward

≥ 100 mm

Figure 105: Mounting the upper safety laser scanner with the optics cover facing downward and

mount

ing the lower safety laser scanner with the optics cover facing upward

Mount several safety laser scanners crosswise

If y

ou tilt opposite safety laser scanners with respect to one another, both safety laser

scanners must be tilted upward. (If mounted upside down, both safety laser scanners

must be tilted downward.)

In any event, ensure that the protective field is at the right height so that crawling

beneath and climbing over are prevented and so that the set resolution matches the

mounting height.

18 ANNE

218

O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O 8025424/1ELL/2022-01-21 | SICK

Subject to change without notice
