SICK microScan3 Pro I/O User Manual

≥ 2°

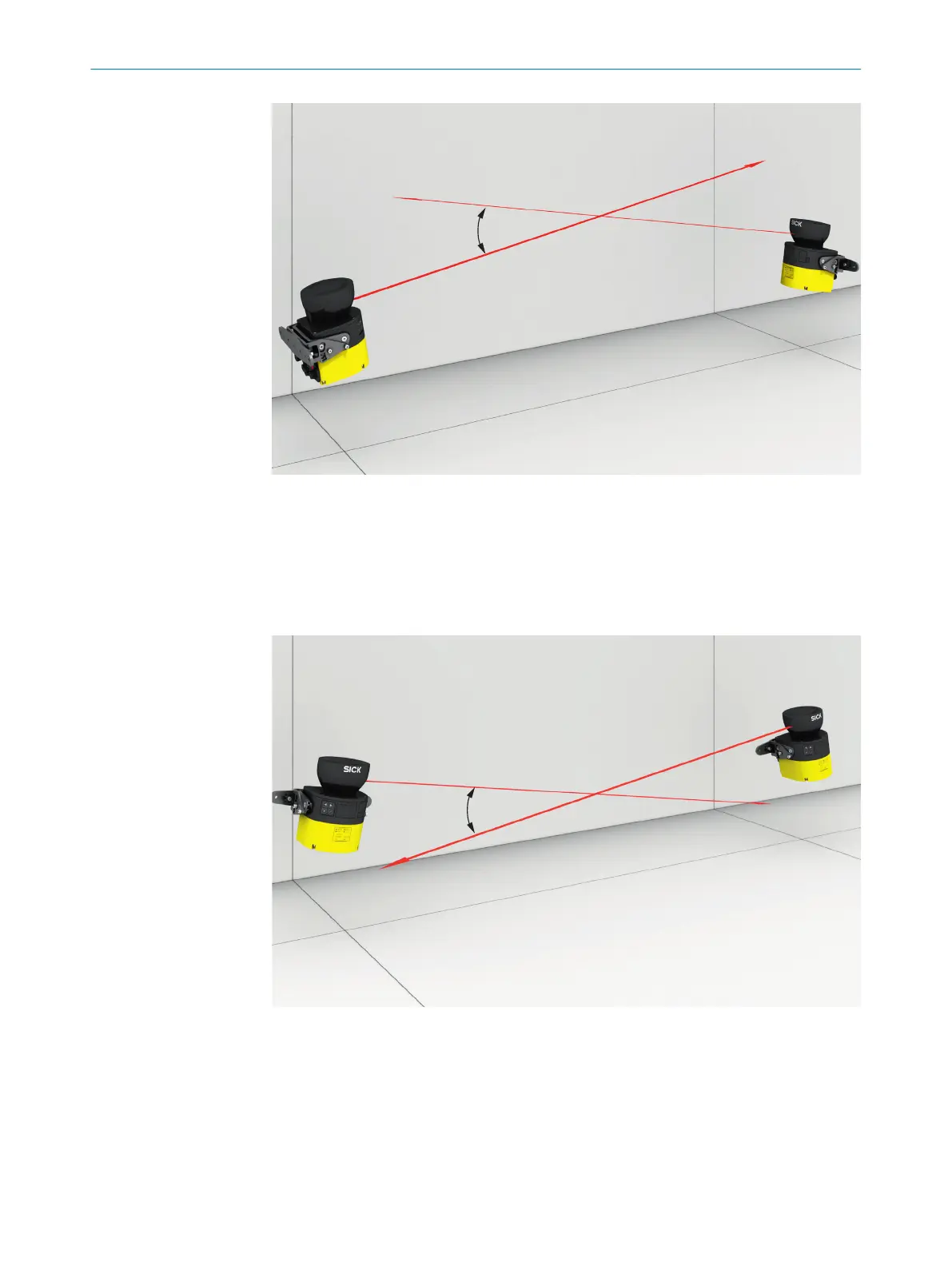

Figure 106: Mounting 2 safety laser scanners opposite one another
If you tilt neighboring safety laser scanners toward one another, the safety laser scan‐
ners can be tilted upward or downward.
In any event, ensure that the protective field is at the right height so that crawling
beneath and climbing over are prevented and so that the set resolution matches the
mounting height.
≥ 2°
Figure 107: Mounting 2 safety laser scanners next to one another
ANNEX 18
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
219
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
