SICK microScan3 Pro I/O - Page 193

5 10 20 50
R [%]
500
200
100
50
20
10
5
2
1
6
5
3
2
4
1
64 D [m]

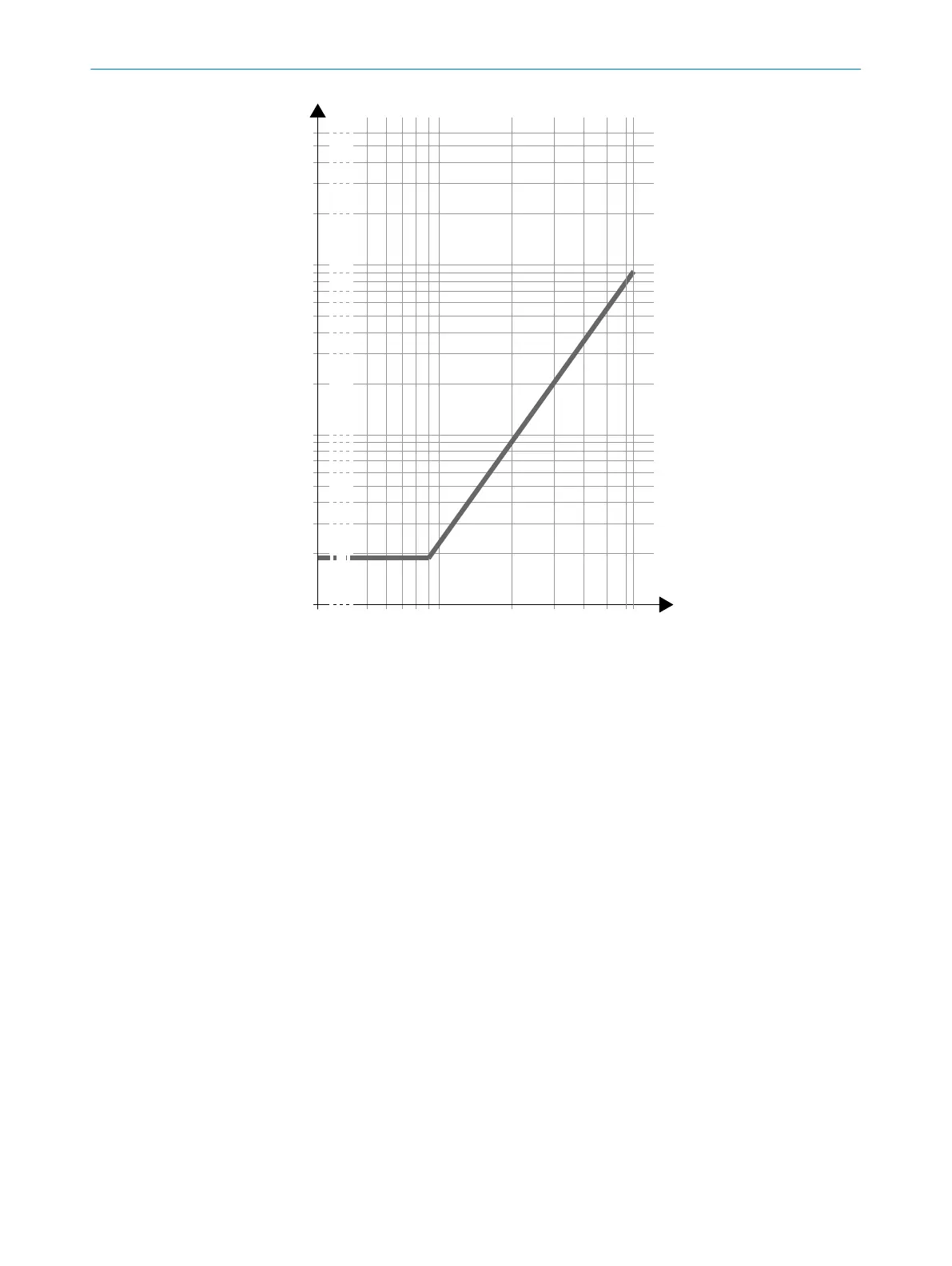

Figure 100: Scanning range and required remission for warning fields (devices with a max.
pr
otective field range of 9.0 m)
R Required minimum remission in %
D Scanning range in m
1
Black shoe leather
2
Matt black paint
3
Gray cardboard
4
Writing paper
5
White plaster
6
Reflectors > 2,000%, reflective tapes > 300%
TECHNICAL DATA 13
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
193
