Engineering via SICAM WEB
358 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
Example: Process data measured value

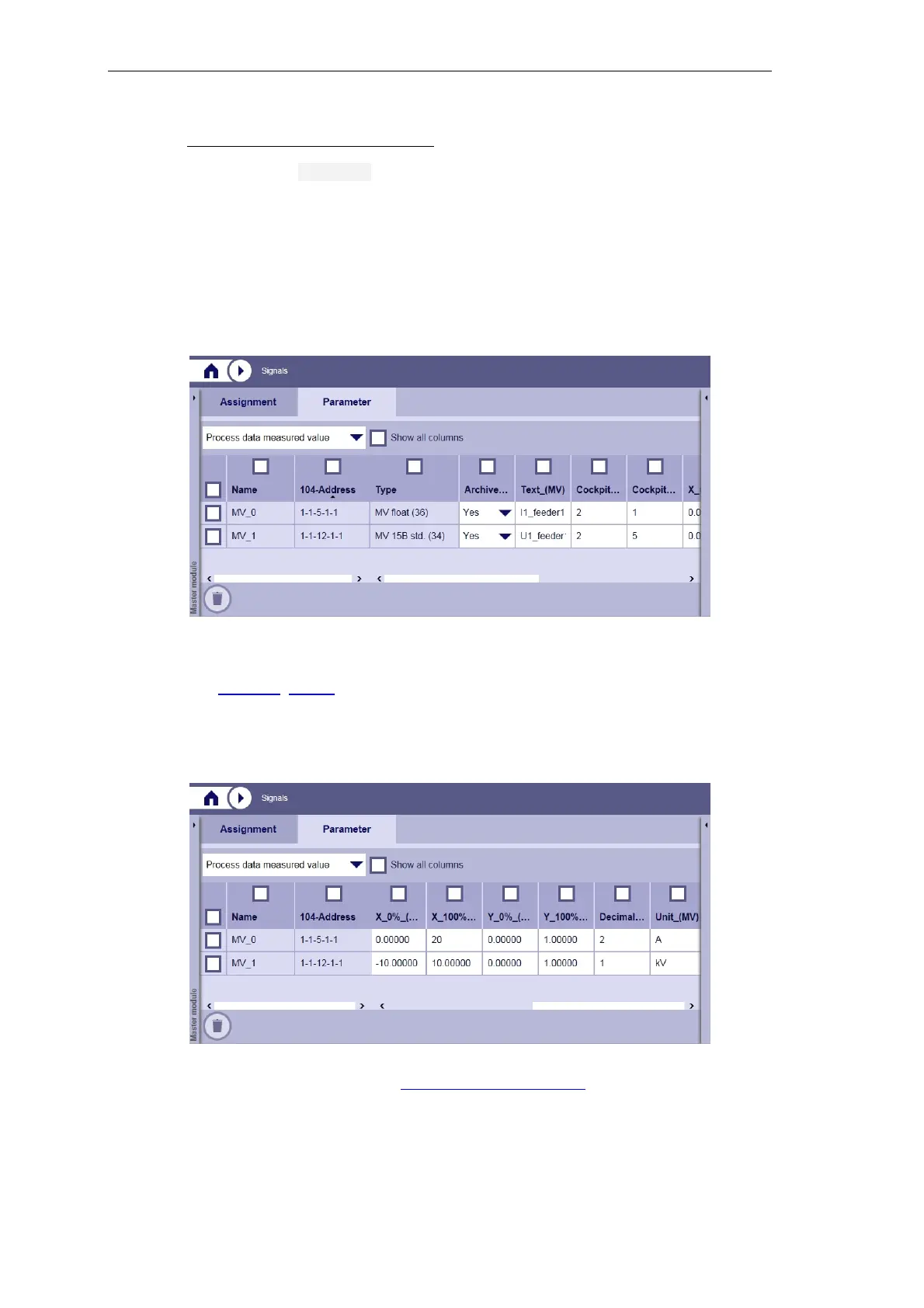

• Under the tab Parameter, select the category “Process data measured value”
All signals assigned to that category are displayed.
• Enter for each signal the desired texts for name and states
• Select for each signal, whether it is to be logged in the process data archive
• Assign for each signal the desired group number and the position within the group for the
process display in the cockpit
In this example, 2 measured values are assigned to the group positions 1 and 5. When the
positions 2, 3 and 4 are not used, at this place an empty line will be displayed on the LCD
(see 11.1.2.4.5, Cockpit).
• Enter the measuring range for the value adaptation
• Enter the number of decimal places for the display
Description of the parameters see Process data measured value.
