System description
SIMOCODE pro
1-118 GWA 4NEB 631 6050-22 DS 03

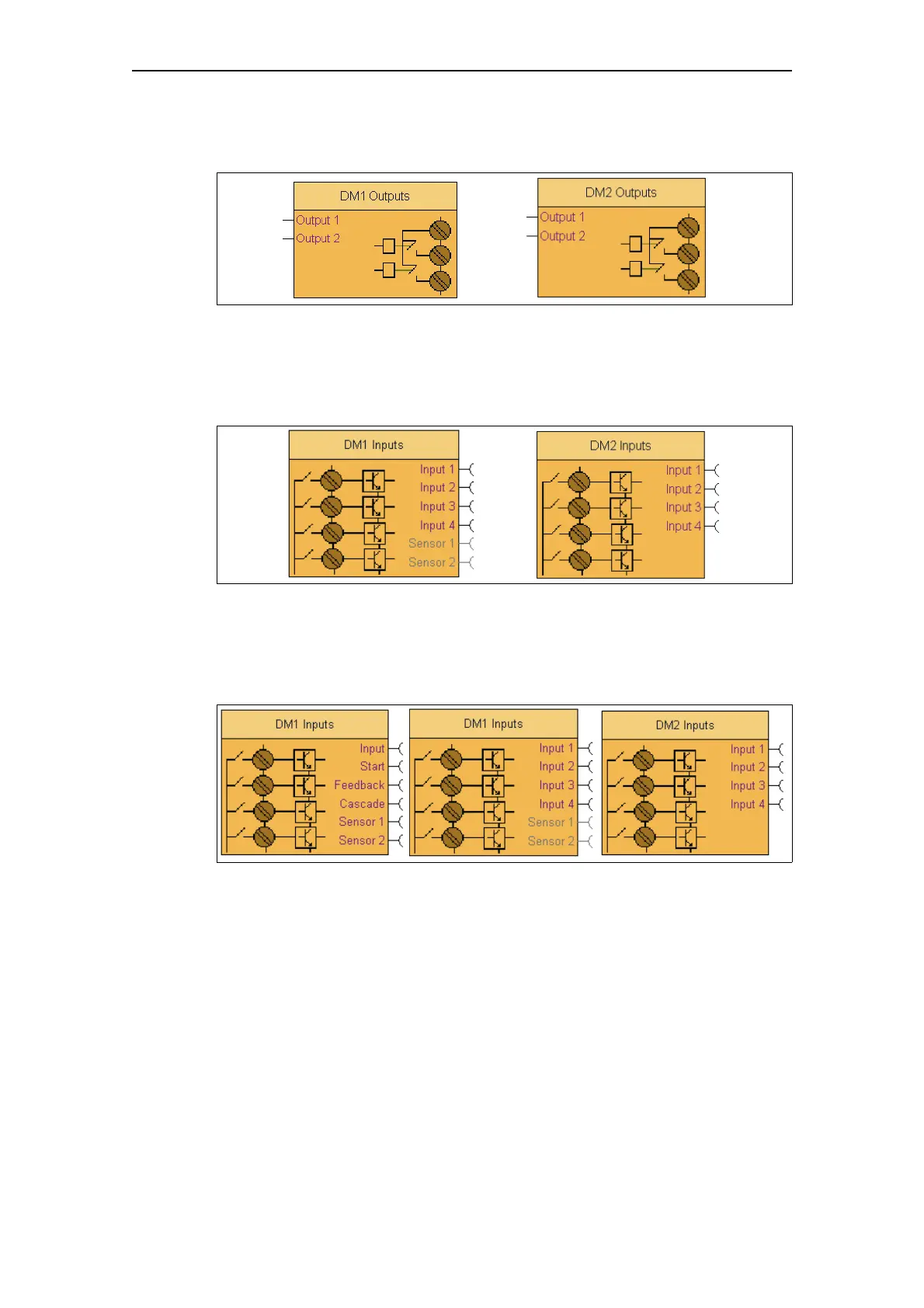

DM1(2) Outputs
Fig. 1-54: DM1(2) Outputs
See Chapter 6.4.
DM1(2) Inputs
Fig. 1-55: DM1(2) Inputs
See Chapter 7.4.
DM1(2) Inputs, DM-F = DM-F Local or DM-F PROFIsafe
Fig. 1-56: DM1(2) Inputs, DM1 = DM-F Local or DM-F PROFIsafe
See Chapter 7.4.

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
