1.5.6 Additional signal processing with freely-programmable logic modules
If you need any other additional functions for your application, you can use
the freely-programmable logic modules. These can be used, for example, to
implement logical operations, time relay functions and counter functions.
Furthermore, limit monitors can monitor any value in SIMOCODE pro for
undershooting or overshooting of a freely selected limit.
Depending on the device series, the system offers several, freely-
parameterizable logic modules:
1) Only for basic unit 2 from version *E03*
Detailed description: See Chapter 11 "Logic modules".
SIMOCODE
Logic module pro C (BU1)
Number
pro V (BU2)
Number
Truth Tables 3 Inputs/1 Output 3 6
Truth Tables 2 Inputs/1 Output — 2
Truth Tables 5 Inputs/2 Outputs — 1
Timer 2 4
Counters 2 4
Signal Conditioners 2 4
Non-volatile Elements 2 4
Flashing 3 3
Flickering 3 3
Limit Monitor — 4
Calculation modules (Calculator)
1)
— 2

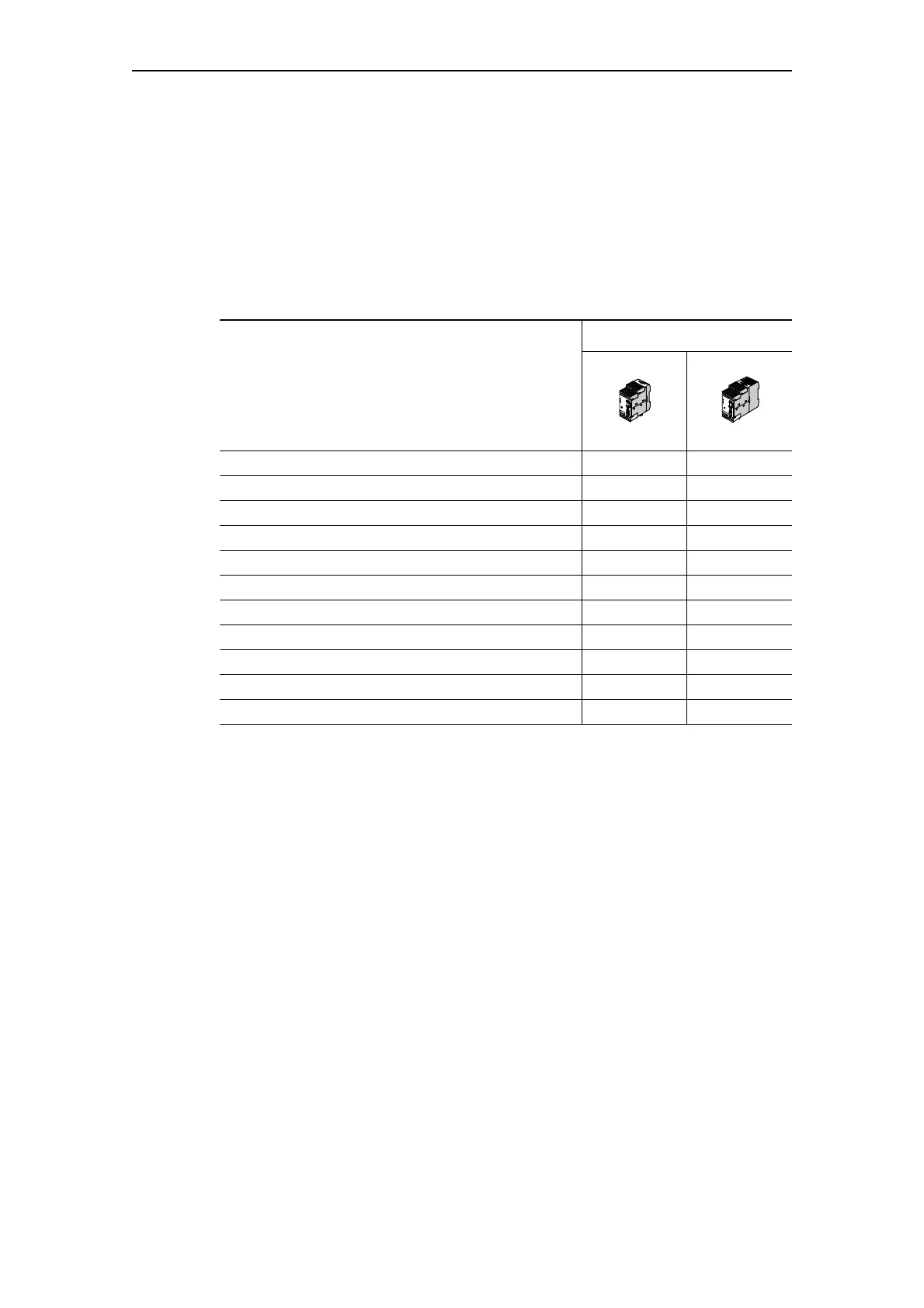

Table 1-5: Freely-programmable logic modules
