Mounting, wiring, interfaces
SIMOCODE pro
13-10 GWA 4NEB 631 6050-22 DS 03
13.2.6 Exchanging a 3UF52 operator panel for a 3UF720 operator panel
To exchange a 3UF52 operator panel for the smaller 3UF720 operator panel,
proceed as follows:
Table 13-2: Exchanging a 3UF52 operator panel for a 3UF720 operator panel

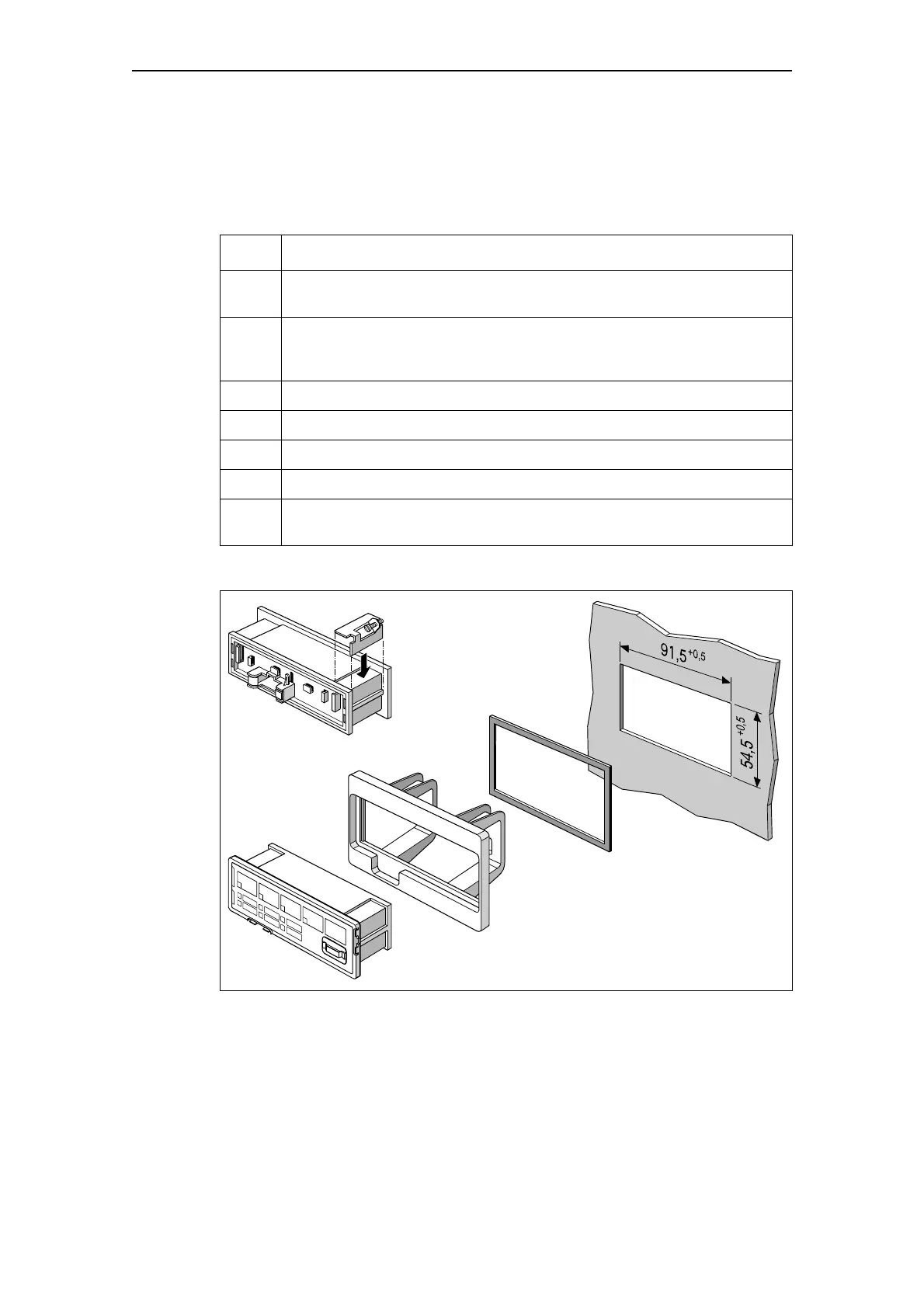

Fig. 13-6: Mounting the operator panel adapter (1)
Step Description
1 Unscrew the four mounting bracket screws and remove the 3UF52 operator
panel from the front panel or switchgear cabinet door.
2 Ensure that the dimensions of the cutout in the front panel or switchgear
cabinet door measure 91.5
+0.5
mm (width) and 54.5
+0.5
mm (height)
(see Fig. 13-6)
3 Slide the seal provided onto the operator panel adapter (see Fig. 13-6).
4 Position the operator panel adapter in the cutout.
5 Position the operator panel in the adapter.
6 Snap the four mounting brackets onto the operator panel
7 Lock the operator panel in position by tightening the four mounting bracket
screws (see Fig. 13-7 and safety guidelines!).
