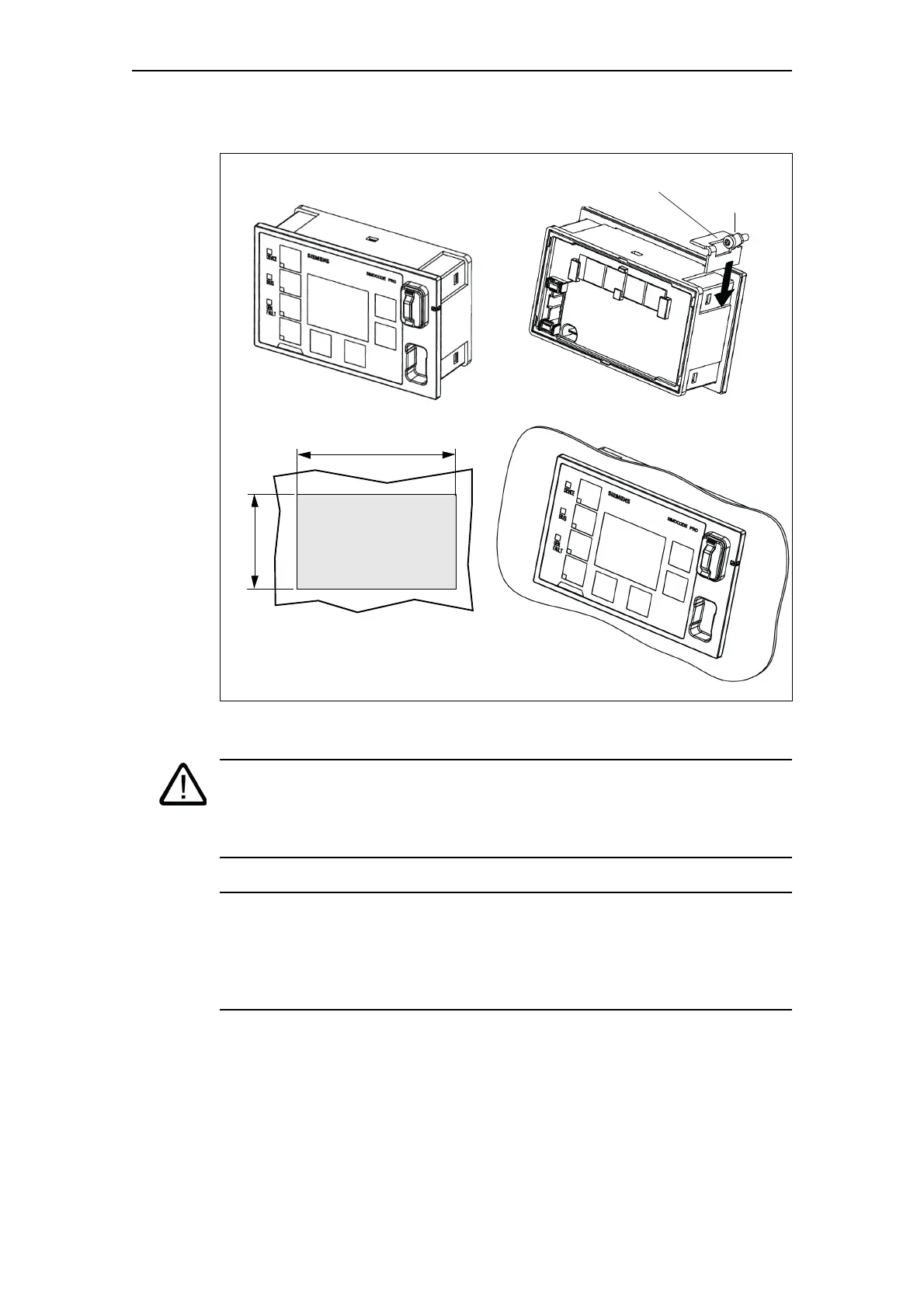

Fig. 13-5: Mounting the operator panel with display
Warning
To ensure IP54 tightness and the correct functionality of the operator panel,
the tightening torque of the screws provided must not be set too high when
mounting and the seal provided must be applied.
Note
Only a connecting cable is required for connecting the operator panel with
display to SIMOCODE pro (see Chapter 1.6 "Overview of system
components"). Additional wiring for the power supply or ground is not
required.
91.5
+0.5
54.5
+0.5
Cutout
Front panel
switchgear cabinet door
etc.
Operator panel with display
4 x 0.15 + 0.05 Nm
Mounting bracket

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
