Dimension drawings
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
C-15
C.6 Digital modules DM-F Local, DM-F PROFIsafe

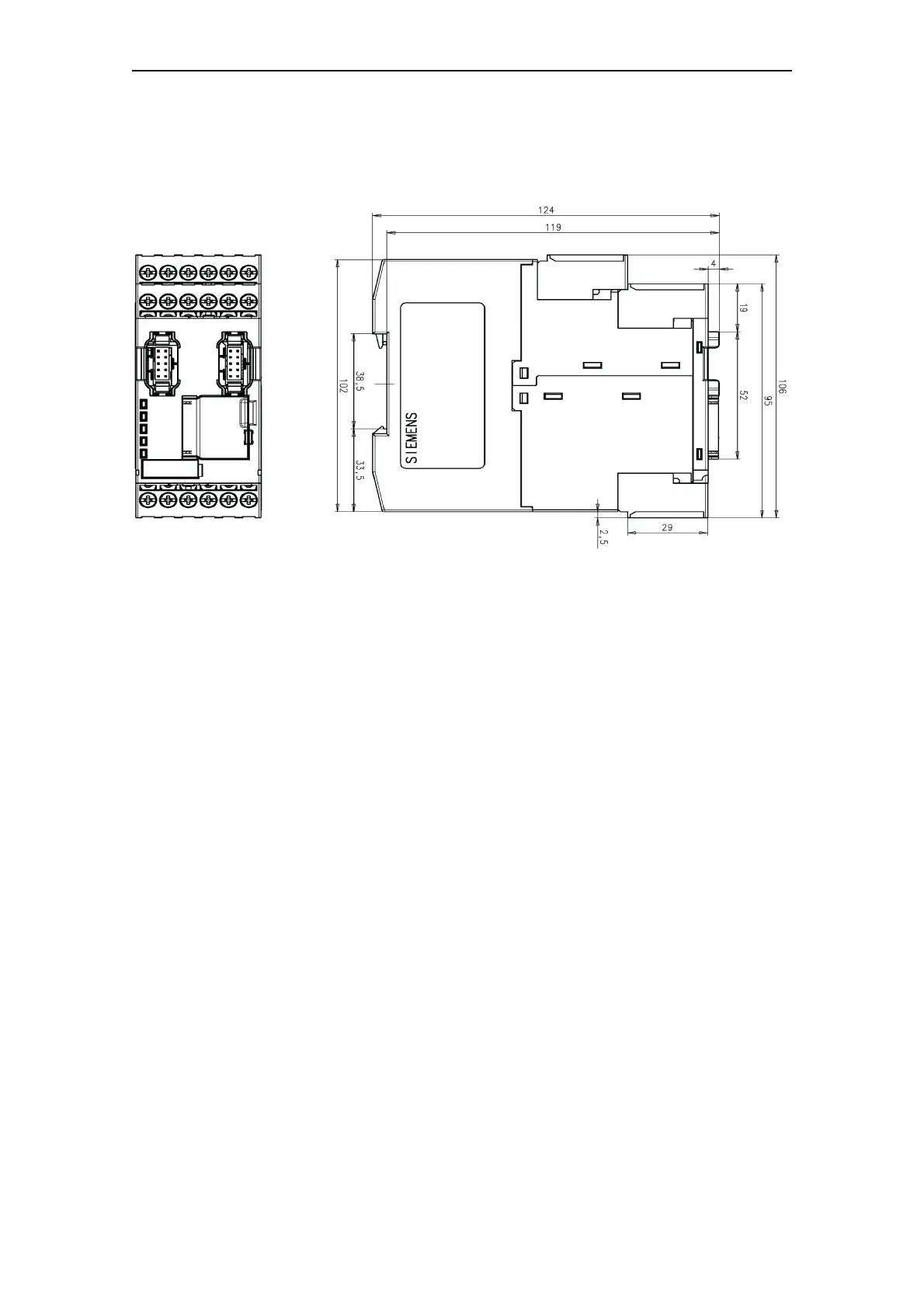

Fig. C-16: Digital modules DM-F Local, DM-PROFIsafe
