Siemens SIMOCODE pro System Manual

Mounting, wiring, interfaces
SIMOCODE pro
13-46 GWA 4NEB 631 6050-22 DS 03
13.5 PROFIBUS DP to a 9-pole SUB-D socket
The PROFIBUS DP can only be connected to the basic unit.
Notice
The 9-pole SUB-D connection is an alternative to the A/B terminals!
Sequence for connecting PROFIBUS DP to the basic unit
Proceed as follows:
Table 13-18: Wiring the removable terminals of the digital module

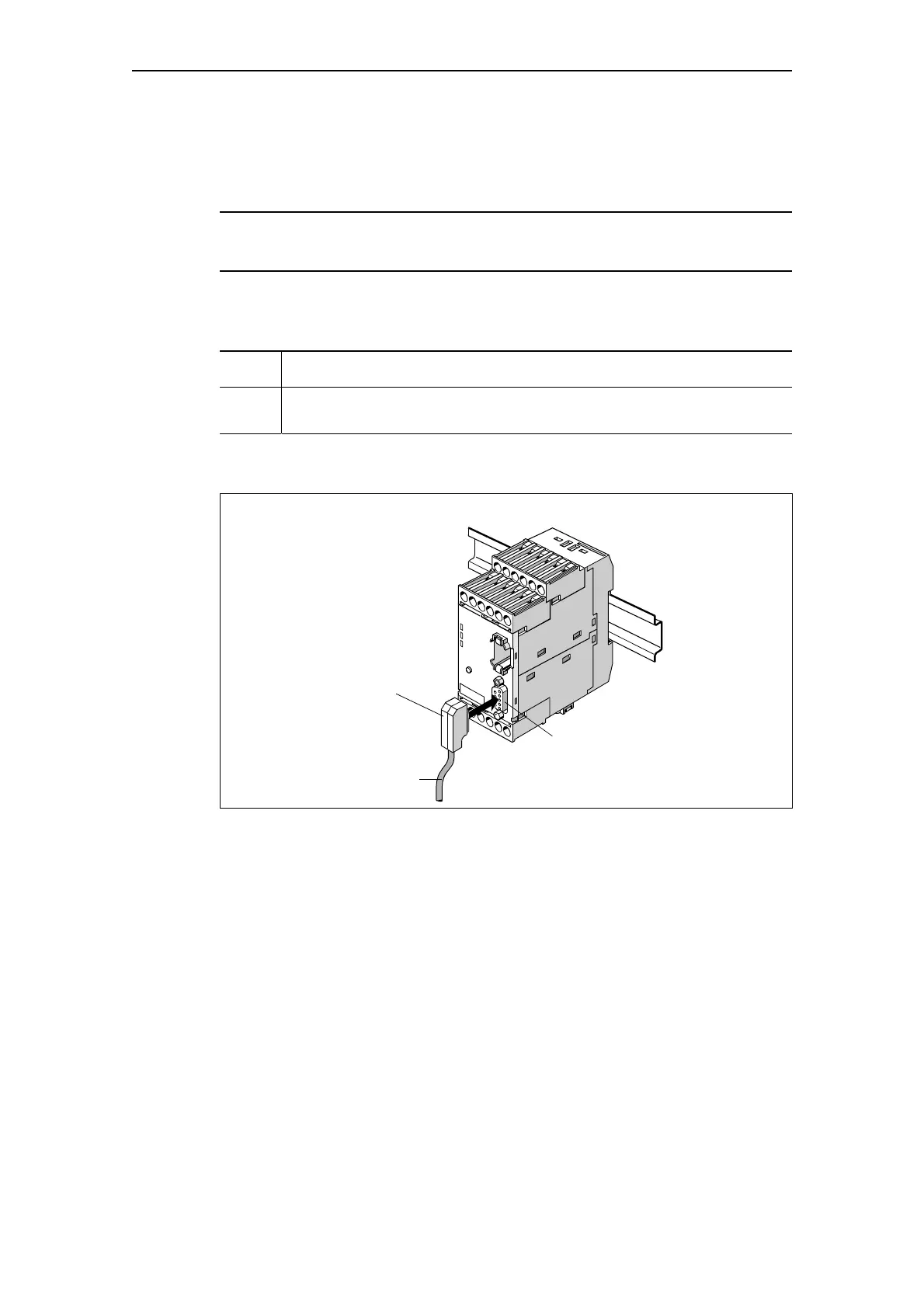

Fig. 13-33: Connecting the PROFIBUS DP to the 9-pole SUB-D socket
Step Description
1 Connect the PROFIBUS DP cable with the 9-pole SUB-D plug to the
PROFIBUS DP interface.
Example: SIMOCODE pro C
PROFIBUS DP cable
PROFIBUS DP interface
9-pole
SUB-D plug
9-pole SUB-D socket

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
