Siemens SIMOCODE pro System Manual

Mounting, wiring, interfaces
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
13-7
13.2.4 Current/voltage measuring modules
You can attach these system components as follows:
• Current/voltage measuring modules up to 100 A: Standard mounting rail
mounting or screw attachment with mounting lugs (Order No: 3RP1900-0B)
and screws for mounting on a level surface. These mounting lugs are only
suitable for current/voltage measuring modules (and current measuring
modules)! For current/voltage measuring modules up to 25 A you will require
an additional 25 mm spacer.
• Current/voltage measuring modules up to 200 A: Standard mounting rail or
screw attachment.
• Current/voltage measuring modules up to 630 A: Screw attachment.

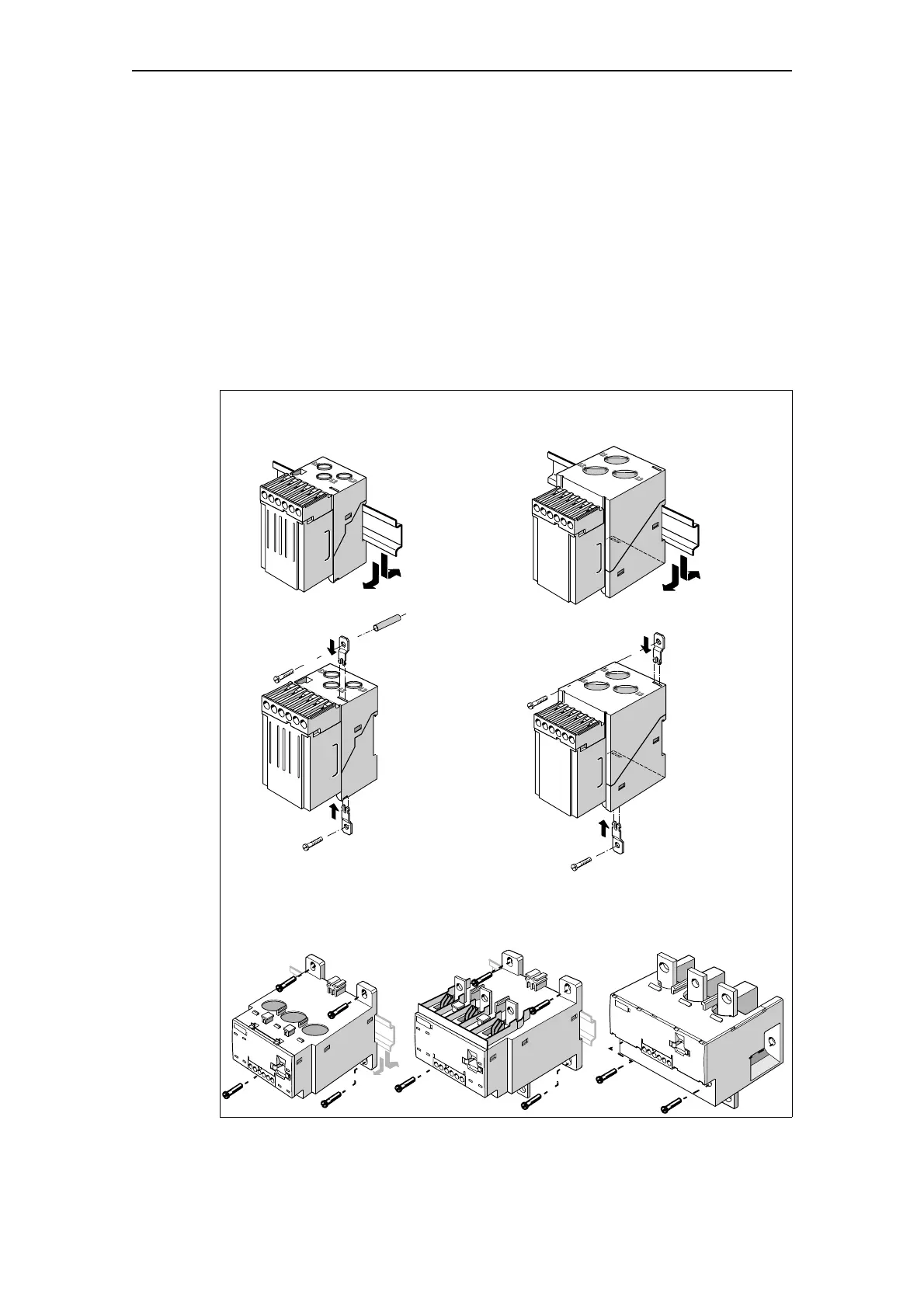

Fig. 13-3: Mounting the current/voltage measuring modules
3UF7110-1AA00-0
3UF7111-1AA00-0
25 mm spacer
3RP1900-0B
Snap-on mounting
3UF7112-1AA00-0
Screw attachment
45 mm width
55 mm width
3UF7113-1AA00-0 3UF7113-1BA00-0 3UF7114-1BA00-0
0.3 A up to 3 A
2.4 A up to 25 A 10 A up to 100 A
20 A up to 200 A 20 A up to 200 A 63 A up to 630 A
screw attachment
Snap-on mounting or
screw attachment
Snap-on mounting or
screw attachment
3RP1900-0B

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
