System description
SIMOCODE pro
1-34 GWA 4NEB 631 6050-22 DS 03

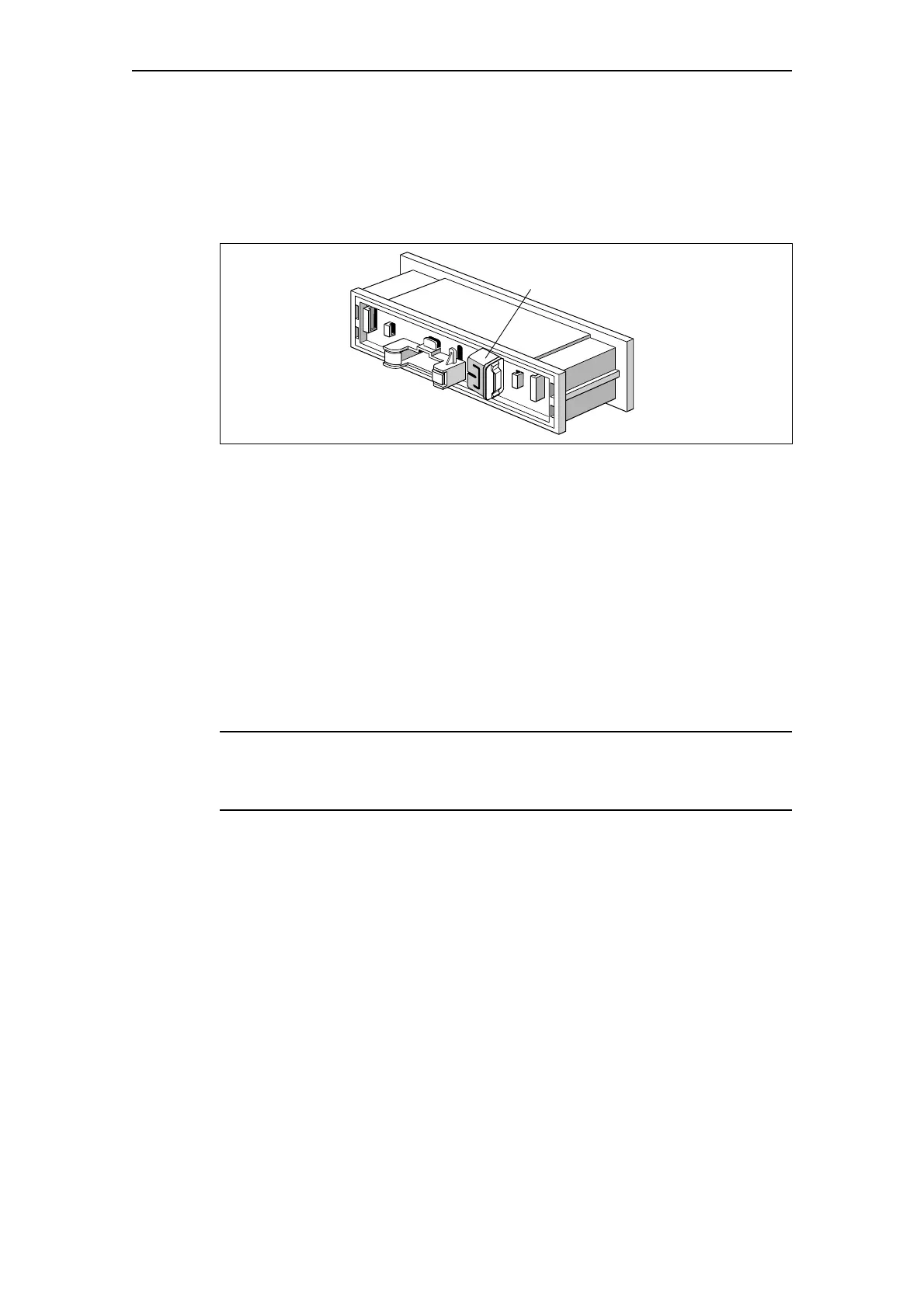

Memory module "park position":
The memory module can be protected from unauthorized use by "parking" it
on the rear of the operator panel inside the switchgear cabinet.
In this case, the storage clips for the labeling strips cannot be used.
Fig. 1-10: Memory module "park position"
1.7.3 Operator panel with display (OPD) for SIMOCODE pro V
Apart from the standard operator panel (OP), an optional operator panel with
display (OPD) is also available for SIMOCODE pro V. This operator panel can
display current measured values, operating data, diagnostic data or status
information of the motor feeder on the switchgear cabinet. The operator
panel can only be used with basic unit 2 (SIMOCODE pro V) from version
*E03*. It also contains all the status LEDs that are present on the basic unit
and facilitates access to the system interface from outside the switchgear
cabinet. The motor can be controlled via the buttons on the operator panel.
Current measured values, status information, fault messages or the device-
internal error protocol are simultaneously shown on the display.
Notice:
The operator panel can only be used with a basic unit 2 (SIMOCODE pro V)
from version *E03*.
Overall, the following are available:
• 4 freely parameterizable buttons for controlling the motor feeder
• 4 buttons for display menu navigation, 2 of these are softkeys with various
functions (e.g. Test/Reset)
• 2 system interfaces (front and rear)
• 7 LEDs, 4 of which are freely-parameterizable (4 green LEDs integrated in the
motor control, primarily for feedback regarding the switching state, e.g. ON,
OFF, LEFT, RIGHT, etc.)
Memory module in the "park position"
