Siemens SIMOCODE pro System Manual

System description
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
1-33

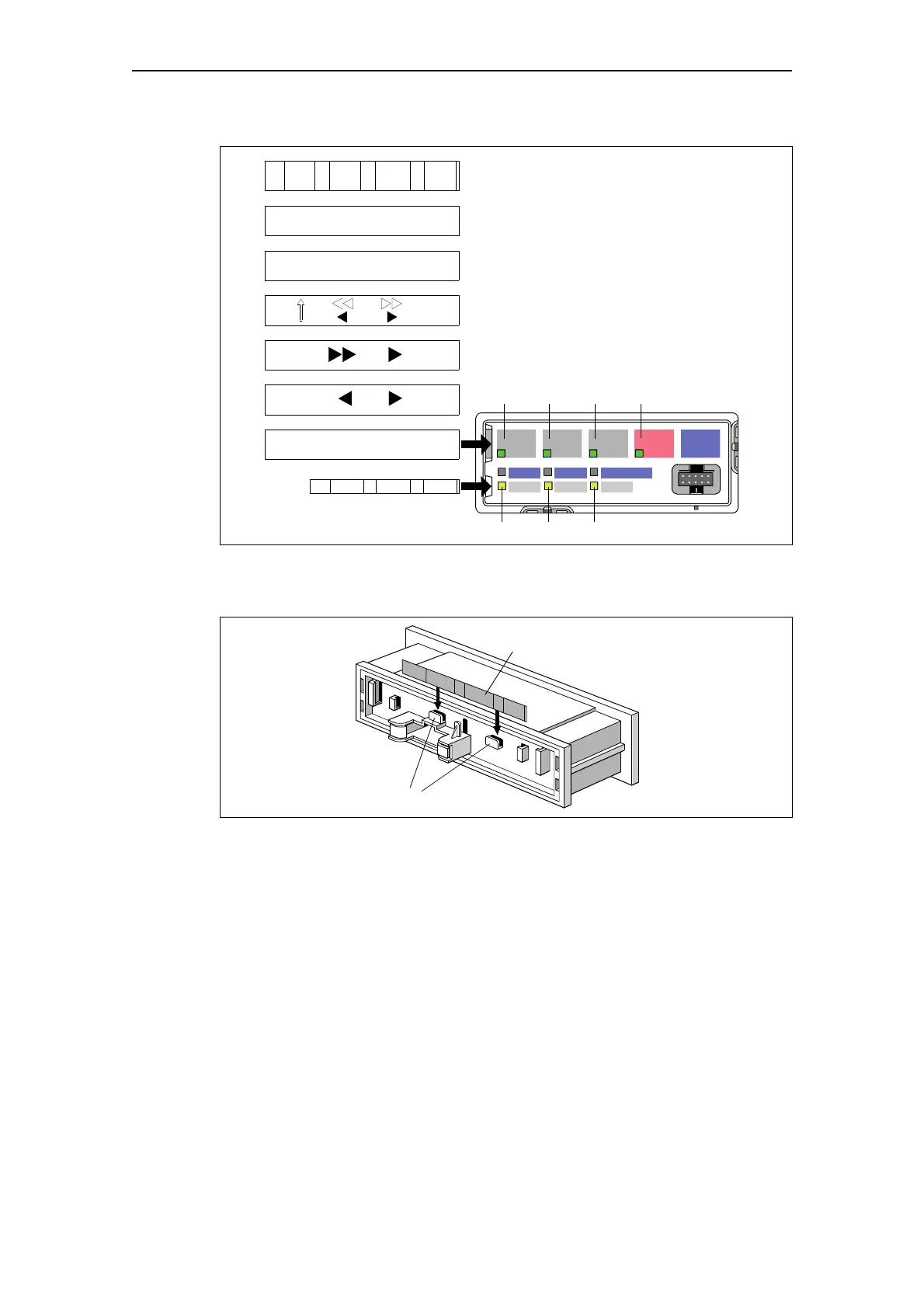

Fig. 1-8: Labeling strips for operator panel buttons and LEDs
Unused labeling strips can be stored on the back of the operator panel:
Fig. 1-9: Storage clips for labeling strips
0
DEVICE
BUS
GEN. FAULT
Button 1 Button 2 Button 3
TEST/
RESET
Button 4
LED 1 LED 2 LED 3
0
0
0
I
CLOSE OPEN
STOP
CLOSEOPEN
Storage clips
Labeling strips

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
