5.1.3 External earth-fault monitoring (with summation current transformer)
Response
Here you can set the response of SIMOCODE pro to an external earth fault:
See also "Tables of responses of SIMOCODE pro" in Chapter "Important
information".

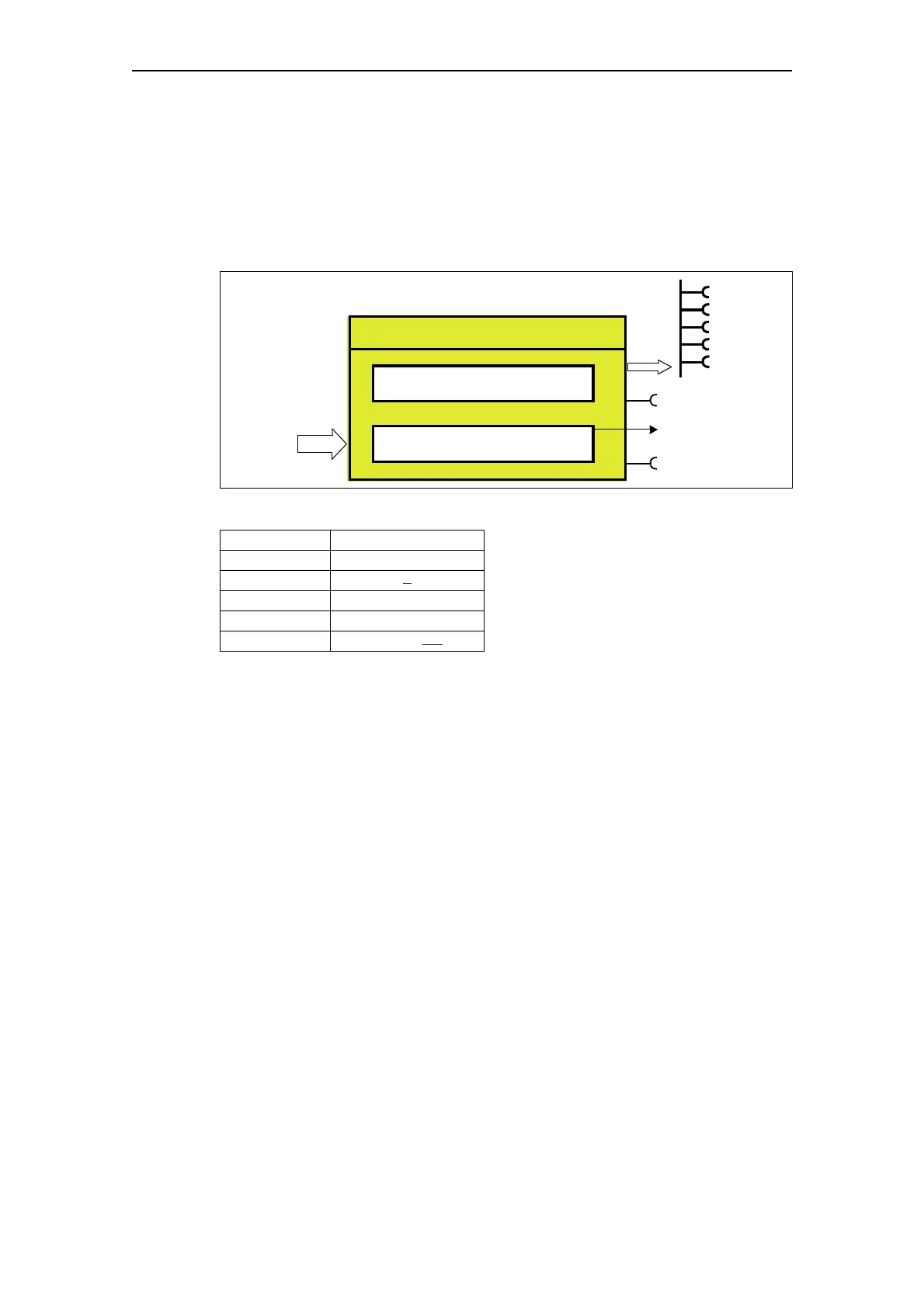

Fig. 5-2: "Earth-fault Monitoring" function block
Table 5-2: "External earth-fault monitoring" response
1) Further delay of the summation current transformer delay
If the response is set to "Signaling" the "External earth fault" event will be
generated in the case of an earth fault.
If the response is set to "Warning", the "Warning external earth fault" event
will be generated in the case of an earth fault.
Activity
Unless deactivated, this function is always active, independent of whether
the motor is running or not (operating state "ON").
Response External earth fault
Deactivated -
Signaling X
Warning X
Tripping X
Delay 0 - 25.5 s (0.5
)
1)
Event "External
Tripping
QE1
QE2
QE3
QE4
QE5
Current from
Summation current
transformer/
Earth-fault module
Earth-fault monitoring
Internal earth fault
External earth fault
Response/delay
See Table 5-2
earth fault"
Event "Warning
external earth fault"

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
