5.6 0/4-20 mA monitoring
Description
With the aid of an analog module, SIMOCODE pro is capable of measuring
and monitoring further process variables as desired.
For example, the fill level can be monitored to protect a pump against dry
operation, or a differential pressure transducer can be used to monitor the
degree of pollution in a filter. If the fill level undershoots a specified level,
the pump can be switched off and, if a specific differential pressure value is
exceeded, the filter must be cleaned.

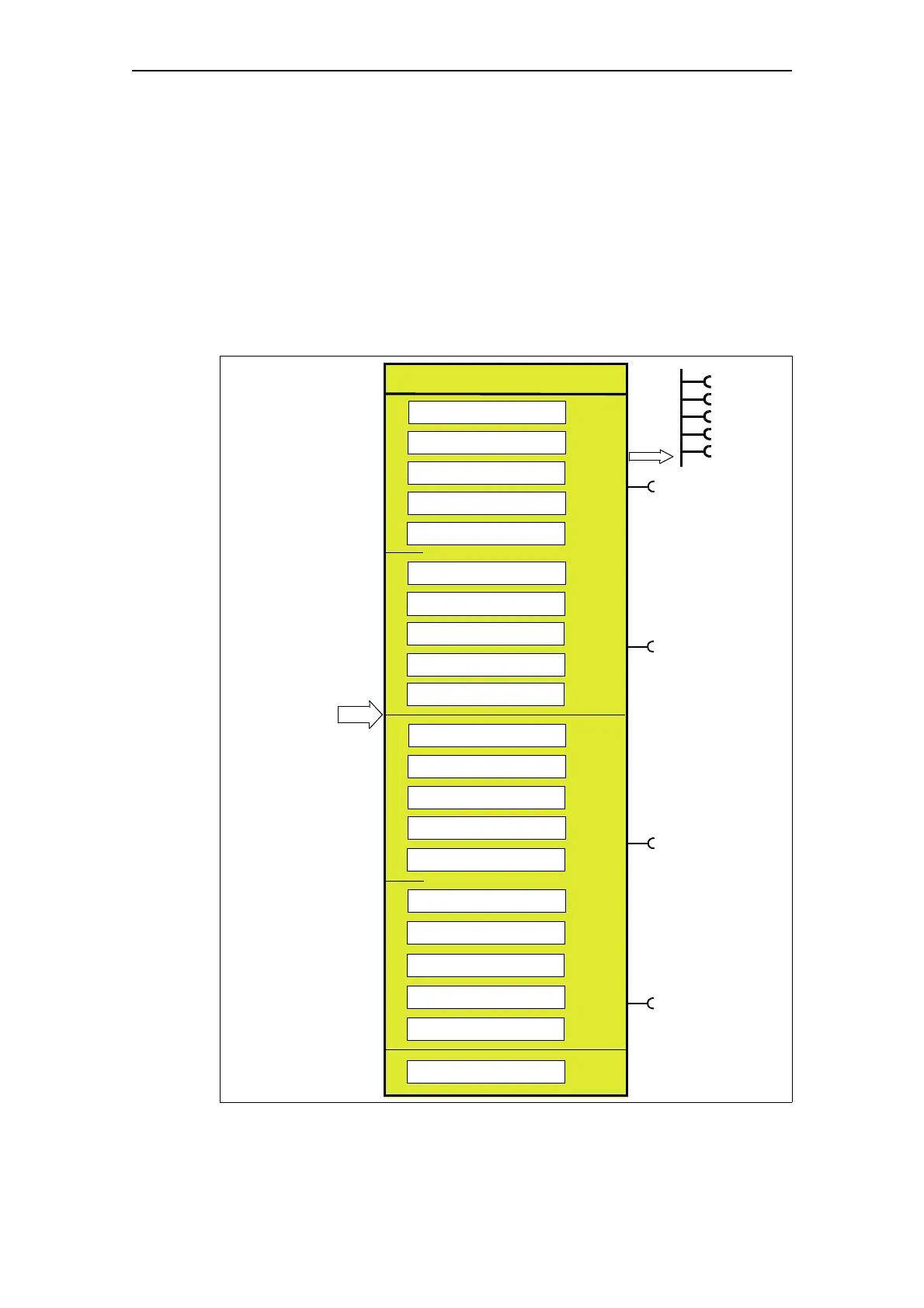

Fig. 5-7: "Monitoring 0/4-20 mA" function block
Trip level 0/4-20 mA >
Trip level activity
Response at trip level
Trip delay
Event
See
Table 5-13
Monitor 0/4-20 mA
- Trip level
Tripping
QE1
QE2
QE3
QE4
QE5
Analog input 1 of the
Marking trip level
Warning level 0/4-20 mA >
Warning level activity
Response at warning level
Warning delay
See
Table 5-14
Marking warning level
0/4-20 mA >
Event
- Warning level
0/4-20 mA >
Trip level 0/4-20 mA <
Trip level activity
Response at trip level
Trip delay
Event
See
Table 5-13
- Trip level
Marking trip level
Warning level 0/4-20 mA <
Warning level activity
Response at warning level
Warning delay
See
Table 5-14
Marking warning level
0/4-20 mA <
Event
- Warning level
0/4-20 mA <
analog module
(AM Input 1)
Hysteresis
