Outputs
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
6-11
6.5 Analog module output
Description
You can expand basic unit 2 with an analog output using the analog module.
The corresponding function block allows every analog value (2 byte/1 word)
in SIMOCODE pro to be output as a 0/4 A - 20 mA signal, for example, on a
connected pointer instrument. By activating the function block via the
"Assigned analog output value" plug with any integer value between 0 and
65535, an equivalent analog signal of 0 to 20 mA or 4 to 20 mA will be sent
to the output terminals of the analog module.
Note
The "AM Output" function block can only be used if the analog module (AM)
is connected and configured in the device configuration!
Schematic

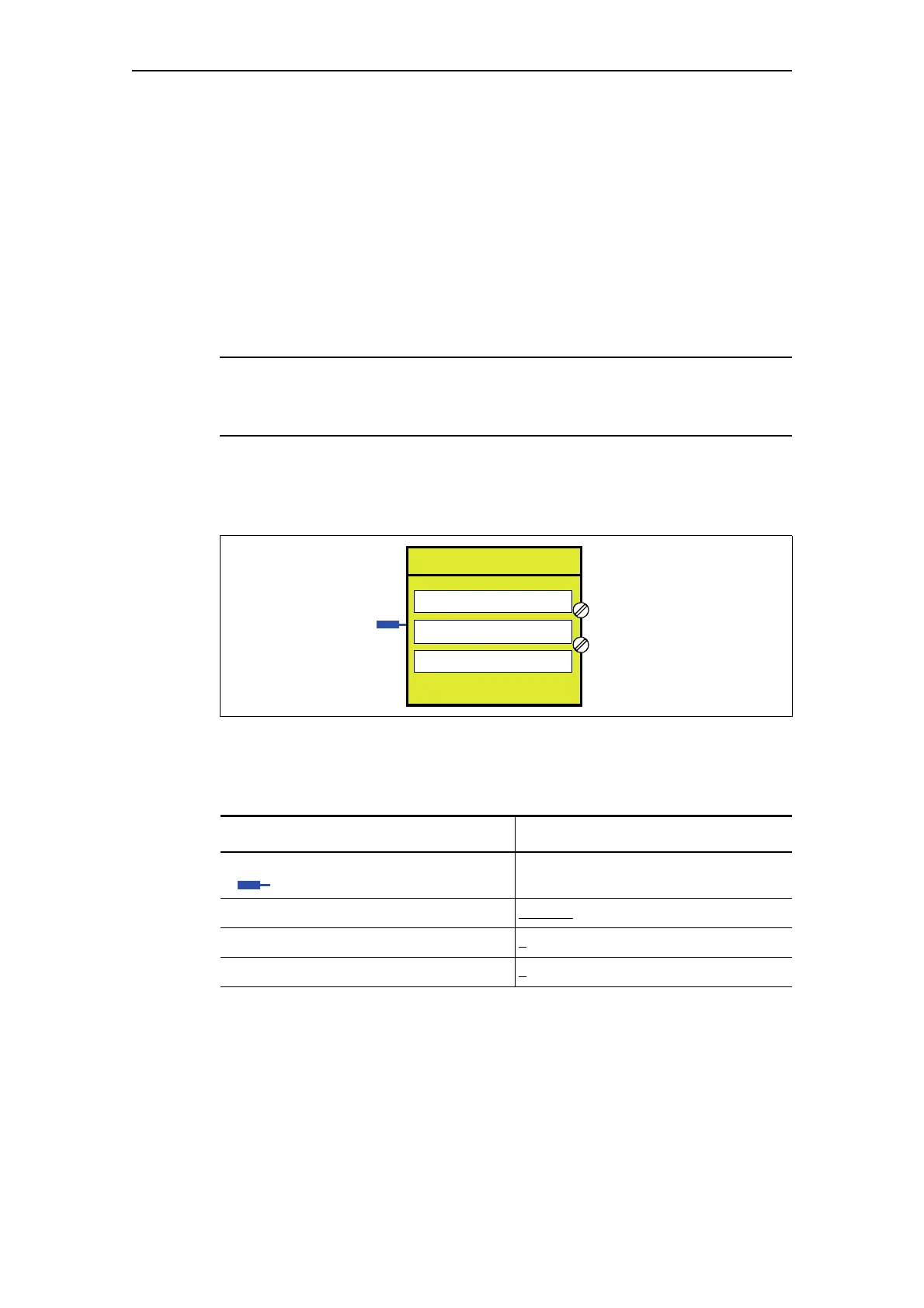

The following schematic shows the "AM Output" function block:
Fig. 6-7: Schematic of the "AM Output" function block
Settings
Table 6-5: "Analog module output" settings
Signal/value Range
Assigned analog output value Any value (1 word/2 bytes) in
SIMOCODE pro
Output signal 0-20 mA
or 4-20 mA
Start value of value range 0
- 65535
End value of value range 0 - 65535
OUT+
AM Output
OUT-
Assigned
Start value of value range
End value of value range
Output signal
analog output value
