Outputs
SIMOCODE pro
6-16 GWA 4NEB 631 6050-22 DS 03
6.6 Cyclic Send
Description
The "Cyclic Send" function blocks allow you to specify the information to be
transferred cyclically to the automation system via PROFIBUS DP.
"Cyclic Send" function blocks consist of:
• Eight bits each (two bytes, byte 0 and byte 1 for binary information)
• Four words (= eight bytes, byte 2 to 9 for four analog values, freely
parameterizable)
• One output to PROFIBUS DP each.
Overall there are three
"Cyclic Send" function blocks (0, 1, 2/9).
Schematic
The following schematic shows the "Cyclic Send" function blocks:

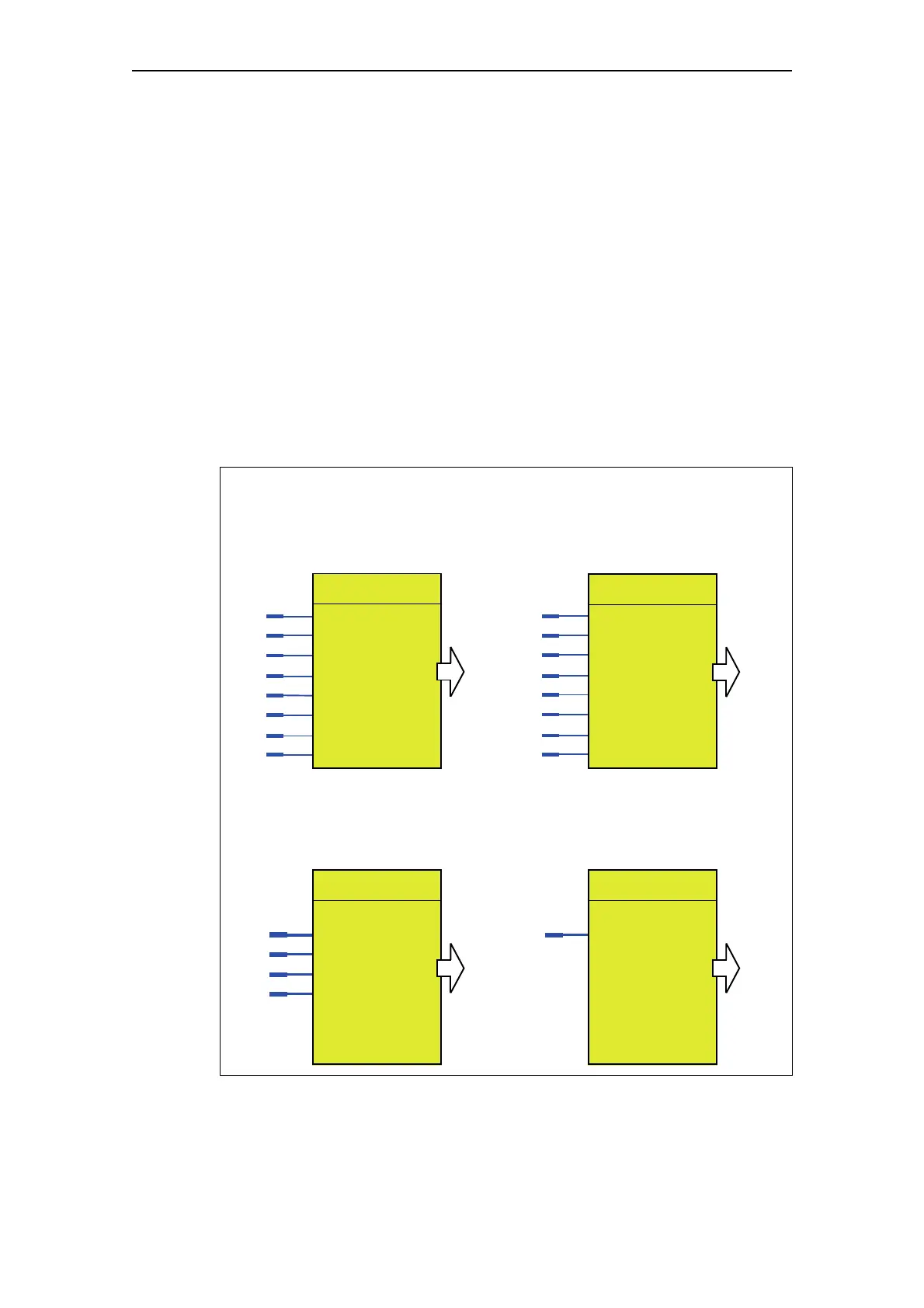

Fig. 6-13: Schematic of the "Cyclic Send" function blocks
Cyclic Send 2/9
DP
Byte 4/5
Byte 6/7
Byte 8/9
Byte 2/3
to
PROFIBUS DP
Basic type 1 (for BU 2)
Cyclic Send 2/9 with four words (eight bytes)
for up to four analog values
Bit 1
Bit 2
Bit 3
Bit 4
Bit 5
Bit 6
Bit 7
Cyclic Send 0
DP
to PROFIBUS DP
Bit 0
Byte 0
Bit 1
Bit 2
Bit 3
Bit 4
Bit 5
Bit 6
Bit 7
Cyclic Send 1
DP
to PROFIBUS DP
Bit 0
Byte 1
Cyclic Send 2/9
DP
to
PROFIBUS DP
Byte 2/3
Basic type 2 (for BU1 and BU2)
Basic type 1 (for BU 2)
Basic type 2 (for BU1 and BU2)
Basic type 1 (for BU 2)
Basic type 2 (for BU1 and BU2)
Cyclic Send 0 with eight bits
Cyclic Send 1 with eight bits
for binary information
for binary information
Cyclic Send 2/3 with one word (two bytes)
for one analog value
