Siemens SIMOCODE pro System Manual

Inputs
SIMOCODE pro
7-2 GWA 4NEB 631 6050-22 DS 03
7.1 Introduction
Description
SIMOCODE pro has various inputs. These are represented by the different
function blocks in SIMOCODE pro. These function blocks are the ingoing
SIMOCODE pro interfaces. Within SIMOCODE pro, these inputs are
represented as sockets on the corresponding function blocks and can be
assigned via connections to any functions. Inputs can be:
• Input terminals , located on the outside of the basic units and digital
modules
• Buttons on the operator panel (one Test/Reset button, four freely-
parameterizable buttons), and basic units (one Test/Reset button)
• Temperature module inputs
• Analog module inputs
• Inputs from PROFIBUS DP (cyclic and acyclic).
Schematic

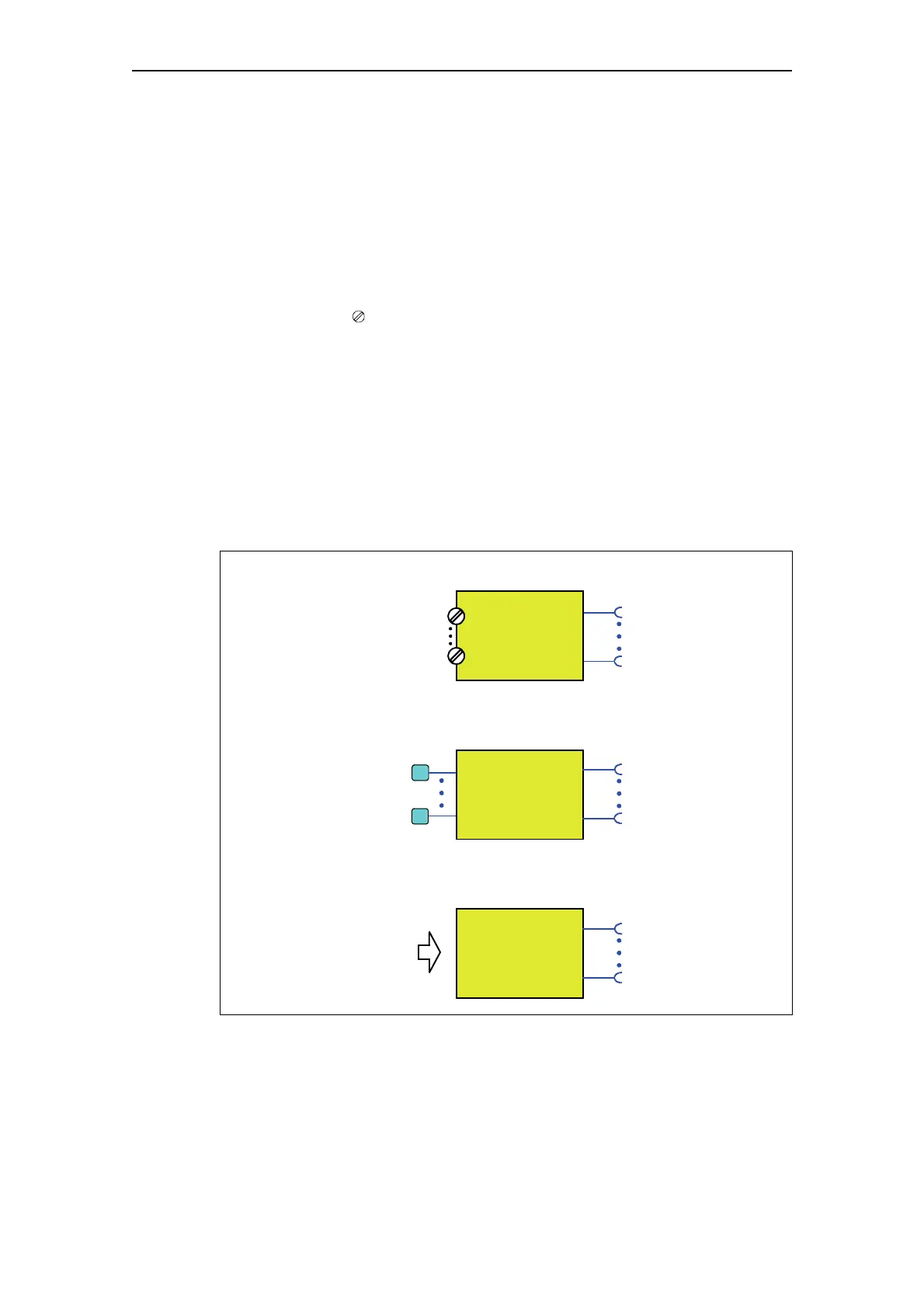

The following schematic shows a general representation of the input types:
Fig. 7-1: General representation of the input types
SIMOCODE pro
DP
PROFIBUS DP
Input
Input
Input
Input terminals
SIMOCODE pro
SIMOCODE pro
Buttons
- Control commands
- Test/Reset
Sockets
Sockets
Sockets

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
