Inputs
SIMOCODE pro
7-12 GWA 4NEB 631 6050-22 DS 03
7.5 Temperature module inputs
Description
SIMOCODE pro has a "TM Inputs" function block with three analog sockets
corresponding to the three sensor measuring circuits of the temperature
module. The temperature (in K) of the three measuring circuits can be read
from these sockets and processed internally. An additional analog socket
always supplies the maximum temperature of all three measured
temperatures. Furthermore, the two binary sockets of the function block
represent the status of the sensor measuring circuits. The temperatures can
be processed internally and/or transmitted cyclically to the automation
system via the "Cyclic Send" function blocks.
Note
The "TM Inputs" function block can only be used if the temperature module
(TM) is connected and configured in the device configuration!
Schematic

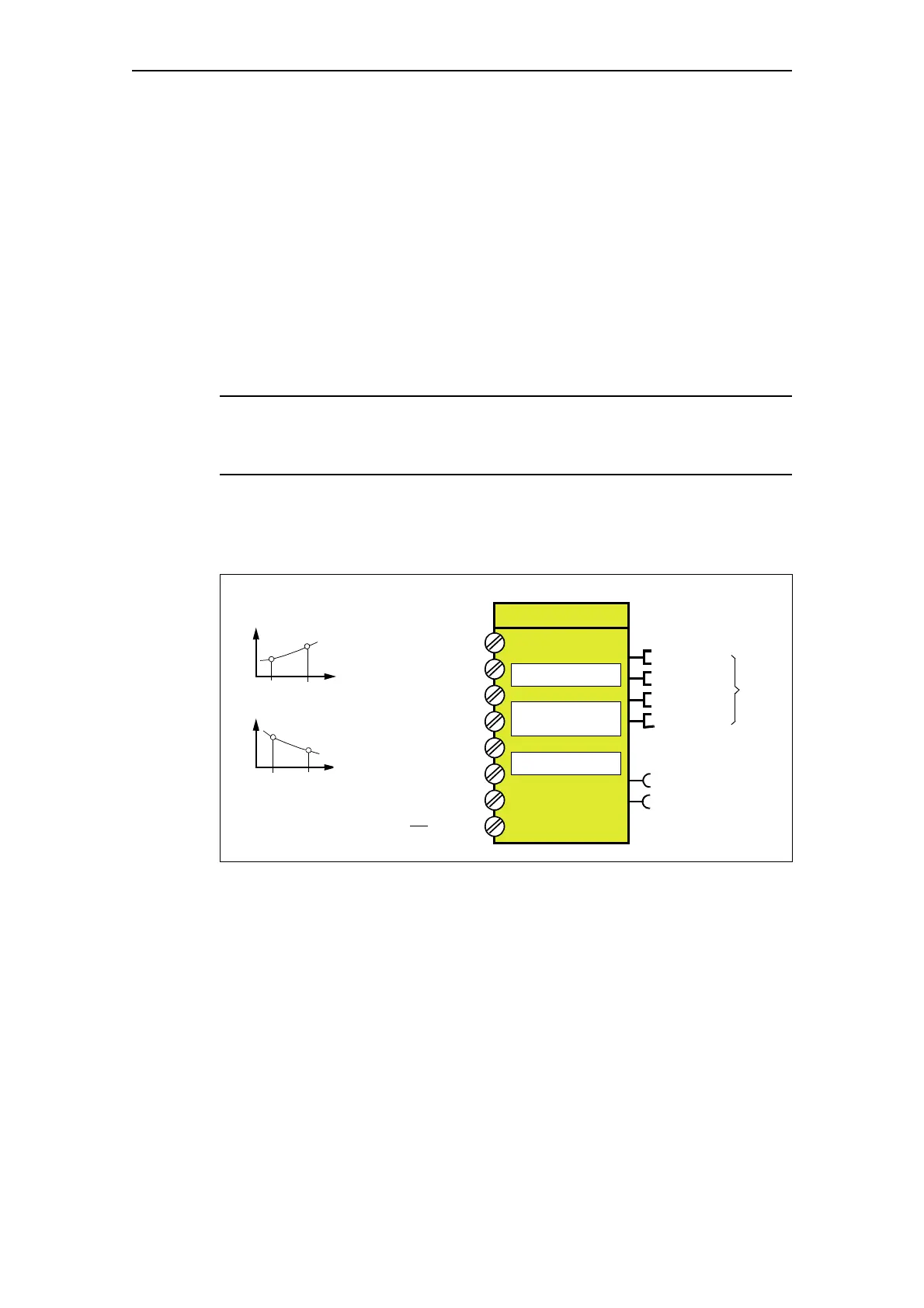

The following schematic shows the "TM Inputs" function block:
Fig. 7-9: Schematic of the "TM Inputs" function block
Notes on wiring
You can connect up to three 2-wire or 3-wire temperature sensors. You will
find further information in Chapter 13.3 "Wiring".
TM Inputs
Max. temperature
Temperature 1
Temperature 2
Temperature 3
Event
- Sensor fault
u
R
1
2
PT/KTY
u
R
1
2
NTC
- Out of range
1T3
2T3
3T3
1T2
2T2
3T2
50
51
52
53
54
55
Inputs:
T1
56
T1
57
Sensor type
Response at sensor fault/
Out of range
Number of active sensors
Terminal
numbers
Range:
0 ... 65535 K
