Mounting, wiring, interfaces
SIMOCODE pro
13-30 GWA 4NEB 631 6050-22 DS 03
13.3.3 Current measuring modules
Select a suitable current measuring module for measuring current,
depending on the motor current size:
• Through-hole technology up to 200 A: The cables of the three phases are
passed through the through-hole openings.
• Bus connection system from 20 A to 630 A, also for direct connection to
Siemens contactors.

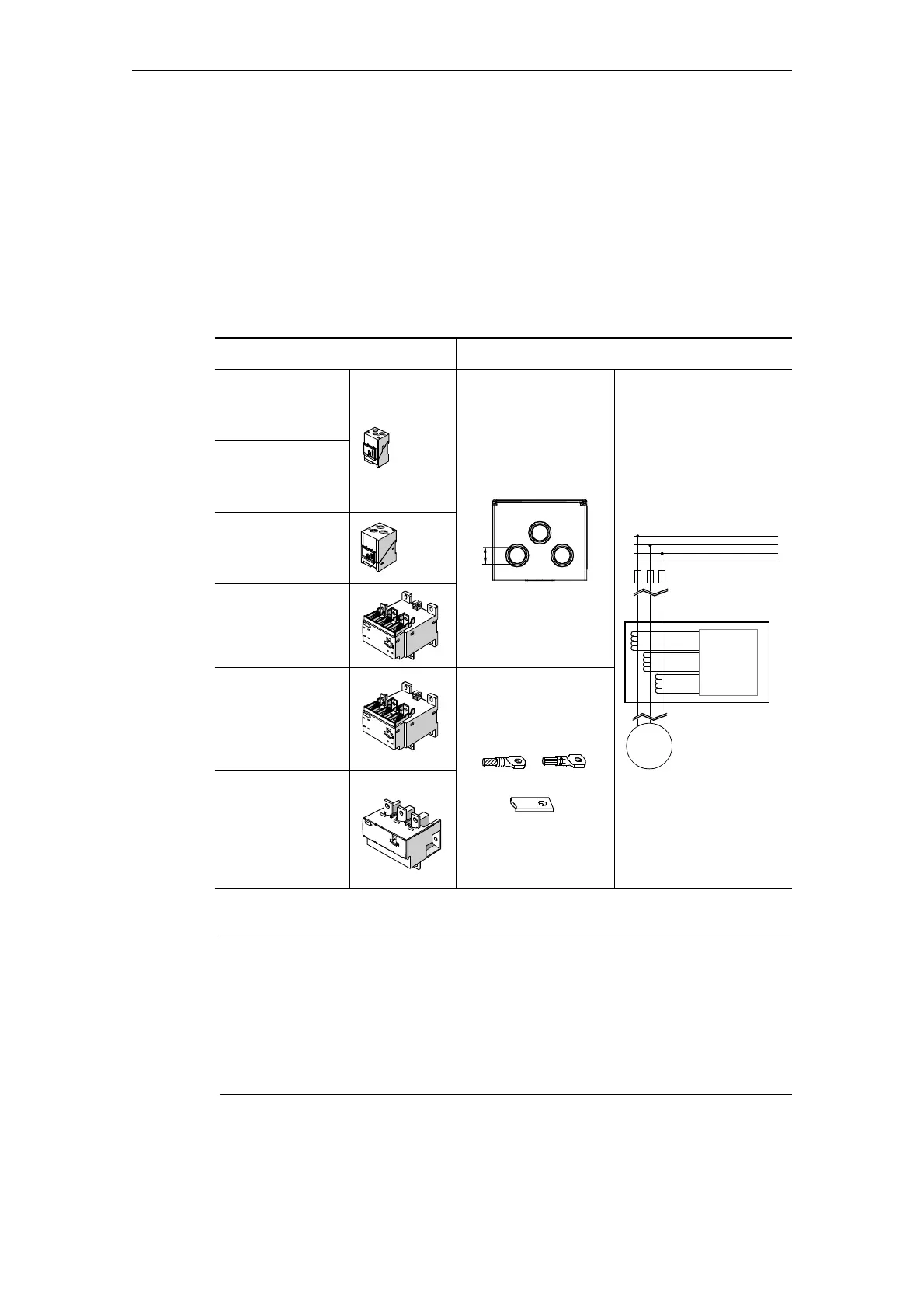

The following table shows the various current measuring modules:
Notice
When connecting or routing the cables of the individual phases of the main
circuit, ensure correct assignment of the phases on the current measuring
module and correct routing direction!
Observe the information in the operating instructions!
You can find the operating instructions for SIMOCODE pro at:
www.siemens.com/industrial-controls/manuals.
Current measuring module Main circuit connection
3UF7100-1AA00-0
0.3 A - 3 A
Ø through-hole
openings: 7.5 mm
Through-hole
technology
3UF7101-1AA00-0
2.4 A - 25 A
Ø through-hole
openings: 7.5 mm
3UF7102-1AA00-0
10 A - 100 A
Ø through-hole
openings: 14 mm
3UF7103-1AA00-0
20 A - 200 A
Ø through-hole
openings: 25 mm
3UF7103-1BA00-0
20 A - 200 A
Conductor cross
section:
16 mm² - 95 mm²,
AWG 5 to 3/0
Bus connection
system
3UF7104-1BA00-0
63 A - 630 A
Conductor cross
section:
50 mm² - 240 mm²,
AWG 1/0 kcmil to
500 kcmil
Table 13-13: Current measuring modules
L1
L2
L3
N
L1 L2 L3
T1 T2 T3
M
~
3
